Majesty

General Specifications

Insert Official Number 669033 in the Vessel Number box and click “search”

NameMAJESTY
StyleYacht
BuilderBlount Marine
HullDisplacement
USCG CertifiedYES
USCG Dry Dock31 May 2026
Passenger Capacity238
Gross Tonnage92
Net Tonnage65
Built1984
LOA145′
LWL113′
Beam31′
Hull Depth9′
Freeboard3.4′
DraftWater 6′ Air Draft: 44.75′
Displacement222.89 Long tons
U.S.C.G. Official Number669033
Route CertificationLakes, Bays and Sounds not more than 1 mile from land
Hull MaterialSteel
Deckhouse MaterialSteel
Tank CapacitiesFuel: 3000 gallons
Potable water: approx. 1500 gallons
Waste: 1500 gallons
Lube oil: N/A

ACCOMODATIONS AND LAYOUT

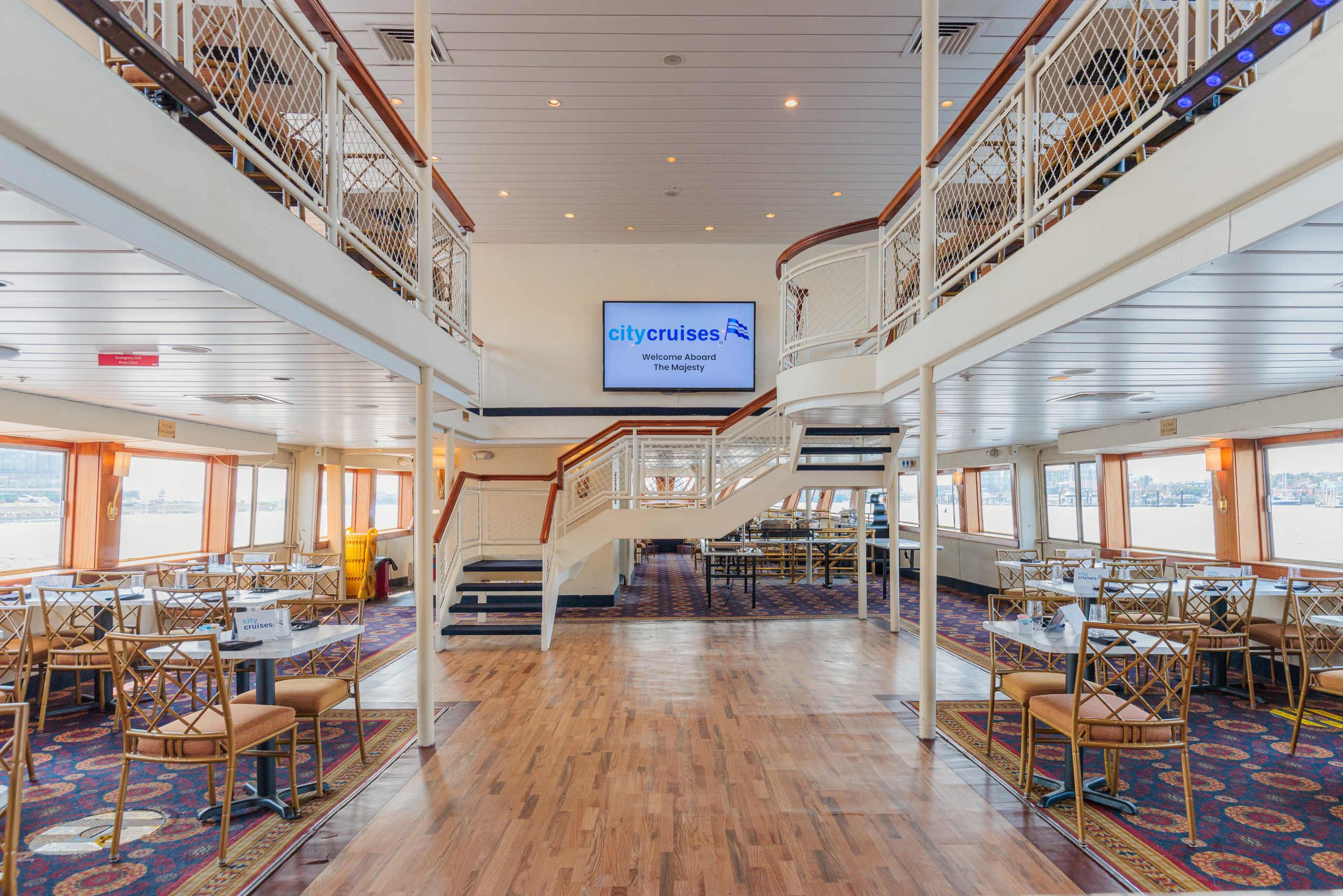

The vessel is arranged with boarding at the stern port and starboard sides of the 01 deck or main deck. Also, there are cargo doors port and starboard sides of the main deck that can be used as boarding doors. The main deck salon is open with heads located forward in the hold deck. The beverage bar is located aft. There is an Atrium to the 01 deck. The 01 deck salon is open with beverage bar located forward with the restrooms located forward of the bar. There is an open Atrium in the center of the deck open to the main deck. The 01 bow weather deck is open air. There is an interior stairwell between the main deck and 01 deck. The main deck and 01 deck is climate controlled. Access to the OB/observation deck is on the stern. The OB/Observation deck is an open air deck with a raised platform centerline aft of mis-ship that can be used for wedding ceremonies or other events.

WHEELHOUSE

  • Furuno FA-150 Class A AIS
  • Raymarine Chart Plotter Model: E70013 Series C125
  • Rigid Globemaster C453 Compass
  • Standard Horizon VLH-3000 Loud Hailer
  • Air Horn
  • 2-Furuno Model 1751 mk/1935 Radars
  • ICOM IC-M504 VHF Radio
  • ICOM IC-M330 VHF Radio
  • 1 Pneumatic Windshield wiper
  • Ships Fog Bell
  • Bilge Alarm Panel
  • ZF Marine 9110 Series throttle and gear controls
  • Starboard Wing station
  • Wagner Model B-3 helm pump
  • Eaton(Vickers) hydraulic model V10-1P5P steering pump
  • Steering wheel-manual pump and electric engine driven non-follow up steering
  • Wagner RAI at helm stations and wing
  • Jabsco-Xylem Model 41020-1120 spotlight

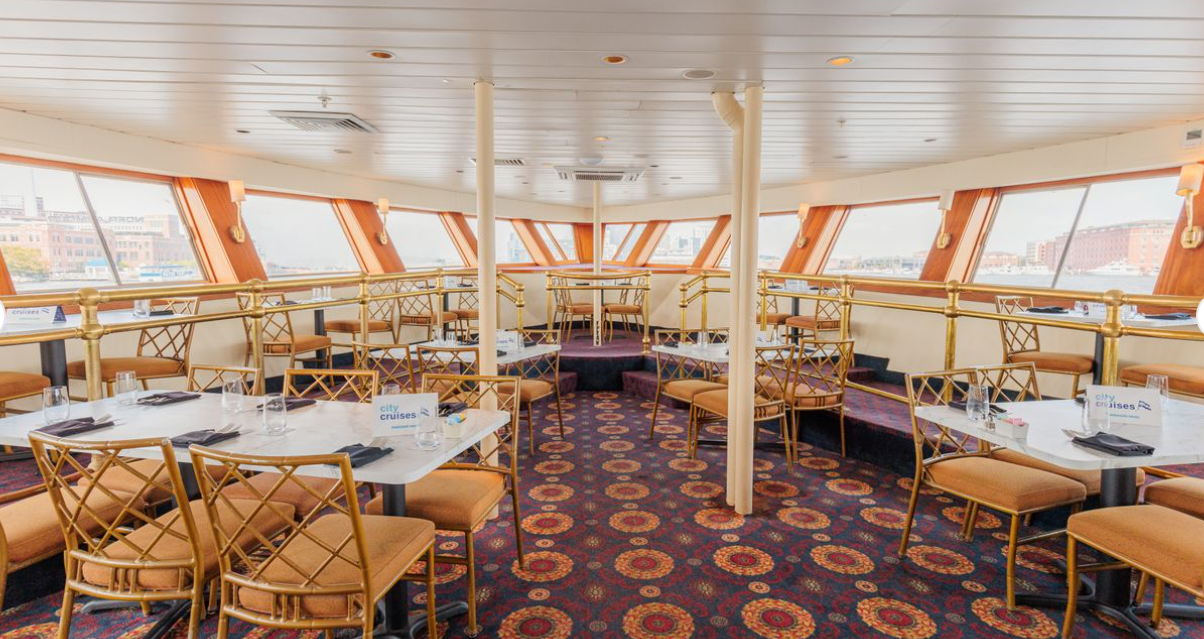

MAIN DECK SALON

  • Port & Starboard Cargo/Embarkation doors midships
  • Dance floor
  • Beverage bar located stern
  • Bow service station
  • Raised bow seating
  • Carpeted deck
  • Climate controlled

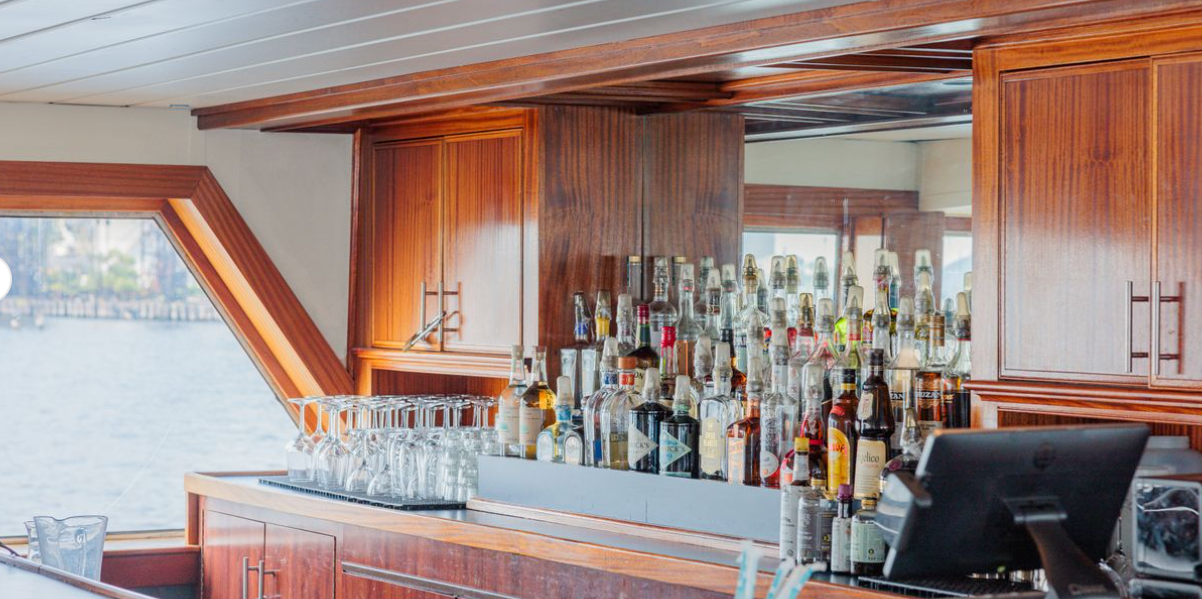

MAIN DECK BEVERAGE BAR

  • Laminate bar tops
  • Under counter beverage cooler
  • 2 stainless steel sinks
  • 1 stainless steel ice bin w/cold plate
  • Lockable wall cabinets
  • Liquor Display
  • Lockable wall cabinet
  • Climate controlled

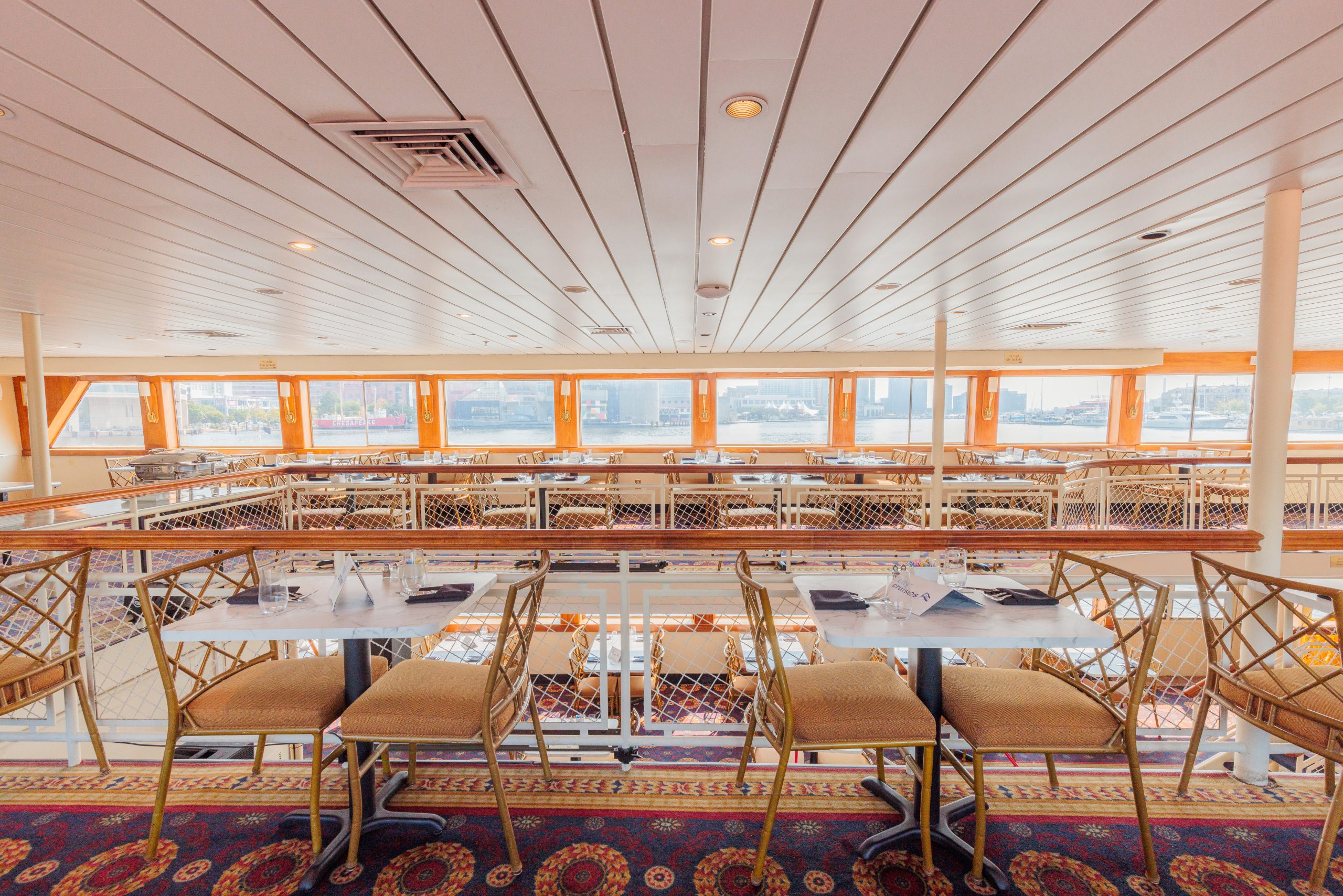

01 DECK SALON

  • Dance floor located aft in salon centerline
  • Boarding gates located on stern weather deck port & starboard sides
  • Service station located forward in salon
  • Beverage Bar located forward
  • Men’s & women’s restroom
  • Climate controlled

01 DECK BEVERAGE BAR

  • Laminate bar top
  • 1 stainless steel hand sink
  • 2 stainless steel ice bins
  • 1 stainless steel dump sink
  • Under counter beverage cooler

MAIN DECK WEATHER DECK (STERN)

  • Boarding gates port & starboard sides
  • Stairs leading to 01 & OB decks
  • Centerline entrance door to main deck salon

01 WEATHER DECKS

  • Bow Deck: Open space, Danforth anchor and ground tackle, 2 staircases leading up to OB deck, port & starboard entrance doors to 01 deck salon
  • Stern Deck: Open space, stairs to main deck and OB deck, port & starboard entrance doors to 01 deck salon

OB/OBSEVATION DECK

  • Pilothouse & wing station

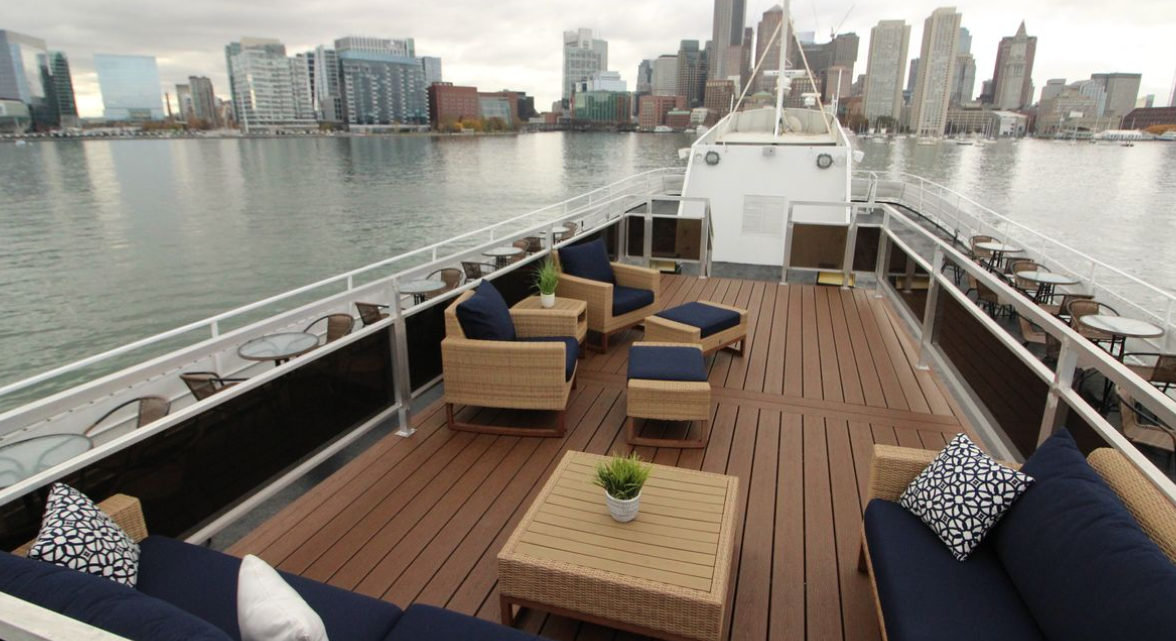

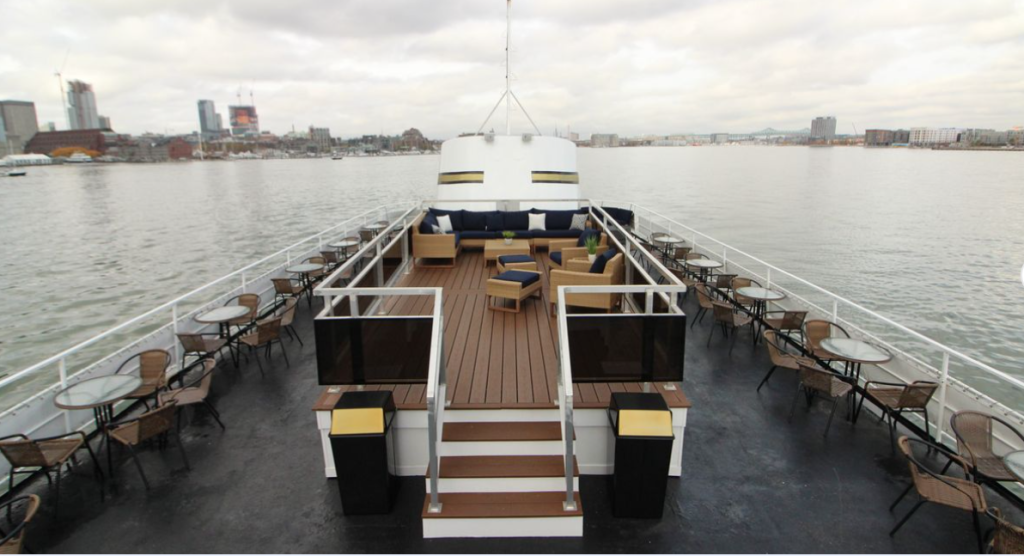

  • Open air deck
  • Raised platform centerline for wedding ceremonies, lounge or VIP area

ELECTRICAL SYSTEM

  • 2) Detroit Diesel 671’s 125kw generators, 208vac 3phase, 24vdc starters, Analog gauges and controls,  Keel cooled, dry exhaust.
  • 24vdc house batteries, 24vdc starting batteries
  • LaMarche constavolt
  • Shorepower connection 200amp
  • 24dc emergency lighting
  • 24dc battery distribution panel with 4 guest battery isolation switches
  • Custom Blount Marine Switch Gear
  • Aqua Signal Series 55 Navigation lights, port & starboard running lights, masthead, anchor and stern light.

GALLEY (BELOW MAIN DECK)

  • 3 compartment stainless steel sink
  • Stainless steel handwashing sink
  • Stainless steel dishwashing table
  • 2 Vulcan convection ovens
  • Stand up freezer
  • Stainless steel worktable

HEADS

  • Main deck head is located forward down a stairwell into the hold area with toilet, sink & vanity, toilet paper dispenser, paper towel dispenser, mirror
  • 01 Deck heads:
    • Ladies room,  2 stalls, 1 sink, toilet paper and paper towel dispensers
    • Men’s room 1 stall and toilet, 1 urinal, 1 sink, toilet paper and paper towel dispenser
  • Toilets are seawater flush

HULL, SUPERSTRUCTURE AND DECKS

  • 5/16” Hull plate from keel out 8’, ¼” hull plate from 5/16” to chine
  • ¼” side shell plate
  • 7 Watertight compartments formed by 6 transverse bulkheads
  • Deck fittings:
    • Electrical
    • Waste
    • Water
    • Fuel
  • 175lb Danforth anchor
  • 2 boarding gates port and starboard sides of main deck stern weather deck
  • 2 boarding gates port and starboard sides of 01 deck stern weather deck

MECHANICAL EQUIPMENT AND DETAILS

  • 2) Detroit Diesel 8V92’s, analog gauges, 24vdc, keel cooled, dry exhaust, racor fuel filters
  • Twin disc marine gears: Model MG-509, 2.95:1 gear ratio
  • ZF Marine 9110 Series Throttle and Gear controls
  • Vickers engine driven hydraulic steering pump
  • Compression shaft seals
  • Stainless steel Aquamet shafts
  • Water heater
  • Electric Fire/bilge pump
  • Engine driven bilge/fire pump
  • Air compressor

SAFETY EQUIPMENT

  • 263 type I adult size PFD’s
  • 27 type I child size PFD’s
  • 3-30” Life rings 1 w/light, 1 w/painter line
  • 6 Fire extinguishers, 1) 10 B-C, 3) 2-A, 2) 40-B-C
  • Pyrotechnic distress signals, 3 smoke, 3 hand held flares
  • 4 fire stations w/50’ of 1.5” hose
  • Galley: hood foam fire suppression system
  • Atrium: Water spray sprinkler system
  • Fire axe
  • 175lb Danforth anchor
  • Man overboard recovery ladder
  • 2) Fire pumps

FINISH

  • Exterior coating: Epoxy coating
  • Exterior decks: Epoxy coating with non-skid aggregate
  • Interior decks: carpeted, wallpaper on bulkheads. wood trim around windows
  • Ceilings are 2×2 grid with drop in panels
  • Heads are tiled decks
