General Specifications
Insert Official Number 683143 in the Vessel Number box and click “search”
| Name | Inner Harbor Spirit |
| Style | Yacht |
| Builder | Blount Marine |
| Hull | Displacement |
| USCG Certified | 06 March 2029 |
| USCG Dry Dock | DUE |
| Passenger Capacity | 454 Protected Waters. 191 when operating on Partially Protected Waters, Lakes, Bays and Sounds. |
| Gross Tonnage | 96 |
| Net Tonnage | 69 |
| Built | 1985 |
| LOA | 145′ |
| LWL | 113′ |
| Beam | 31′ |
| Hull Depth | 4′ |
| Freeboard | 3.4′ |
| Draft | Water 6′ Air Draft: 44.75′ |
| Displacement | 217.74 Long tons |
| U.S.C.G. Official Number | 683143 |
| Route Certification | Lakes, Bays and Sounds not more than 1 mile from land |
| Hull Material | Steel |
| Deckhouse Material | Steel |
| Tank Capacities | Fuel: 3000 gallons Potable water: approx. 1500 gallons Waste: 2400 gallons Lube oil: N/A |
ACCOMODATIONS AND LAYOUT
The vessel is arranged with boarding at the stern port and starboard sides of the 01 deck or main deck. Also, there are cargo doors port and starboard sides of the main deck that can be used as boarding doors. The main deck salon is open with heads located aft in the salon. The beverage bar is located aft on the port side with a service station on the port side behind bar. The 01 deck salon is open with beverage bar located forward with the restrooms located on either side of the bar. The 01 bow weather deck is open air. There is an interior stairwell on the port side between the main deck and 01 deck. The main deck and 01 deck is climate controlled with 8-5ton Carrier HVAC/heat pump units. Access to the OB/observation deck is on the stern. The OB/Observation deck is open air with a covered beverage bar located behind the pilot house.

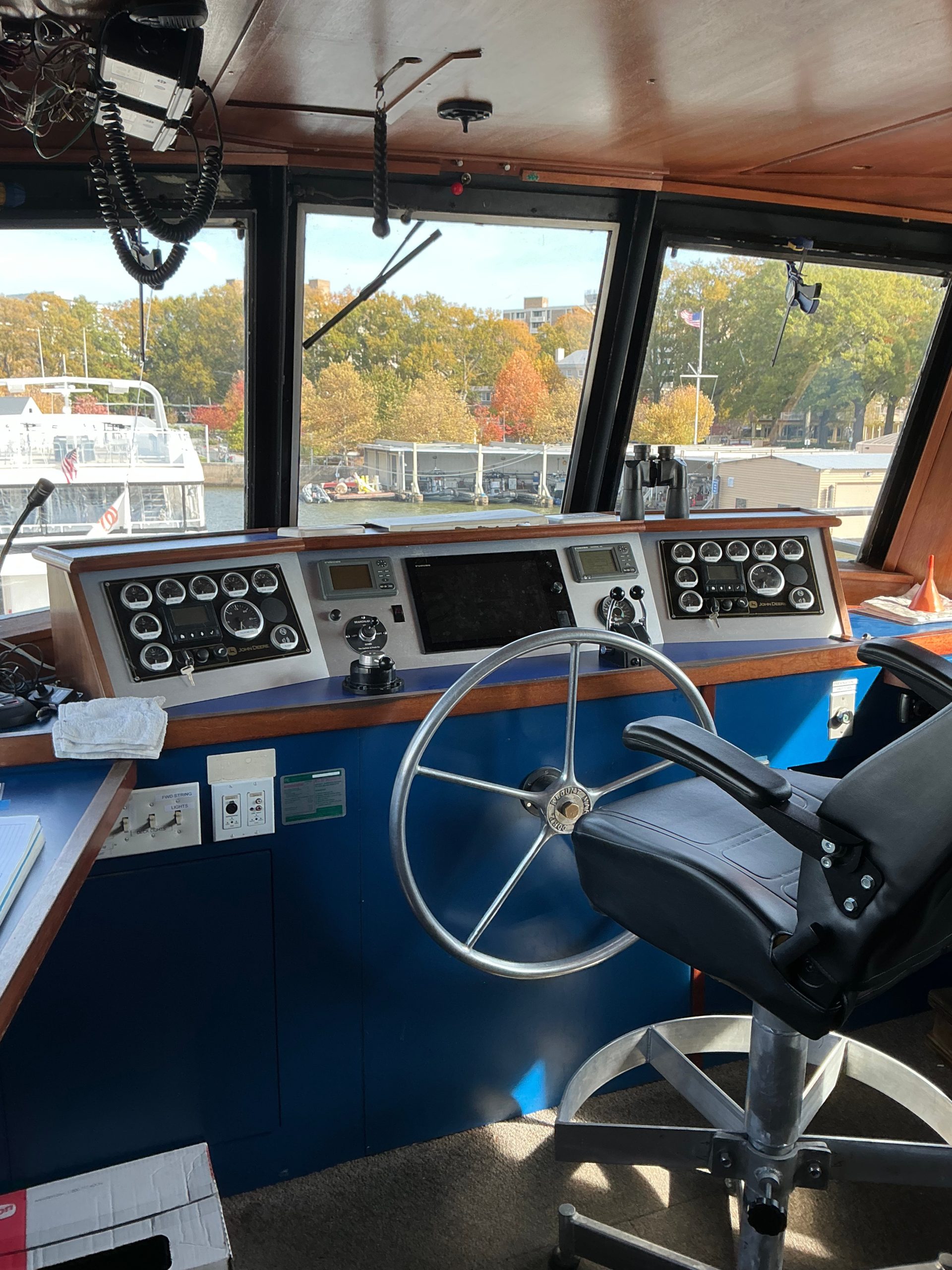

WHEELHOUSE
- Furuno FA-150 Class A AIS
- Furuno TZT Series Chart Plotter
- Ritchie Navigation Globemaster Series B-453 Compass
- Standard Horizon VLH-3000 Loud Hailer
- Kahlenburg D-4A Air Horn
- Furuno DRS Series Radar
- 2 ICOM IC-M506 VHF Radios
- 1 Pneumatic Windshield wiper
- Ships Fog Bell
- Bilge Alarm
- John Deere Analog Gauge Package for Main Engines w/ Murphy Digital Power View Displays
- ZF Marine 9000 Series throttle controls. Includes smart backup throttle module
- Port & Starboard Wing stations
- Steering wheel-manual pump and electric engine driven non-follow up steering
- Wagner RAI at helm stations and wings
- Carlisle and Finch 125AC Series spotlight

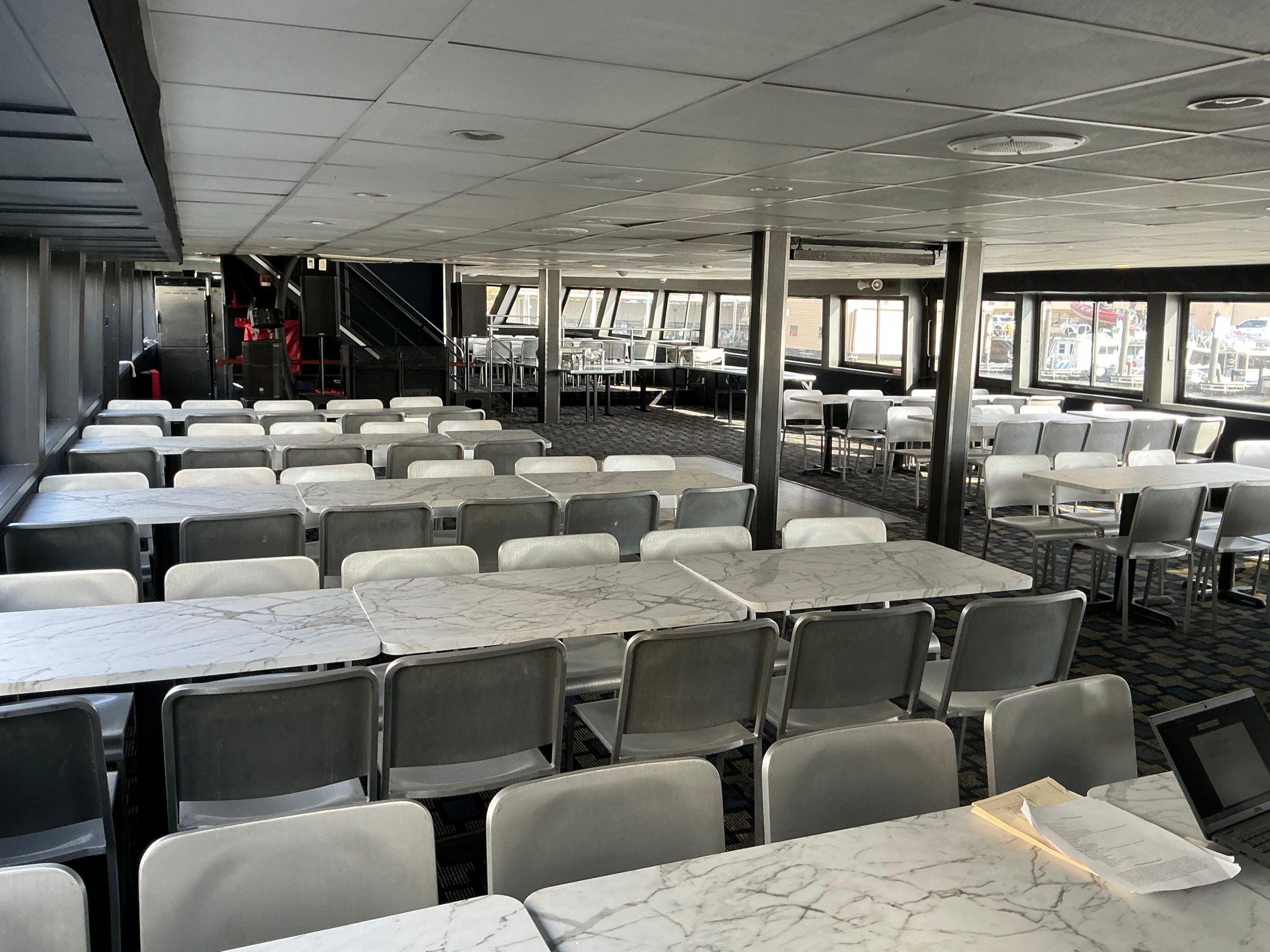

MAIN DECK SALON
- Port & Starboard Cargo/Embarkation doors midships
- Dance floor centerline midships
- ADA Restrooms men’s & women’s
- Beverage bar located stern port side
- Stern & bow service stations
- Raised bow seating
- Carpeted deck
- Climate controlled
MAIN DECK BEVERAGE BAR
- Quartz counter top with stainless steel drip rail
- 3 door Continental under counter beverage cooler
- 2 stainless steel sinks
- 1 stainless steel ice bin w/cold plate
- Lockable liquor display cabinet
- Lockable wall cabinet
01 DECK SALON
- Dance floor located aft in salon centerline
- Boarding gates located on stern weather deck port 7 starboard sides
- Service station located starboard forward in salon
- Beverage Bar located centerline forward in salon
- Men’s & women’s restroom
- Climate controlled
01 DECK BEVERAGE BAR
- Laminate bar top w/stainless steel drip rail
- 1 stainless steel hand sink
- 2 stainless steel ice bins
- 1 stainless steel dump sink
- 2 door True under counter beverage cooler
- Lockable liquor display
- Lockable wall cabinets
MAIN DECK WEATHER DECK (STERN)
- Boarding gates port & starboard sides
- Stairs leading to 01 & OB decks
- Centerline entrance door to main deck salon
01 WEATHER DECKS
- Bow Deck: Open space, Danforth anchor and ground tackle, 2 staircases leading up to OB deck, port & starboard entrance doors to 01 deck salon
- Stern Deck: Open space, stairs to main deck and OB deck, port & starboard entrance doors to 01 deck salon
OB/OBSEVATION DECK
- Pilothouse & wing stations
- Covered Beverage bar
- Perimeter bench seating
OB/OBSERVATION DECK BEVERAGE BAR
- Seating on 3 sides of the bar
- Bar totally undercover
- 1 Perlick 2 door reach in undercounter beverage cooler
- 1 stainless steel hand sink
- 1 stainless steel ice bin w/speed rail
- Quartz counter top w/stainless steel drip rail
ELECTRICAL SYSTEM
- 2) John Deere 6081AFM75 Tier 2 Generators installed in 2012, 150kw 208vac 3phase, 12vdc starters, Basler panel monitoring, controller and gauges. Port Hours: 9869, Starboard Hours: 9860. Hospital grade mufflers. Keel cooled, dry exhaust.
- Fernstrum keel coolers
- 2) Marathon MagnaMax DVR Series 150kw generators, Model: 431RSL4007, same running hours as above
- La Marche Model A40-100-24v-D3 battery charger for main engines and house batteries
- Meltric 200amp shorepower connection
- Shorepower connection is 480vac to 208vac stepdown transformer
- 24dc emergency lighting
- 24dc battery distribution panel with 4 guest battery isolation switches
- Custom Blount Marine Switch Gear
- Aqua Signal Series 55 Navigation lights, port & starboard running lights, masthead, anchor and stern light

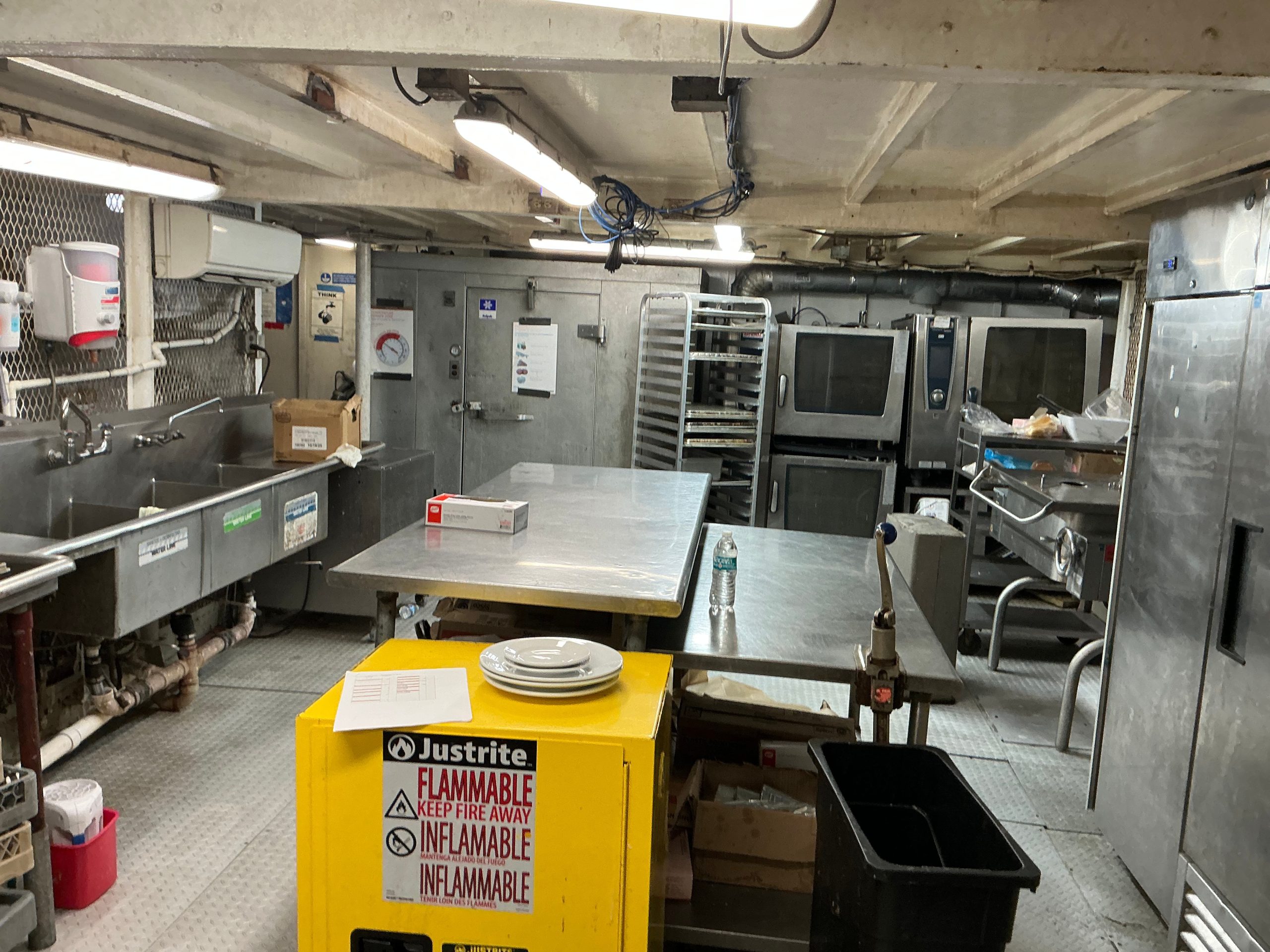

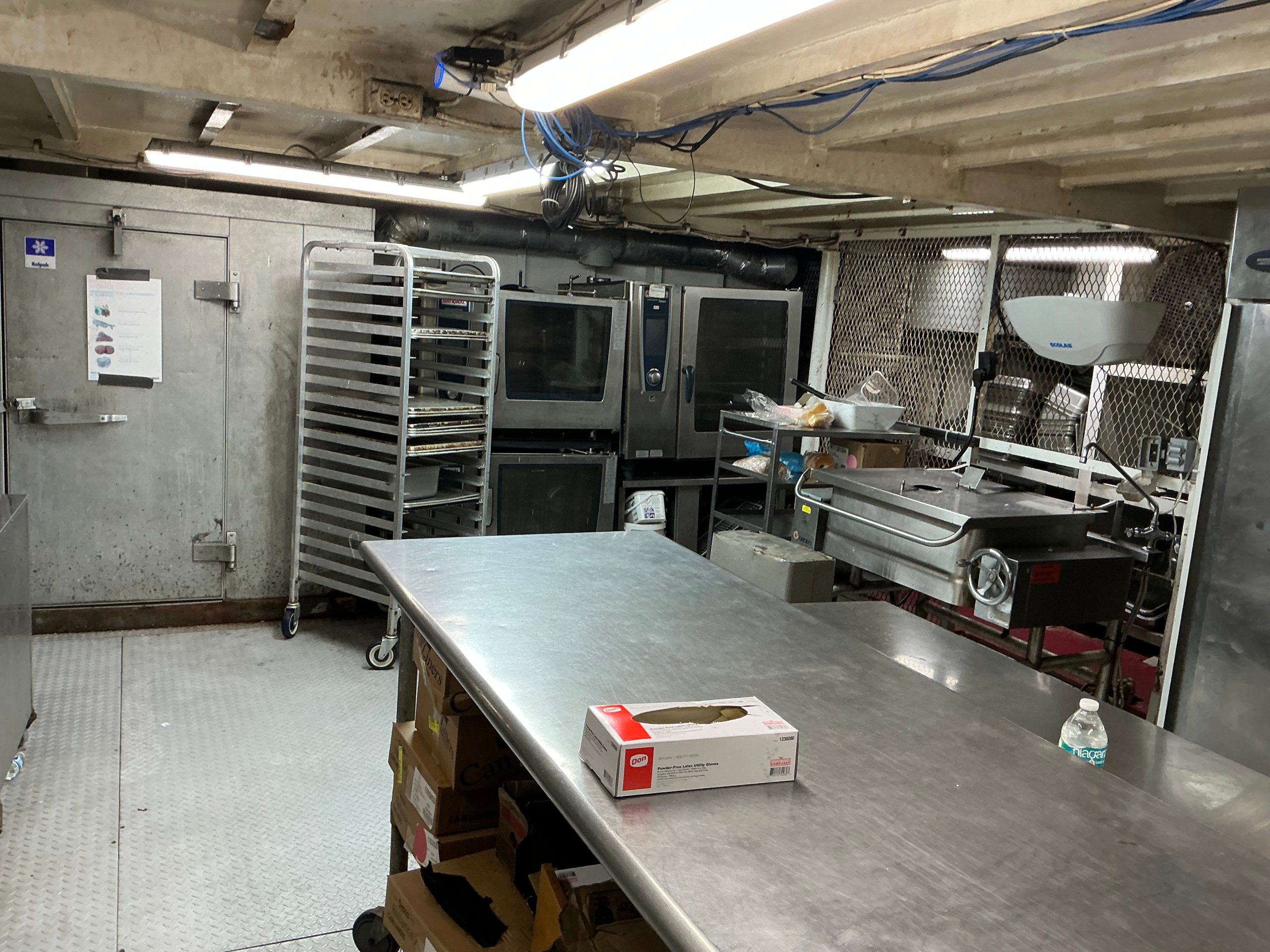

GALLEY (BELOW MAIN DECK)
- 3 compartment stainless steel sink
- Stainless steel handwashing sink
- Stainless steel dishwashing table
- 1 tilt skillet stainless steel
- 3 Rationale combi-ovens
- 1 Kolpak walk-in refrigerator
- 2 Hoshizaki stand up freezers
- 1 True stand up freezer
- 2 stainless steel work tables
HEADS
- Main deck heads are located on the main deck at the aft of the salon. Men’s room and ladies room. Each restroom has an ADA accessible stall.
- Ladies room, stainless steel partitions, 2 stalls, 2 sinks, toilet paper and paper towel dispensers.
- Men’s room, stainless steel partition, 1 stall and toilet, 1 urinal, 2 sinks, toilet paper and paper towel dispenser.
- 01 Deck heads:
- Ladies room, stainless steel partitions, 2 stalls, 1 sink, toilet paper and paper towel dispensers
- Men’s room, stainless steel partition, 1 stall and toilet, 1 urinal, 1 sink, toilet paper and paper towel dispenser.
- Toilets are seawater flush
HULL, SUPERSTRUCTURE AND DECKS
- 5/16” Hull plate from keel out 8’, ¼” hull plate from 5/16” to chine
- ¼” side shell plate
- 7 Watertight compartments formed by 6 transverse bulkheads
- Deck fittings:
- Electrical
- Waste
- Water
- Fuel
- 175lb Danforth anchor
- 2 boarding gates port and starboard sides of main deck stern weather deck
- 2 boarding gates port and starboard sides of 01 deck stern weather deck
MECHANICAL EQUIPMENT AND DETAILS
- 2) John Deere Model 6125AFM75 Tier 2 engines, installed in 2012; 340hp at 1800RPM’s; 24vdc; hospital grade mufflers, keel cooled dry exhaust. Murphy Power View displays in engine room. Starboard engine hours: 10241, Port Engine Hours: 10241.
- Twin disc marine gears: Model MG-5114HD 3:1 ratio
- Kobel dripless shaft seals
- ZF Marine 9000 Series Throttle and Gear controls
- Vickers engine driven hydraulic steering pump on port main engine
- Stainless steel Aquamet shafts
- Fernstrum keel coolers
- Raw water pump for toilets, Dayton pump Model: 1D872 with Armtrol 62 gallon pressure tank
- Potable water as 62 gallon pressure tank with Dayton pump Model: 1D872
- 50 gallon State water heater
- Carrier Air HVAC – pilothouse
- 8) Carrier Airhandlers HVAC heatpump units in salons
- Electric Fire pump
- Electric bilge pump and manifold system
- Manitowac Ice Machine Model SY1494N
- Lowes Kobalt air compressor Model 33204
SAFETY EQUIPMENT
- 460 type I adult size PFD’s
- 46 type I child size PFD’s
- 3-30” Life rings 1 w/light, 1 w/painter line
- 8 Fire extinguishers, 1) 10 B-C, 4) 2-A, 3) 40-B-C
- Pyrotechnic distress signals, 3 smoke, 3 hand held flares
- 4 fire stations w/50’ of 1.5” hose
- Fire axe
- 175lb Danforth anchor
- Man overboard recovery ladder
- 2) Electric Fire pumps
FINISH
- Exterior coating: Epoxy coating
- Exterior decks: Epoxy coating with non-skid aggregate
- Interior decks: carpeted, wallpaper on bulkheads
- Ceilings are 2×2 grid with drop in panels
- Heads are tiled decks with granite counter tops
