General Specifications
Insert Official Number 513351 in the Vessel Number box and click “search”
| Name | HARBOR EMPEROR |
| Style | Yacht |
| Hull | Displacement |
| USCG Certified | Yes |
| USCG Dry Dock | 31 July 2026 |
| U.S.C.G. Official Number | 513351 |
| Route Certification | Lakes, Bays and Sounds |
| Passenger Capacity | 499 |
| Gross Tonnage | 94 |
| Net Tonnage | 64 |
| Built | 1968 |
| LOA | 102′ |
| LWL | 83′ |
| Beam | 32′ |
| Hull Depth Depth | 7′ |
| Freeboard | 4′ |
| Draft | Water 8′ Air: 43′ |
| Displacement | 162.40 long tons |
| Hull Material | Steel |
| Deckhouse Material | Steel |
| Tank Capacities | Fuel: 3,800 gallons Waste: 1,000 gallons Potable Water: 1,000 gallons |
WHEELHOUSE
- Control station with engine instrumentation (i.e., tachometer, engine oil pressure, high water bilge alarm)
- Continental electric over hydraulic jog steering with hydraulic power assist
- Wing station – port and starboard
- Fog bell
- Air horn
- Lever operated searchlight
- 3 Jastram rudder indicators
- Windshield wiper
- Helm seat
- Symmetrix three station intercom system
- QSC model CX302V and CX 602 V amplifiers
SALON (Main Deck)
- 17 5’ fixed benches facing inboard
- 23 24” x 36” tables
- 20 chairs
BEVERAGE BAR (Main Deck)
- Stainless steel handwashing sink
- Stainless steel three compartment sink
- 2 glass drying racks
- 2 stainless steel ice bins
- True 34.5 cubic foot refrigerator
DECK (01 Deck)
- 24 5’ fixed benches facing inboard
- 18 24” x 30” tables
- 18 chairs

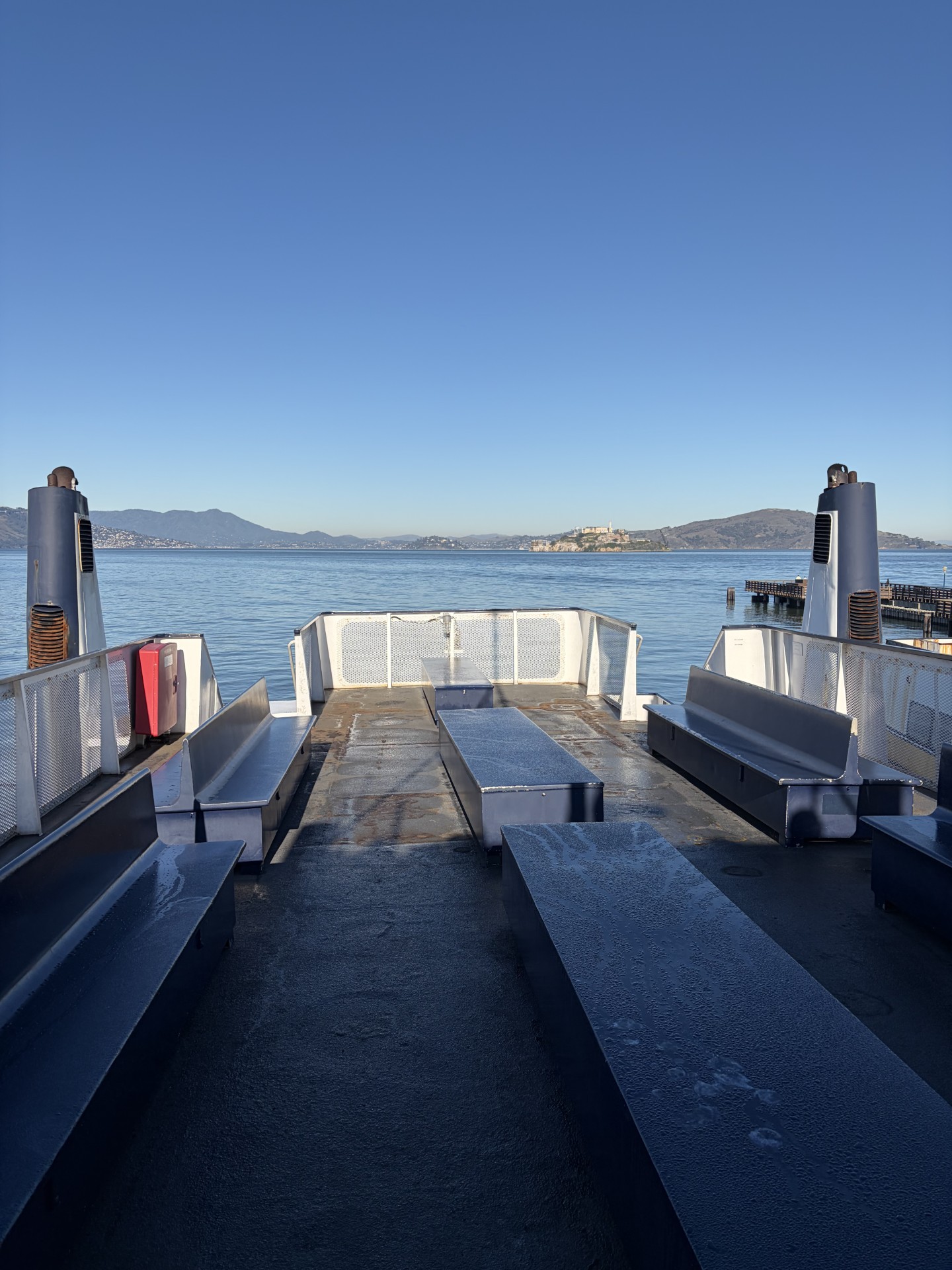

DECK (02 Deck)
- 10’ double sided bench
- 3 10’ double sided benches
ELECTRICAL SYSTEM
- 40 Kw Northern Lights generator powered by a Lugger model MP40C marine diesel engine – hours 18,126 February 2026
- 40 Kw Northern Lights generator powered by a Lugger model MP40C3F marine diesel engine – hours 10,360 February 2026
- Ship to shore power switch
- 60 AMP/ 240 VAC shore power service
- 120 VAC/12 VDC lighting
- 120 VAC duplex outlets
- Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)
HULL, SUPERSTRUCTURE AND DECKS
- 5/16” steel plate hull
- 3/16” steel plate deckhouse
- Seven compartments formed by six transverse bulkheads
- Boarding: amidships starboard & port
- Deck fittings:
- Electrical: Engine Room
- Waste: Amidships port
- Water: Amidships
- Fuel: Amidships
MECHANICAL EQUIPMENT AND ENGINE DETAILS
- Two MTU Detroit Disel Series 30 400 hp marine diesel engines
- Hours: 8,175 port, 22,799 starboard February 2026 – Port rebuilt in 2023
- ZF model W360 reduction gears
- Two 6” stainless steel propeller shafts
- Two 40” x 30” five blade propellers
- 3” Gorman Rupp pump black water system
- Two Quincy air compress and tanks
- Fuel transfer pump
- Two wall mount heaters on the main deck
- Forced fan ventilation with duct system on the main deck
- 30-gallon water heater
HEADS
The vessel is equipped with two heads and each contains:
- Female head contains 3 partitioned Microphor toilets, 2 sinks
- Male head contains 1 partitioned Microphor toilet, 2 urinals, 2 sinks
SAFETY EQUIPMENT
- One B-I fire extinguisher
- Four B-II fire extinguishers
- Pyrotechnic distress signals
- 3 fire stations including: UL approved rubber lined hoses with brass or bronze fittings, brass or bronze nozzles, brass or bronze hose bibs.
- Fire axe
- Danforth style anchor with chain and nylon line
- Electric windless
- Man overboard cradle
- First aid kit
FINISH
- Exterior coating: Coating
- Exterior decks: Nonskid
- Interior decks: Carpet
- Interior Bulkheads: Coating
REMARKS
The P/V HARBOR EMPEROR is in good condition.
EXCLUSIONS
N/A
Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
