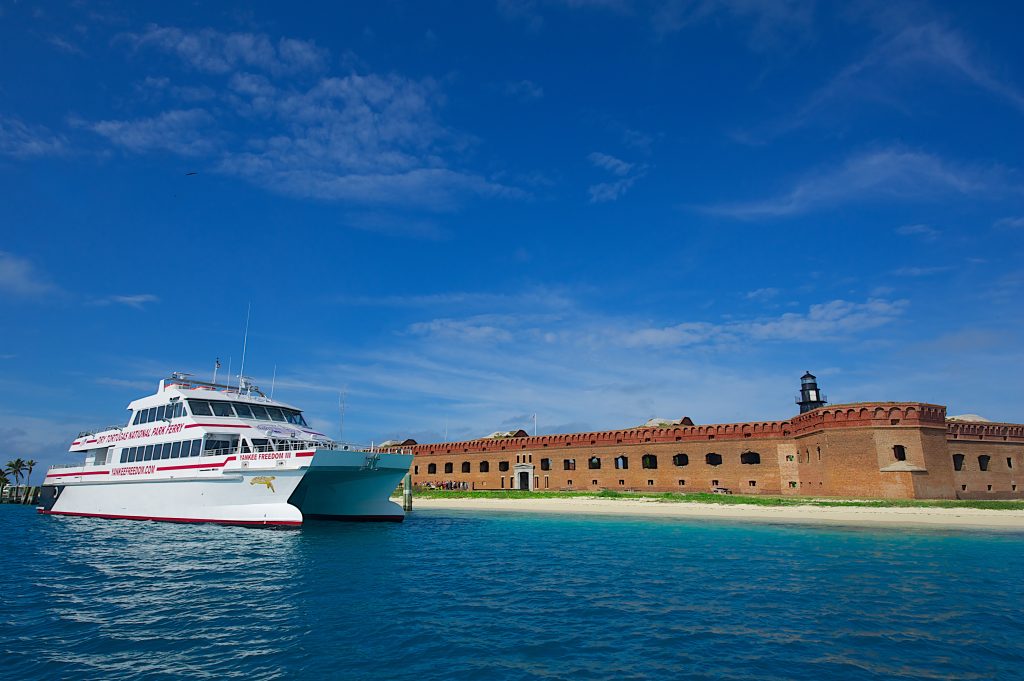

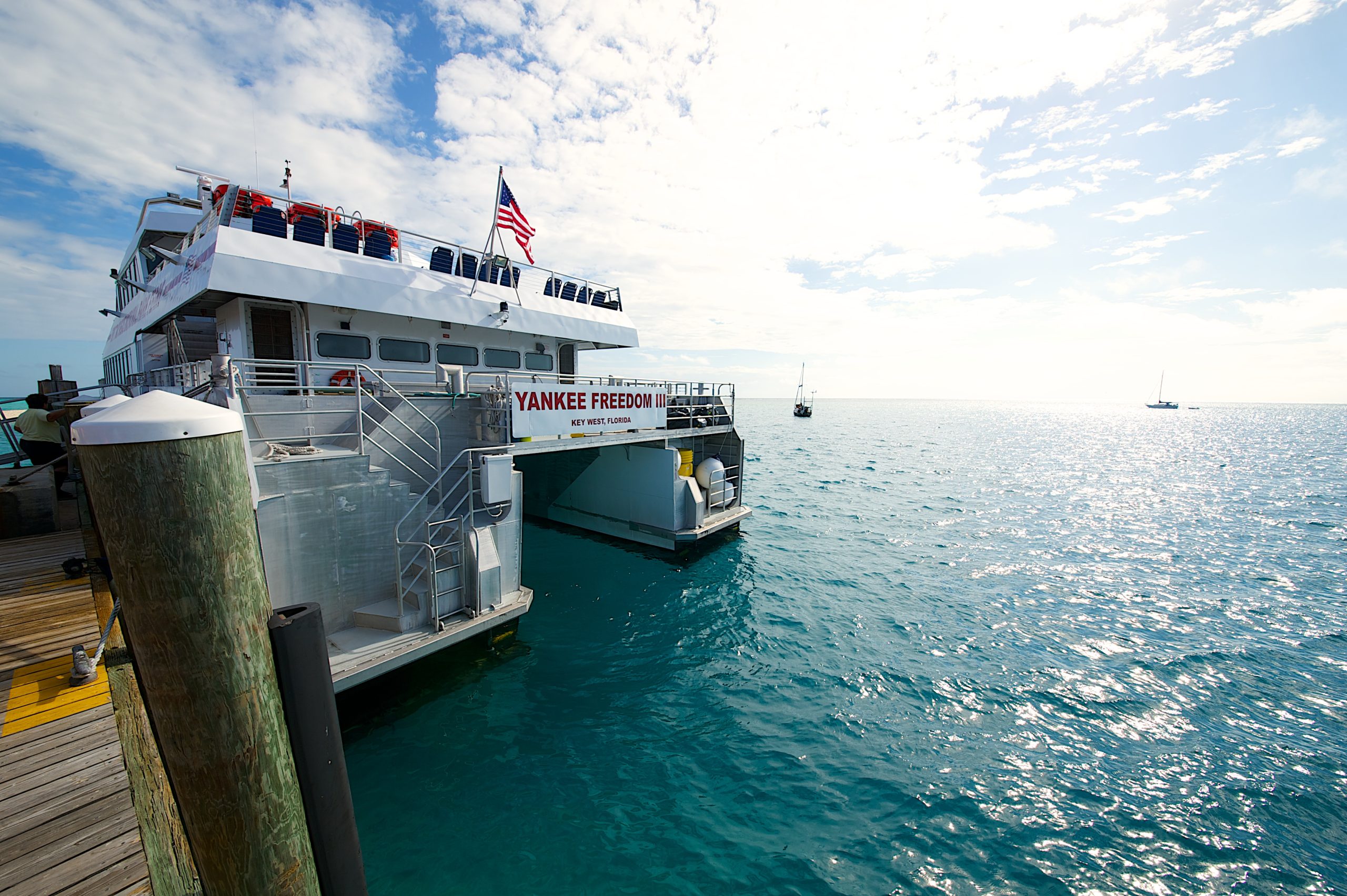

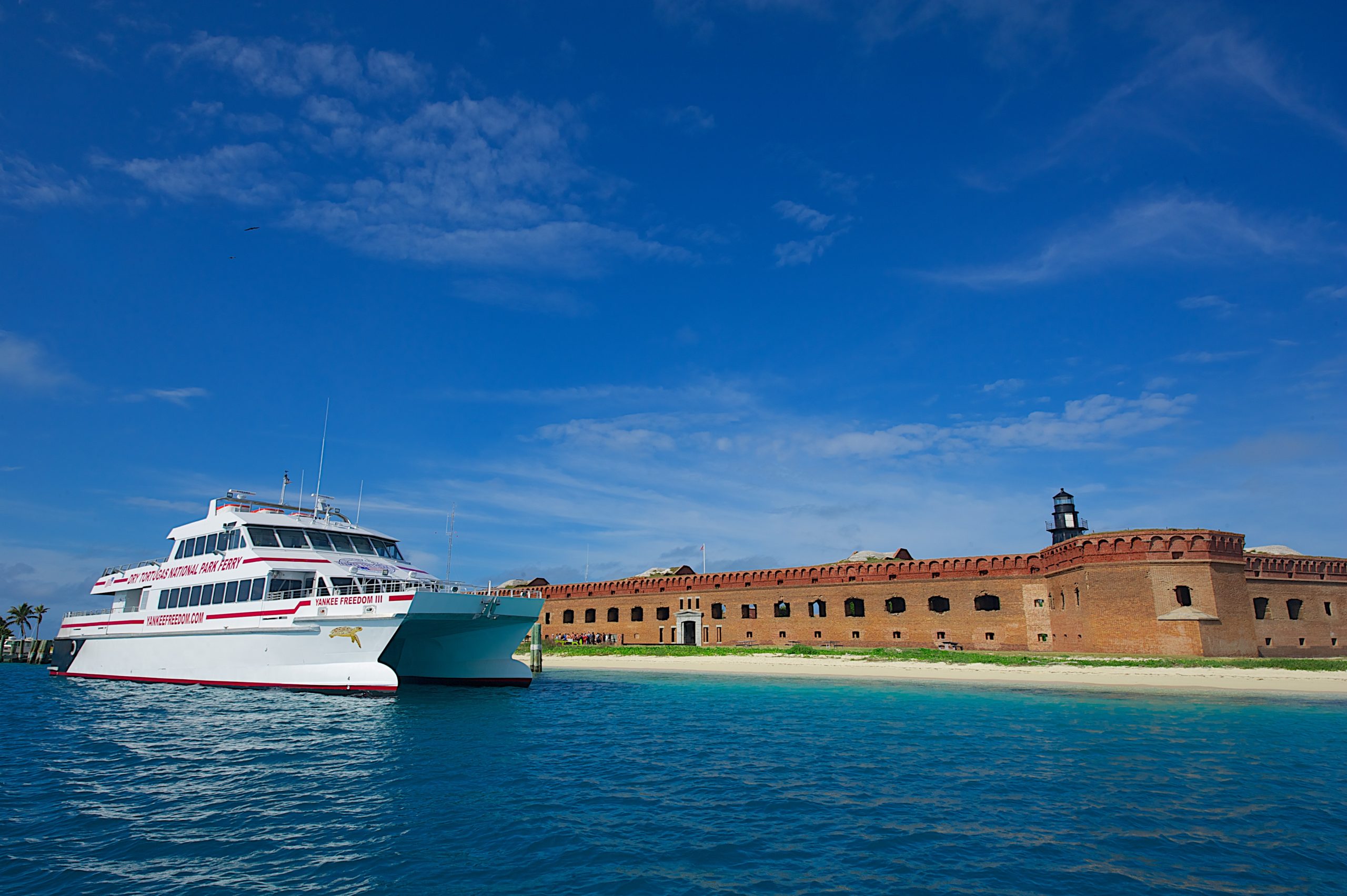

Yankee Freedom III

General Specifications

Insert Official Number 1239855 in the Vessel Number box and click “search”

NameYankee Freedom III (hull 389)
StyleFerry
HullCatamaran
BuilderGladding Hearn Shipbuilding
ArchitectIncat Crowther Pty Ltd
USCG CertifiedYes
USCG Dry Dock2026
U.S.C.G. Official Number1239855
Route CertificationOceans 100 miles
Passenger Capacity250
Gross Tonnage94
Net Tonnage64
Cruising: 25 kts @ 1,625 RPM
Maximum: 28 kts @ 1,800 RPM
Built2012
LOA
LWL109.9′
Beam31.7′
Hull Depth Depth12.5′
Freeboard12′
DraftWater 8′ Air 34′
Displacement100.04 long tons
Hull MaterialAluminum
Deckhouse MaterialAluminum
Tank CapacitiesFuel: 2,000 gallons
Waste: 800 gallons
Grey Water: 9000 gallons
Potable Water: 400 gallons

ACCOMMODATIONS AND LAYOUT

The vessel is arranged with entry doors aft of the bow (port and starboard) and off the stern. The main deck is arranged with booth type seating along port and starboard and the centerline. A beverage bar/snack area is aft on port while four heads are located aft. Passengers have access to exterior seating along port and starboard. A passenger salon and exterior seating with the pilothouse is located on the 01 deck.

WHEELHOUSE

  • Control station with VDO engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
  • Three station hydraulic steering system – Kobel jog on wings
  • Twin Disc EC-300 Quick Shift electronic dual clutch and throttle controls
  • Murphy bilge alarms
  • Fog bell
  • Kahlenberg trumpet horn
  • ACR Point Pad model URP-162 three station remote controlled searchlight
  • Kobelt rudder indicators
  • Three Hepworth size 80 windshield wipers
  • Two H.O. Bostrom Sea Post seats
  • Simrad model AP35 autopilot
  • Two 12” Furuno NavNet TZ Black Box Radars
  • Furuno plotter
  • Standard Horizon GX5500 compass
  • 6” Ritchie Power Damp compass
  • Furuno integrated network sounder
  • Furuno NavNet GPS
  • Two Standard Marine model GSX550 VHF/FM marine radios
  • ICOM M 802 single side band marine radio
  • Two Raytheon model 430 loud hailers
  • Furno model FA150 AIS
  • Panasonic 6 station ships phone system
  • Public address system with a Sirius radio, amplifier, CD player and equalizer
  • NAIAD active interceptor ride control system
  • Closed circuit television system with 8 cameras

SALON (MAIN DECK)

  • 144 Berteaux Ocean Outdoor seats with PFD storage below
  • 24 Berteaux Ocean tables
  • 138 Berteaux Ocean Café seats
  • 4 27” monitors

SALON (01 DECK)

  • 54 Berteaux Ocean Outdoor seats
  • 9 Berteaux Ocean tables
  • 56 Berteaux Ocean Café seats
  • 2 27” monitors, 1 30” monitor

BEVERAGE BAR/SNACK/SOUVENIR AREA (MAIN DECK)

  • Epoxy pour bar top
  • Stainless steel sink
  • Stainless steel three partition sink with ice bin
  • Beverage Air two door horizontal cooler
  • Arctic Air refrigerator
  • Two freezers (I horizontal 1 stand up)
  • 36” stainless steel speed rail
  • Double coffee urn
  • 800-watt microwave oven
  • Buffett line (chilled) with sneeze guard

BEVERAGE BAR (01 DECK)

  • Single partition stainless steel sink
  • Ice bin
  • Beverage Air cooler

ELECTRICAL SYSTEM

  • Two ship service 70.0 kW LeRoy Sommers generators each powered by a dedicated Caterpillar model C4.4 Tier 2 marine diesel 4-cylinder marine diesel engines (NEW 2015) with fuel filter, seawater strainer and seacock
  • Engine hours: 15,312 port (serial P4M10038) and 6,616 starboard (serial J1Z06639) – February 2026
  • Rebuilt – starboard 2022
  • Ship to shore power switch
  • 100 AMP/ 240 VAC shore power service
  • 115 VAC exterior and interior perimeter lighting
  • 120 VAC/12 VDC lighting
  • 120 VAC duplex outlets
  • Six 12 VDC 8D enclosed heavy duty batteries
  • Perko battery isolation switch
  • Two Charles automatic 60-amp battery chargers – propulsion engines
  • Two Charles automatic 20-amp battery chargers – generators
  • Charles automatic 30-amp battery charger – wheelhouse
  • 12.5-ton reverse cycle heat pump system (five tons per deck and 2.5 tons for the wheelhouse)
  • 24 VDC manifold bilge system
  • Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

HULL, SUPERSTRUCTURE AND DECKS

  • 6-10 millimeters of 5083 H116 aluminum plate hulls
  • S Bow form
  • 4-6 millimeters of 5083 H116 aluminum plate deckhouse
  • Each hull has five watertight compartments formed by four transverse bulkheads
  • 6” split pipe rub rail
  • Boarding gates: two forward and two aft
  • Stair treads
  • Stainless steel thresholds
  • Eight 15” kevels
  • Deck fittings:
    • Electrical: Aft – port/star
    • Waste: Aft – port/star
    • Water: Fwd – port/star
    • Fuel: Fwd – port/star

MECHANICAL EQUIPMENT AND ENGINE DETAILS

  • Two 12 cylinder 24 VDC turbo charged 1,875 HP @1800 RPM Caterpillar 3512C tier 2 marine diesel engines, fuel filters, seawater strainers with seacocks
  • Engine hours: 26,748 port, 9,555 starboard (s/n TTC00492) – February 2026
  • Port top end rebuilt 2022 with Tier 4 heads
  • Starboard NEW 2021 with Tier 4 heads
  • Engine room insulation
  • Two five blade NIBRAL Bruntun propellers
  • 4.5” Aquamet 17 stainless steel shafts
  • Twin Disc model MGX-66485C 4.47:1 reduction gears
  • Gears rebuilt – port 2024, starboard 2015
  • Two 2 1/2-gallon water heaters
  • One hot shot water heater
  • Oil drain system (24 VDC) for the propulsion and generator engines
  • Water system with accumulator tank
  • 3 hp air compressor

HEADS

The vessel is equipped with four unisex heads and each contains:

  • Headhunter type III head
  • One sink with an automatic shutoff faucet
  • Toilet paper dispenser
  • Hand dryer
  • One is ADA compliant

SAFETY EQUIPMENT

  • 258 type I adult size personal flotation devices
  • 26 type I child size personal flotation devices
  • 12 22-person buoyant apparatus
  • ACR model 406 category I EPIRB
  • Three 24” life rings one with line and light
  • 13 self-actual rescue lights
  • Two 100 lb. CO2 bottles – mounted
  • FM-200 fixed fire suppression system in each engine room
  • Pyrotechnic distress signals
  • One fire station on each deck and one in each engine room: two 1 1/2” UL approved rubber lined hoses with brass or bronze fittings, two brass or bronze nozzles, two brass or bronze hose bibs.  The bilge pump system operates the fire system also
  • Fortress model FX-125 anchor with 300′ of rode
  • Swim platform with fold down ladder
  • AED

FINISH

  • Exterior coating (hulls): Awlgrip
  • Exterior decks: Epoxy – nonskid
  • Overhead – Dampa 600 mm suspended aluminum panels
  • Interior decks:
    • Salon: diamond plate aluminum
    • Heads: diamond plate aluminum
    • Bar/snack: diamond plate aluminum
    • Wheelhouse: Sound down carpeting
  • Interior Bulkheads: Arvinyl aluminum sheathing

SPARE PART INVENTORY

  • 70 kW C44PGSW C4.4 ACERT generator – new delivered 2022- unused – stored in climate control building.  Including adapter customized for exhaust to fit through hull
  • Caterpillar model 3512C mairne3 diesel engine (s/n TTC00434)- complete rebuild March 2024 with Tier 4 heads
  • Starter motor for main engine
  • Torsional coupling element model CX-70 with one set of dog bones
  • Twin Disc model MGX6848SC marine gear rebuilt 2024- stored inside building
  • Set of sequential valves for marine gear
  • Set clutch plate/gaskets and seals for marine gear
  • Good working spare NAAID trim tab electric actuator/1 for spare parts
  • Spare bearings bushings/trim tab
  • Stainless steel spare ram pushrod for trim tab
  • High voltage converter for NAAID control panel
  • Set of reconditioned propellers -2023 never used again slight different pitch they cruise at 1525- current propellers cruise at 1650
  • 1.5 HP power blower motor
  • 2 new sea chest valves/handles/bolts and isolators
  • 4 shivs for steering cable
  • Spare steering cable
  • PROP SMITH- 4.5” shaft
  • Saltwater pump
  • Freshwater pump
  • 2 boxes ceiling panels
  • Set of spare hydraulic hoses for each length and size of steering
  • Rebuilt main steering ram
  • Rebuilt auxiliary steering ram

WORK COMPLETED 2019 TO PRESENT

  • 2019
    • New main installed- Key West Engine- alignment done with datum current hours-
  • 2020
    • All AV components replaced, new mic, and spare Mic and spare mic TOA/Luxuudbx selectors and amplifier and Gigabit managed switch 4 selector- Aux/Sirius. DVD, wireless mic
    • New generator installed CAT C4.4 70KW (hours 6,626 February 2026) – delivered in 2016
  • 2021
    • New sullage tanks created and welded in lazarette, coated with epoxy paint as an isolator both port and starboard.  New inspection gasket on both tanks
    • Crop and renew port lazarette hull plate 12” up on each side of all.  All plate renewed except strut plate
    • New hydraulic valve manifold pipe and valve
    • New exhaust blankets port and starboard lazarette
    • New exhaust bellow port and starboard lazarette – new bolts and washers
  • 2022
    • Replace the through hull wet exhaust for both generators
    • Replace the bilge sea chest valve port side
    • Clad welding performed on large pit on strut place
    • Port rudder dropped new times Marine bearings and seals
    • Reconditioned stalk and new lip seal with spare lip seal mounted on stalk as backup
  • 2023
    • Straighten starboard shaft with new Cutlass bearing on through hull and strut.  New dripless seal/rings.  Replaced the nuts and cotters pins on starboard
    • Replace the helm steering pump
  • 2024
    • Rebuilt gear port side – Key West Engine
    • Align on both mains, deemed all mounts good from wear datum
    • Replace tortional couplings and dog bones
    • Engine to gear and gear to shaft aligned and shimmed as needed – datum
    • Replaced three control heads
    • Replaced processor on port gear.
    • Replaced Twin Disc display on port side
    • Replace stair treads on port and starboard stirs
    • Crop and renew #2 void starboard side 12 x 12
  • 2025
    • Two new NAAID electric actuators with new stainless steel push rod, both trim tables dropped/2 new thru hull bushings with new seals/all new bushings/bearings on both sides – all new nut – torqued to spec and reinstalled.
    • Replaced bilge manifold welded up by Gladding Hear – All new check valves and ball valves installed
    • Replaced Cooney schedule 40 pipe on bilge pick up lines to manifold both engine rooms through bulkhead fitting with fire rated approved sealant.
    • Starboard thru hull discharge (bilge overboard) fitting crop and renew
    • Replace Wilbur Curtis 12-D two pot coffee machine

REMARKS

The YANKEE FREEDOM III is in very good condition. Seller will be responsible for the cost of the USCG dry dock exam credit and refit of the fire suppression system. The ferry offers a sleek style and wonderful viewing for passengers.

EXCLUSIONS

  • 50’ 100 AMP/ 240 VAC power cord

Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
