General Specifications
Insert Official Number 1189366 in the Vessel Number box and click “search”
| Name | Water Taxi |
| Style | Ferry or Fishing |
| Builder | Chesapeake Boats |
| Hull | Displacement |
| USCG Certified | Yes |
| USCG Dry Dock | February 28, 2025 |
| USCG Official Number | 1189366 |
| Route Certification | Limited Coastwise |
| Passenger Capacity | 40 (44 LBS) |
| Gross Tonnage | 19 |
| Net Tonnage | 15 |
| Speed (approx.) | 25 Knots |
| Built | 2006 |
| LWL | 46′ |
| Beam | 16′ |
| Hull Depth Depth | 4′ |
| Displacement | 15 tons |
| Hull Material | FRP (Wood Internals) |
| Deckhouse Material | FRP (Wood Internals) |
| Tank Capacities | Fuel: 400 gals Waste: 70 gallons Potable Water: 25 gallons |
WHEELHOUSE
- Morse throttle and clutch control system
- Seastar hydraulic steering
- Fog bell
- Electric horn
- Jabsco searchlight
- Seadog windshield wipers
- Two Garmin VHF/FM marine radios with antennas
- Furuno model 182C Display
- Two Garmin model GPS 24XD
- Raymarine autopilot
- Garmin model XSV depth sounder
- Ritchie compass
- Fusion AM/FM Bluetooth stereo
AFT DECK
- Bench seating for 40 passengers.
GALLEY
- Single stainless-steel sink
- Magic Chef refrigerator
DECKHOUSE
- Fixed seating for 9 passengers
STATEROOM
- Two berths
ELECTRICAL SYSTEM
- Ship service Onan generator powered by a Cummins marine diesel engine with fuel filter, seawater strainer and seacock.
- Hour: 500 October 2024 (approximate)
- Ship to shore power switch
- 30 AMP/ 240 VAC shore power service – single phase
- 120 VAC/12 VDC lighting
- 120 VAC duplex outlets
- Two 8D enclosed heavy duty batteries – 24VDC (engines)
- One Group 27 battery (generator)
- Battery charger
- Perko battery isolation switch
- Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)
MECHANICAL EQUIPMENT AND ENGINE DETAILS
- Two 6-cylinder __ HP Cummins Marine model 6CTA 450 C marine diesel engines, fuel filters, seawater strainers, heat exchanger with seacocks.
- Hours: Port – 7,000, starboard 7,000 – October 2024 (approximate)
- Twin Disc model marine gears.
- Two 2” stainless steel Aquamet propeller shafts
- Two four blade bronze propellers
- MarineAir reverse cycle heat pump
- Heatercraft heating
HEADS
The vessel is equipped with one head. Each with a toilet and sink. Macerator with electrical treatment.
SAFETY EQUIPMENT
- 49 type I adult size personal flotation devices
- 5 type I child size personal flotation devices
- 2020 30 passenger Survitec Zodiac Inflatable Buoyant Apparatus (IBA)
- One life ring with line
- CO2 fixed engine room fire suppression system
- 2 B-I, 1 ABC fire extinguishers.
- SATFIND 406 Pro model S1210 EPIRB
- Pyrotechnic distress signals
- One fire station 1 1/2” UL approved rubber lined hoses with brass or bronze fittings, two brass or bronze nozzles, two brass or bronze hose bibs. The bilge pump system operates the fire system also.
- Danforth style anchor
- E ZY Puller DC windlass
FINISH
- Exterior coating: Coating
- Exterior decks: nonskid
- Interior decks: nonskid
- Heads: nonskid
ACCOMMODATIONS AND LAYOUTS

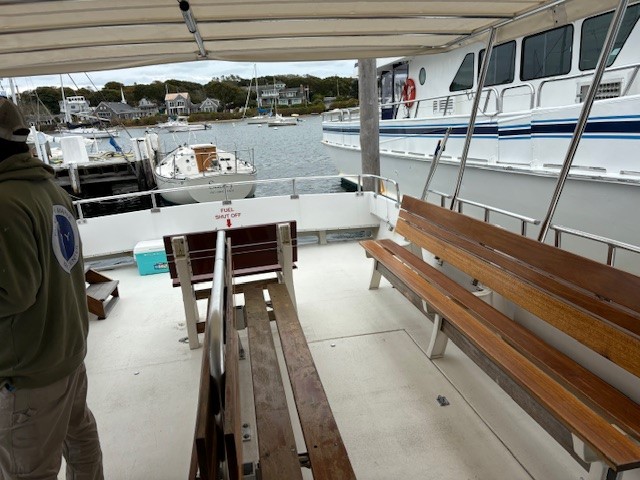

The vessel is arranged with boarding aft port and starboard. The aft deck is arranged with perimeter bench seating along port and starboard and centerline facing port and starboard. The head is forward on port. The deckhouse provides interior bench seating, a galley and pilot station.
REMARKS
- The MV WATER TAXI is in good condition. She could be returned to a party fishing boat.
EXCLUSIONS
N/A
Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice
