General Specifications
Regulatory File -Insert Official Number 1026108 in the Vessel Number box and click “search”
General Arrangements

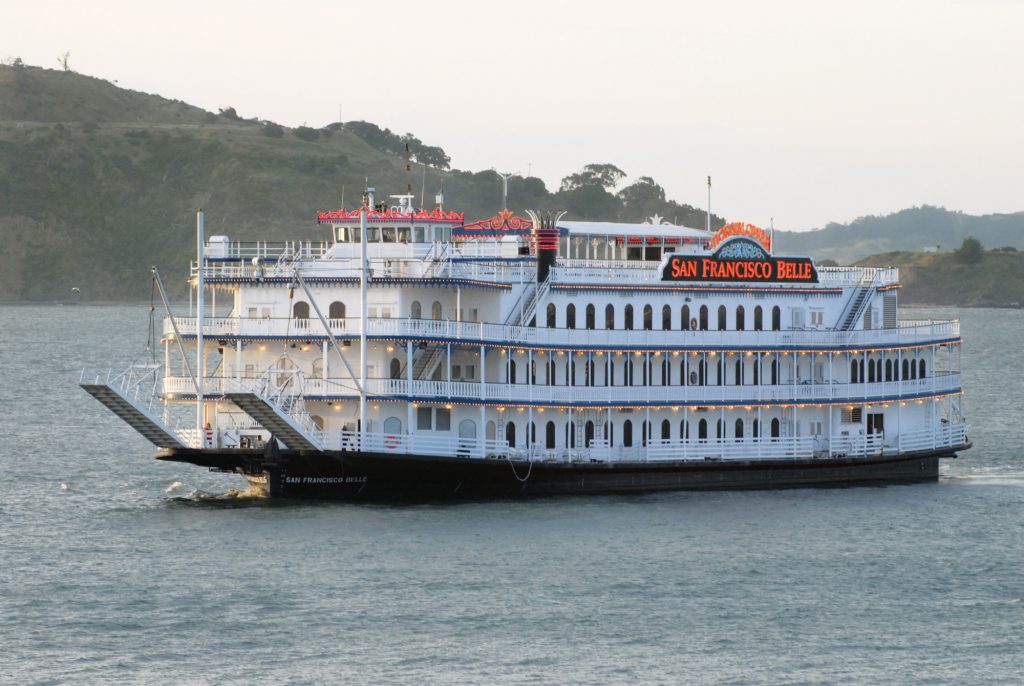

| Name | San Francisco Belle |
| Style | Sternwheeler |
| Builder | Houma Industries |
| Hull | Displacement |
| USCG Official Number | 1026108 |
| USCG Certified | Yes |
| USCG Dry Dock | December 31, 2026 |
| Passenger Capacity | 2,000 |
| Gross Tonnage | 1,464 (4,600 ITC) |
| Net Tonnage | 1,396 (1,560 ITC) |
| Displacement | 1,865.47 long tons |
| Built | 1994 |
| LOA | 228′ |
| LWL | 218.9’ |
| Beam | 60.2′ |
| Hull Depth | 13′ |
| Draft | Water Draft 7.6′ Air Draft: 62′ (56′) |
| Route Certification | Lakes, Bays and Sounds |
| Hull Material | Steel |
| Deckhouse Material | Steel |
| Tank Capacities | Fuel: 7,000 gallons-steel Lube Oil: 750 gallons. Waste Oil: 750 gallons. Waste: 44,500 gallons Potable Water: 30,000 gallons |
WHEELHOUSE
- Cummins control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
- Cutch and throttle controls with port and starboard wing controls
- Kahlenberg horn
- Upholstered helm seat
- Raymarine model 950 AIS transceiver
- ICOM model IC-M506 VHF/FM marine radio with antenna
- ICOM model IC-M504 VHF/FM marine radio with antenna
- 12 Motorola handheld UHF radios
- Raymarine model FR 8100D radar with antenna
- Furuno model GP-31 GPS Navigator
- Furuno model T2 Nav Net multi-function chart plotter radar
- Hikvision security system with two dell Monitors
- Two Dart Datamine depth sounders (fore and aft)
- 6” Ritchie compass
- Murphy high alarm system
- Searchlight with port and starboard controls
- Simrad wind direction and speed indicator – NON-OP
- Stainless steel hand sink
- Aniston water heater

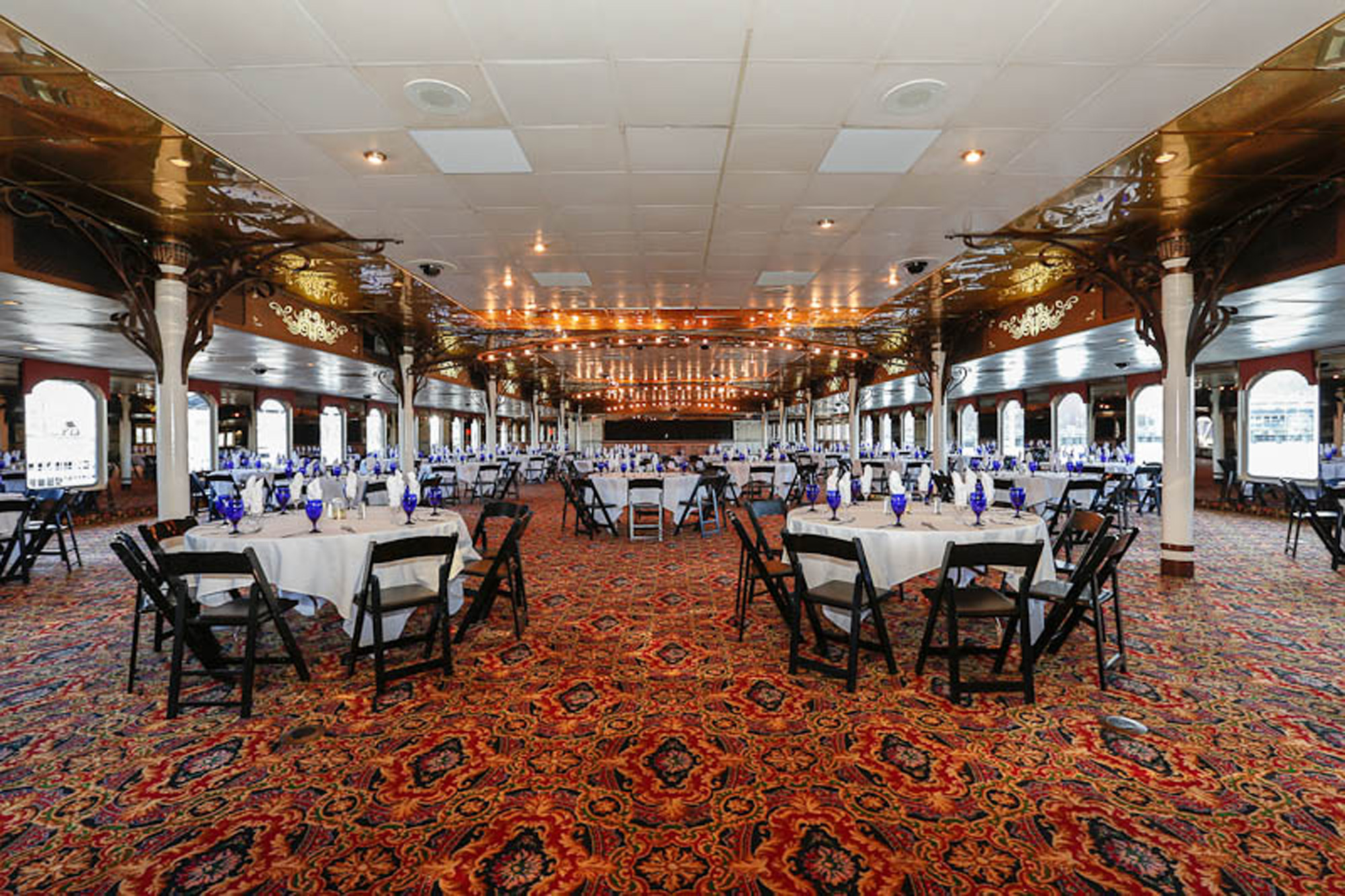

SALON (MAIN – MARINA DECK)
BEVERAGE BAR (MAIN DECK – AFT)
- Two NCR POS registers
- Glasstender three door counter beverage refrigerator
- Ecolab commercial glass washer
- Three auto beverage dispensers
- Two stainless steel hand sinks
- Hoshizaki ice machine
- Three Krowne stainless steel ice bins
WAIT STATION (MAIN DECK – FORWARD)
- Bunn Commercial dual coffee machine
- Mackie model SWA1801 subwoofer
- Aggressor lightning mixer
- Behringer model NX 3000
- Two NCR POS registers
SCULLERY (MAIN DECK)
- Hobart dishwasher
- Ecolab dishwasher
- Matco water booster
AFT STORAGE (MAIN DECK – AFT)
- Carter Hoffman two door warmer
- Vulcan two door warmer
- Two Hoshizaki ice machines
- Walk in refrigerator.
- Walk in freezer
SALON (01 DECK – BAY DECK)
WAIT STATION (01 DECK FORWARD)
- Mackie model DFX12 mixer
- Teac model P650 CD player
- Behringer model NX3000 amplifier
BEVERAGE BAR (01 DECK)
- Two NCR POS registers
- Glasstender three door counter beverage refrigerator
- Ecolab commercial glass washer
- Three auto beverage dispensers
- Two stainless steel and sink
- Two three partition stainless steel sinks
- Hoshizaki ice machine
- Three Krowne stainless steel ice bins
SCULLERY (01 DECK)
- Hobart model CR5 66 A dishwasher
- Three compartment stainless steel sink
- Stainless steel hand sink
- Hatcco water booster
- Grease hood
GALLEY (01 DECK)
- Stainless steel triple deep sink
- Three Vulcan food warmer
- Carter Hoffman two door warmer
- Four Vulcan convention ovens
- Two Hobart six burner stove and oven
- Lang flat grill
- Cleveland electric fry preparer
- Two Frymaster deep fryers
- Hobart floor food processor
- Cleveland ultra steamer
- Two Vulcan power steamers
- Hobart stand mixer
- Hobart meat slicer
- Lang six burner stove and oven
- Walk in refrigerator
- Walk in freezer
- Stainless steel food prep station with waring drawers and upper units
- Gaylor hood with fire suppression
- Two HP computers with monitor
SALON (02 DECK – GOLDEN GATE DECK)
WAIT STATION (02 DECK – FORWARD)
- Bunn commercial dual coffee machine
- Yamaha sub-woofer
- Teac CD player
- Behringer model NX 3000
- Furman amplifier
- Mackie model DFX-12 mixer
- Three NCR POS register
BEVERAGE BAR (02 DECK AFT)
- Ecolab commercial glass washer
- Three Auto Beverage dispensers
- Three stainless steel hand sinks
- Glasstender three door under counter beverage refrigerator
- Hoshizaki ice machine
- Two NCR POS registers
- Three Krowne stainless steel sinks
- Krowne model 18-GSB1under bar glass storage unit
BEVERAGE/SNACK BAR (03 DECK – TEXAS DECK)
- Krohn hand sink
- Krown cocktail station with three compartment stainless steel sink
- Auto beverage dispenser
- Two MSA oxygen breathing apparatus
- NCR POS register
- Hoshizaki ice machine
- True horizontal cooler
ELECTRICAL SYSTEM
- Two Onan 725 kW marine generators powered by two Cummins model KTA-38-G2 marine diesel engines – hours: port 10,171, starboard 11,091 – February 2026
- Emergency Onan 200 kW generator powered by a Cummins model LTA-10GI diesel prime mover diesel engine – hours – 656 – October 2024
- 480 three phase shore outlet
- Six LaMarch ConstaVolt battery charges
- Two Newmar battery chargers
- Hurst boiler – decommissioned
- Three 200-ton Trane ton chilled water system
- Q-Mark heaters
- 120 VAC lighting
- 120 VAC duplex outlets
- Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light) – 2 sets
HULL, SUPERSTRUCTURE AND DECKS
- Welded steel plate hull
- Six watertight compartments formed by five transverse bulkheads.
- Boarding doors: 2 port and 1 starboard with one service entry port
- Two 6’ x 32’ gangways and winch
- Four sets of timberheads
- Seven D chocks
MECHANICAL EQUIPMENT AND ENGINE DETAILS
- Two Cummins model KTA-38M 944 hp turbo charged marine diesel engines (port 6,032, starboard 6,055 February 2026)
- ZF model BW 451 reverse reduction gear (5.630:1)
- Fernstrum keel cooler system
- Two 70” x 54” stainless steel propellers
- Two 6” stainless steel shafts
- Two steel flanking rudders
- Two steel steering rudders
- Thrustmaster bow thruster powered by a Cummins Marine model 6CTA8.3-M1 300 hp marine diesel engine (hours: 4,151 February 2026)
- Onan 725 kW generator powered by a Cummins Marine model KTA-38-G2 marine diesel engine Hours: 656 February 2026 (governor INOP)
- Hobart Megamig model 650 welder
- Miller model SRH-3-3 welder
- Beebe Brothers 15-ton maul winch
- Two MCE model HMC-1000-PHC elevators
- Two AO Smith water heaters
- Paddlewheel hydraulic pump and controls (NON-OP)
- Two Quincy model 325 air compressors power by 2.5 hp electric motors
- Two 100-gallon air receivers
- 23’ diameter 30’ wide paddlewheel (fixed)
HEADS
The vessel is equipped with six heads, each containing the following:
- Three stalls, five urinals and three sinks – Men’s head
- Four stalls with three sinks – Female Head
SAFETY EQUIPMENT
- 2,250 adult size personal flotation devices
- 225 child size personal flotation devices
- Six 600 passenger inflatable buoyant apparatus (IBA)
- 12 30” life rings
- 1 120-B, 1 160 B, 36 20-B-C and 12 40-B-C fire extinguishers
- Fixed CO2 system in emergency generator room, generator room, thruster room, engine room and galley
- Pyrotechnic distress signals
- Three SCBA units with firefighting suites
- 2,500 lb. Danforth anchor
- New England model X2262 anchor capstan
- 16’ aluminum rescue boat with a 30 hp. Honda Outboard
- Narwal rescue boat with 25 hp Mercury outboard
- Mar-Quipt electric hydraulic boat davit
- Mar-Quipt 1,200 lb. electric crane
- Four fire stations including: approved rubber lined hoses with brass or bronze fittings, brass or bronze nozzles, brass or bronze hose bibs – powered by two Marlow 50 hp 230 VDC pumps
Remarks
N/A
Exclusions
Ecolab equipment is on lease and not part of the offer.
Pinnacle Marine Corporation offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
