Baranof Dream

General Specifications

Insert Official Number 628957  in the Vessel Number box and click “search”
Baranof Dream Deck Plans

NameBARANOF DREAM
StyleOvernight
BuilderBlount Marine
HullDisplacement
USCG CertifiedYes
USCG Dry Dock
ON Number628957
Route CertificationLakes, Bays and Sounds
Passenger Capacity49
Gross Tonnage97
Net Tonnage84
Speed (approx.)Cruising:9 knots
Maximum:12 knots
Built1980
LOA142.6′
LWL123.5′
Beam28′
Hull Depth Depth6.8′
Freeboard6′
DraftWater 9′ Air 36′
Displacement277.34 long tons
Hull MaterialSteel
Deckhouse MaterialSteel
Tank CapacitiesFuel: 3,515 gallons
Fuel (day): 2,200 gallons.
Hydraulic Oil: 101 gallons
Lube Oil: 250 gallons.
Waste: 440 gallons
A-Head Sewage treatment system
Potable Water:4,255 gallons

ACCOMMODATIONS AND LAYOUT

Foremost on the lower deck a void and the bow thruster, accessed by way of a watertight hatch in the sole of the lounge. Next aft, the forward crew quarters, with a utility room foremost to Port, aft the stairway to the main deck, aft three crew cabins with tiered single berths, to Starboard four crew cabins. Aft are watertight bulkheads enclosing the vessel’s water tanks, then aft are the aft crew quarters, again to Port a utility room, aft a stair to the main deck, aft three crew cabins, to Starboard four crew cabins. Aft a watertight bulkhead, aft the engine room, and aft the lazarette with steering apparatus and some black water equipment. Aft is the stern.  On the main deck level, foremost the full-width lounge with large windows in the forward hull, a television forward lounge seating on settees outboard and on lounge furniture inboard, aft to Port a stair to the lower deck crew quarters, aft a full bar with stainless steel sinks and work surfaces, a raised bar top, beverage and beer coolers and serving equipment. The area opens aft to the athwartships main boarding and muster area, double embarkation doors outboard, to Starboard a sideboard, to Port a second stairway to the aft crew quarters. Looking aft through double fire doors is a passageway between six standard staterooms, aft of which is the main dining room, with a stairway to the cabin deck forward to Port, a side bar with coffee makers aft to Port, and a serving window from the galley aft to Starboard Aft is the food preparation area, with an engine room scuttle to Port, inboard of a refrigerator and pantry room, aft a second pantry with washer and dryer. To Starboard is the galley with ample stainless-steel cabinetry, a large cook stove with convection and standard ovens beneath and a ventilated range hood above, under counter coolers and cabinets, and so forth.  Centered aft is a grate over a round hatch for access to the lazarette, aft a hinged weathertight door to the aft deck, which is again protected by the overhang of the deck above, with an open stair up to that deck. In this area there are storage lockers, a water maker, a stern rope capstan, a movable aluminum kayak loading platform and lowering mechanism, outboard are boarding doors.  On the next up cabin (promenade) deck, foremost a bow viewing area, with solid 42” steel bulwark, hinged to accept a disembarking ramp, aft a rope capstan, aft the anchor windlass. Aft is a superstructure with four standard and two deluxe staterooms, all with ensuite heads and showers and exterior entrances, aft an interior companionway with stairs leading down to the main deck muster area and up to the bridge deck. Aft four standard and four deluxe staterooms with identical furnishings, aft is a small aft deck that is protected by the overhang of the bridge deck, with commercial refrigerators and freezers abaft the cabin and an open stairway to the main deck aft.  On the uppermost bridge deck, foremost the wheelhouse with curved front, raked windows, set back and inboard from a Portuguese bridge. Inside a full-width steering console with lockers beneath, main helm and navionics at center, wing stations outboard with adjacent sliding windows, aft electrical and alarm panels, and outboard are steps down to doors opening to promenades on the bridge deck. At center are master and mate staterooms, aft three deluxe staterooms, an inside stairway to the cabin deck, aft a rest room and a tool room, aft a utility space and a ladder to the cabin top. Aft, the deck is open, protected forward by a synthetic canopy on a steel framework, with some deck furniture beneath. Aft is open deck, with powered MOB recovery davits outboard, and aftermost an open stair to the cabin deck.

WHEELHOUSE

  • Control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
  • Bilge alarm system
  • Wagner hydraulic steering system
  • Twin Disc model EC-200 digital clutch, throttle and thruster controls.
  • Fog bell
  • Wagner 7” compass
  • Dual trumpet horn
  • 18” Perko searchlight
  • Two windshield wipers
  • Two Uniden model ES/UM 380 VHF/FM marine radios with antennas
  • Several ICOM model IC-M36 handheld VHF/FM marine radios
  • Iridium model 955 satellite telephone
  • Furuno model FCV 600L color LCD graphic fathometer
  • Furuno FCV 582L color graphic fathometer COMNAV model 2001 autopilot
  • Four Hough rudder angle indicators
  • Furuno model FA1702 Class A AIS
  • Furuno model 1935 24-mile radar
  • Furuno model FR 704D 48-mile radar
  • Furuno model GP 32 digital GPS
  • Dell computer, Noteltech navigation (will require subscription) and Cyberpower model 1500 UPS
  • Electro Na model EN2188R
  • Airphone intercom system
  • Alden Navtec model NX700 weather station
  • Two windshield wipers
  • Chelsea barometer/chronometer
  • David Weath Wizard

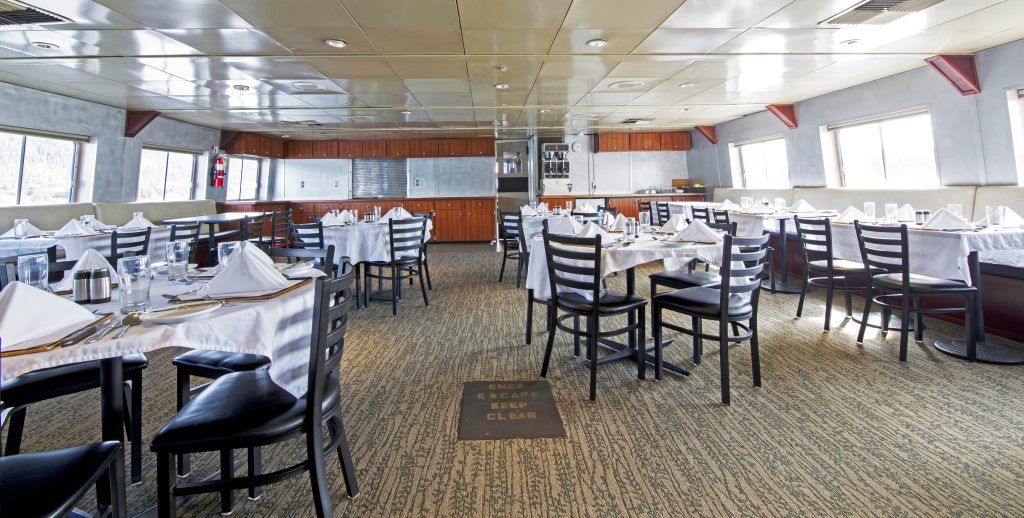

DINING SALON (MAIN)

  • 3 tables (72” x 30”)
  • One table (60” diameter)
  • Perimeter bench seating

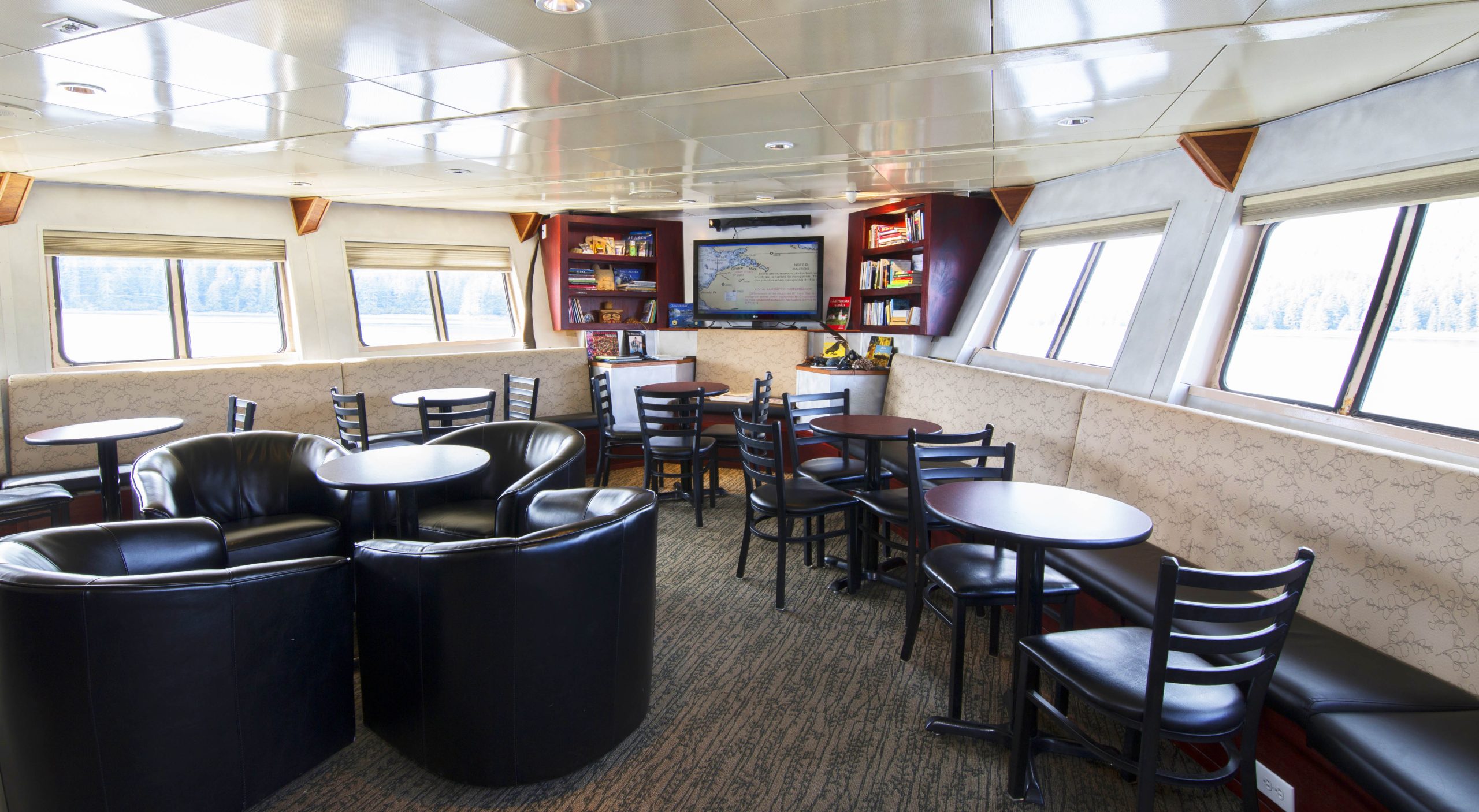

LOUNGE WITH BAR (MAIN DECK)

  • 3 tables (18” diameter)
  • 8 tables (round)
  • 65” television
  • Four Crowne model CDIL1000 amplifiers
  • Bar
  • Two coolers
  • Two stainless steel sinks

GALLEY (MAIN DECK)

  • Three partition stainless steel sink
  • Two Turbo Air model M3 24 cubic foot freezers, Three Cospolich walk in refrigerators/freezers
  • Maytag chest freezer
  • Cospolich 70 cubic foot freezer
  • Cospolich 90 cubic foot refrigerator
  • Magic chef Microwave oven
  • Scotsman ice maker
  • Micro Magic keg cooler
  • Four Magic Chef beverage coolers
  • Two 36” range and griddle
  • Two TurboAir model M3R24 refrigerator
  • Axis convection oven
  • Hobart dishwasher
  • Insinkerator garbage disposal
  • Commercial mixer
  • Blender
  • Curtis coffee maker
  • Glastender model GT-18 dishwasher

ELECTRICAL SYSTEM

  • Two generators each powered by a 4-cylinder Caterpillar model SR-4-12 VDC turbocharged marine diesel engine
  • Air clutch front PTO (starboard generator) to belt driven Vickers 35-45 gpm hydraulic pump for thruster
  • Ship to shore power switch.
  • 200 AMP 120/ 240 VAC shore power service
  • 120 VAC/12 VDC lighting
  • 120 VAC duplex outlets
  • Eight 12 VDC 8D enclosed heavy-duty batteries – engine room.
  • Perko battery isolation switch
  • Battery charger – wheelhouse
  • Two McCarron model VMI 75-amp battery chargers
  • One Blue Sea model P-12 battery charger
  • Water-cooled reverse cycle heat pump system
  • Maga Sine model MS 4024 4000 watt 24 VDC inverter
  • Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

HULL, SUPERSTRUCTURE AND DECKS

  • 5/16” bottom, ¼” side shell and decks steel plate hull
  • 3/8” steel plate deckhouse
  • Insulated deckhouses
  • Six watertight compartments formed by five transverse bulkheads.
  • 6” split pipe rub rail
  • Boarding gates: two forward and two aft
  • Deck fittings:
    • Electrical: port/star
    • Waste: port/star
    • Water: port/star
    • Fuel: port/star

MECHANICAL EQUIPMENT AND ENGINE DETAILS

  • Twin 12-cylinder turbo charged 764 HP @ 2100 RPM Caterpillar model 3412 24 VDC marine diesel engines, fuel filters. REBUILT 2024
  • ZF Marine model BW 195 4:06:1 marine gear
  • Engine room insulation
  • 50” x 35 pitch four blade stainless steel propellers
  • 4.75” Auamet stainless steel shafts
  • PSI mini thruster model 24 300 powered PTO starboard generator
  • Water system with accumulator tank
  • 5 hp air compressor
  • US Watermaker Workboat Series W85
  • Two washer and dryers
  • Work benches, tools, bench grinder and drill press.
  • Quincy model 310 125 PSI air compressor

GUEST STATEROOMS  6 (MAIN DECK)

  • Queen berth
  • Ensuite head with sink and shower

GUEST STATEROOMS  10 (01 DECK)

  • Twin berths
  • Desk

GUEST SUITES 6 (01 DECK) & GUEST SUITES 3 (02 DECK) & STATEROOM Details

A (x6): One queen bed, ocean-view window, wardrobe, private bathroom with shower. Approx. 109 sq. ft.

AA (x10): Two twin beds, ocean-view window, wardrobe, private bathroom with shower. Approx. 105 sq. ft.

AAA (x4): One queen bed with two chairs, ocean-view window, wardrobe, private bathroom with shower. Approx. 116 sq. ft.

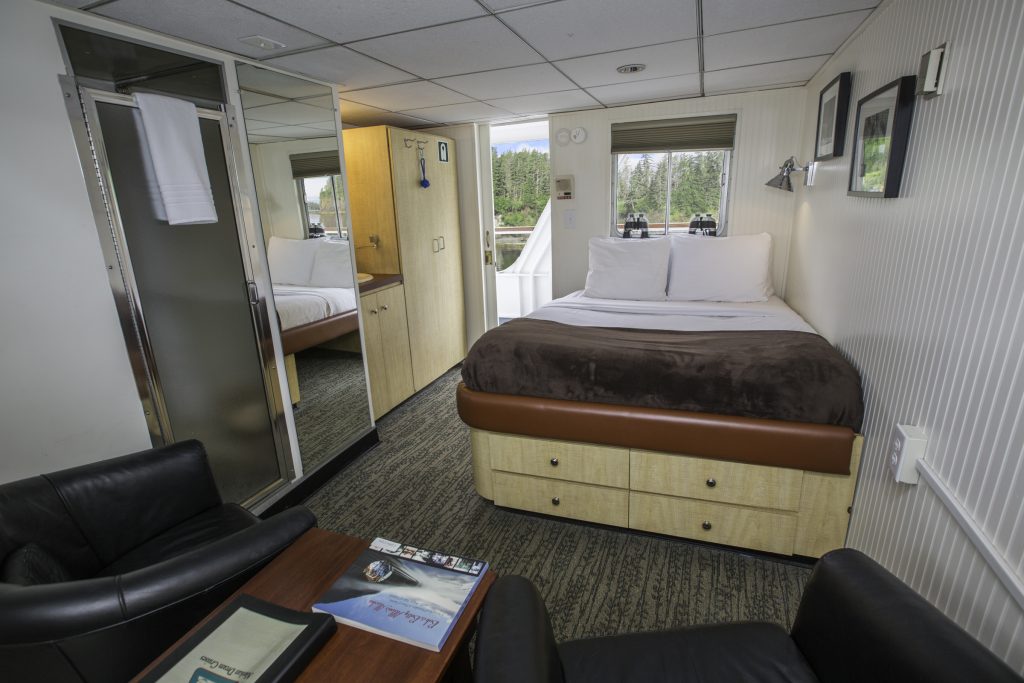

Deluxe (x3): One queen bed with two chairs, ocean-view window on both port and starboard, wardrobe, private bathroom with shower. Approx. 110 sq. ft.

Deluxe Suite (x2): One queen bed with one twin bed to accommodate a 3rd guest, ocean-view windows, wardrobe, private bathroom with shower. Approx. 210 sq. ft.

CREW QUARTERS (02 DECK)

  • Captain’s stateroom
  • Mate’s stateroom

CREW QUARTERS 3 (BELOW DECK)

  • Three double bunk rooms
  • One head with shower

HEADS

The vessel is equipped with one public head containing:

  • Toilet
  • One sink and faucet
  • Toilet paper dispenser
  • Paper towel dispenser

SAFETY EQUIPMENT

  • 71 adult size personal flotation devices
  • 8 child size personal flotation devices
  • Two IBA (71 capacity)
  • Three 30” life rings one with line
  • Five self-actuated rescue lights
  • ACR model RLB-41 EPIRB
  • One 10-B:C, eleven 2-A and Two 40-B:C fire extinguisher
  • Pyrotechnic distress signals
  • Two fire stations including: two 1 1/2” UL approved rubber lined hoses with brass or bronze fittings, two brass or bronze nozzles, two brass or bronze hose bibs.  The bilge pump system operates the fire system also.
  • Fire axe.
  • 500 lb. Navy type anchor
  • Open hydraulic drum with brake windless
  • Two Axis 1000 lb. aluminum pipe MOB davits
  • Blount 7” gear reduction electric capstan
  • Blount 7” hydraulic capstan

FINISH

  • Exterior coating: Coating
  • Exterior decks: Non-Skid
  • Interior decks:
    • Salon: Carpeting
    • Heads: Vinyl
    • Galley: Vinyl
    • Bar: Vinyl
    • Wheelhouse: Carpeting
  • Interior Bulkheads:
  • Salon: Wood panel
    • Heads: Coated
    • Galley: Panel

REMARKS

The BARANOF DREAM is in good condition. She operated for the 2025 season.

EXCLUSIONS

N/A

Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
