General Specifications
Insert Official Number 947675 in the Vessel Number box and click “search”
| Name | ADMIRAL TILP |
| Style | Sightseeing |
| Builder | Hueneme Boat Works |
| Architect | Dennis Bubner |
| Hull | Displacement |
| USCG Certified | Layup Status |
| USCG Dry Dock | DUE |
| Passenger Capacity | 49 |
| Gross Tonnage | 12 |
| Net Tonnage | 10 |
| Speed (approx.) | Cruising: 5 knots @ 2100 RPM Maximum: 6 knots @ 2,400RPM |
| Built | 1989 |
| LOA | 36’ |
| Beam | 16’ |
| Hull Depth | 7.3′ |
| Freeboard | 2’ |
| Draft | Water 3’ 4″ Air 16′ |
| U.S.C.G. Official Number | 947675 |
| Route Certification | Protected, less than 1 mile from shore |
| Hull Material | Fiberglass |
| Deckhouse Material | Fiberglass and fiberglass over wood |
| Tank Capacities | Fuel: 240 gallons Waste: 70 gallons Potable Water: 70 gallons |
HELM STATION
- Control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
- Bilge high water alarm system
- Wagner hydraulic steering system, Wagner helm pump
- Teleflex Morse clutch and throttle controls
- DC Electric panel and controls
- Fog bell
- One handheld spotlight
- West Marine VHF/FM marine radio with antenna
- Ritchie 4” magnetic compass
- An 80-watt PA-amplifier
- Radio/CD player
- Helm seat w/batteries underneath
MAIN DECK
- Bench seating perimeter and center w/storage and/or lifejackets underneath
- Engine room access beneath center bench seat
- Optional removable catering table
- Small area to set up bar
01 DECK
- Bench seating perimeter and center w/storage and/or lifejackets underneath
- Canvas top and vinyl enclosures
- Maximum 36 passengers
ELECTRICAL SYSTEM
- 12 VDC lighting
- DC Power only
- DC Panel and controls at Helm
- Heavy duty alternator – 70 amp
- Two 12v Deep cycle batteries
HULL, SUPERSTRUCTURE AND DECKS
- Hull is constructed of structural closed foam core enclosed with fiberglass
- Vessel superstructure is fiberglass
- Deck is fiberglass over wood
- 01 deck form core fiberglass
MECHANICAL EQUIPMENT AND ENGINE DETAILS
- One Caterpiller 3054 marine diesel engine – 74hp, fuel filters, seawater strainers with seacocks
- Engine rebuilt in 2016, very low hours after the rebuild
- BorgWarner Velvet Drive marine gear: 2.91-1 ratio
- Engine room insulation
- One three blade propeller and Spare
- 1 1/2’” stainless steel shaft
HEADS
- The vessel is equipped with two heads each contains:
- One pump flush toilet
- One sink and faucet
- One toilet paper dispenser
- One paper towel dispenser
SAFETY EQUIPMENT
- 51 type I adult size personal flotation devices (stowed under bench seating)
- 10 type I child size personal flotation devices (stowed in deck boxes)
- Two 30” life rings one with line
- 2 B-II and 1 B-I 10 lb. dry chemical fire extinguishers
- Engine room equipped with Halon fixed firefighting system and ventilation shutdowns
- One fire station including: One 1 1/2” rubber lined hose with brass or bronze fittings, and bronze nozzle. The fire pump system is belt driven from the engine.
- Danforth style 20 lb. anchor
FINISH
- Exterior coating: AwlGrip coating
- Interior decks:
- Salon: painted/varnished wood
- Heads: painted
- Headliner: Canvas top
- Interior bulkheads: painted
- Enclosures – canvas and clear vinyl
Accommodations & Layout

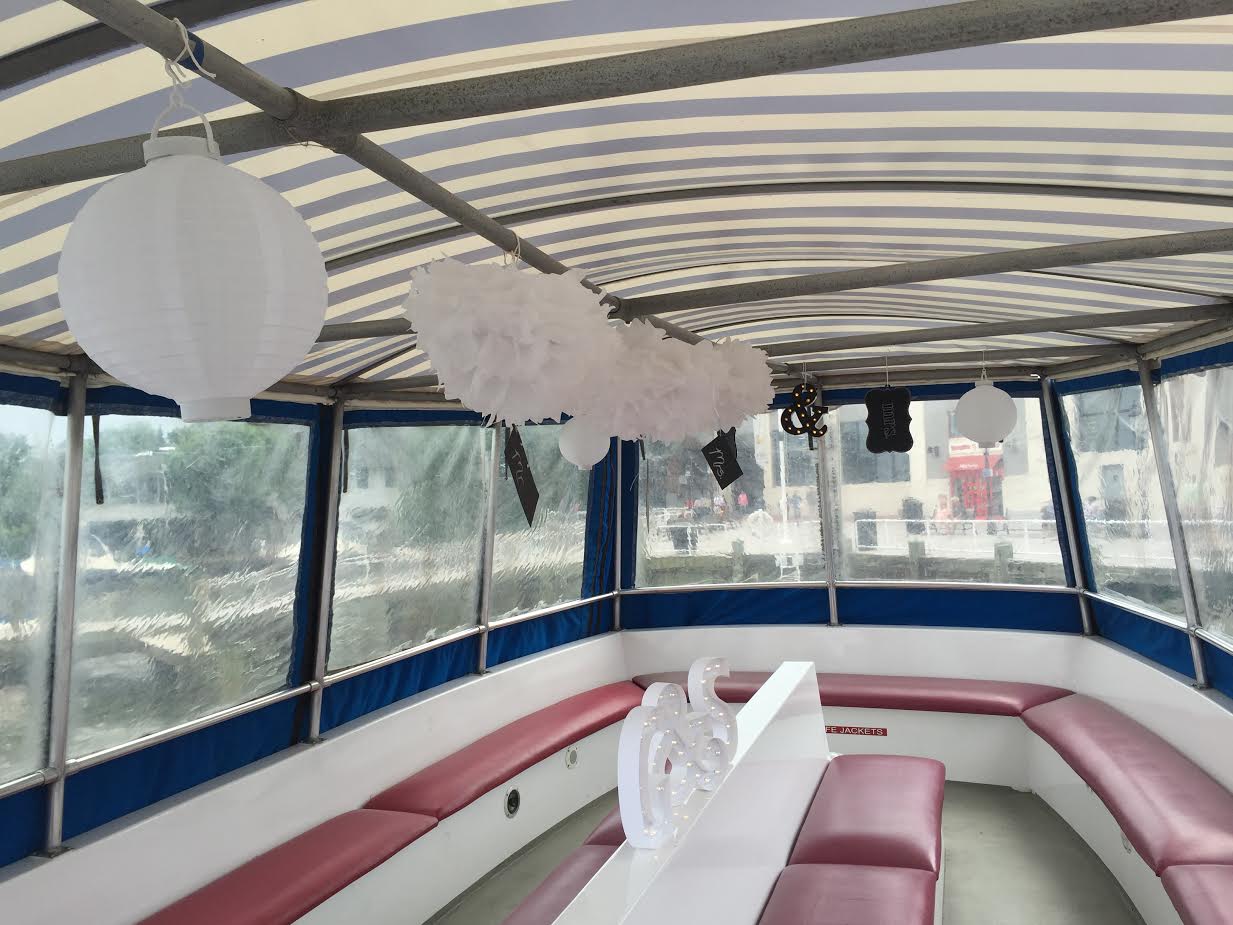

The vessel is arranged with two open-air decks with fixed benches along the perimeter. The main deck is arranged with a beverage bar area on port side and two small restrooms forward along with the helm station. The 01 deck is accessed by a spiral staircase that opens to an open-air viewing area with a canvas top and bench seating.
Remarks
The Admiral Tilp is in good condition. The vessel has not operated since 2019. She has been on land since Spring of 2021. She is due her USCG dry dock exam credit and in water exam.
Exclusions
N/A
Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
