Star of Louisville

Accommodations and Layout

The vessel is arranged with passenger boarding on the main deck amidships port or starboard. The main deck is arranged with a dining eating, a stair tower amidships on the centerline and a galley fully aft. Two stairways between the main and 01 decks are along the centerline amidships and aft. The aft stairway has a wheelchair lift. A 01 deck is arranged with dining seating and a beverage bar and heads aft. The 02 offers open air seating and access to the wheelhouse.

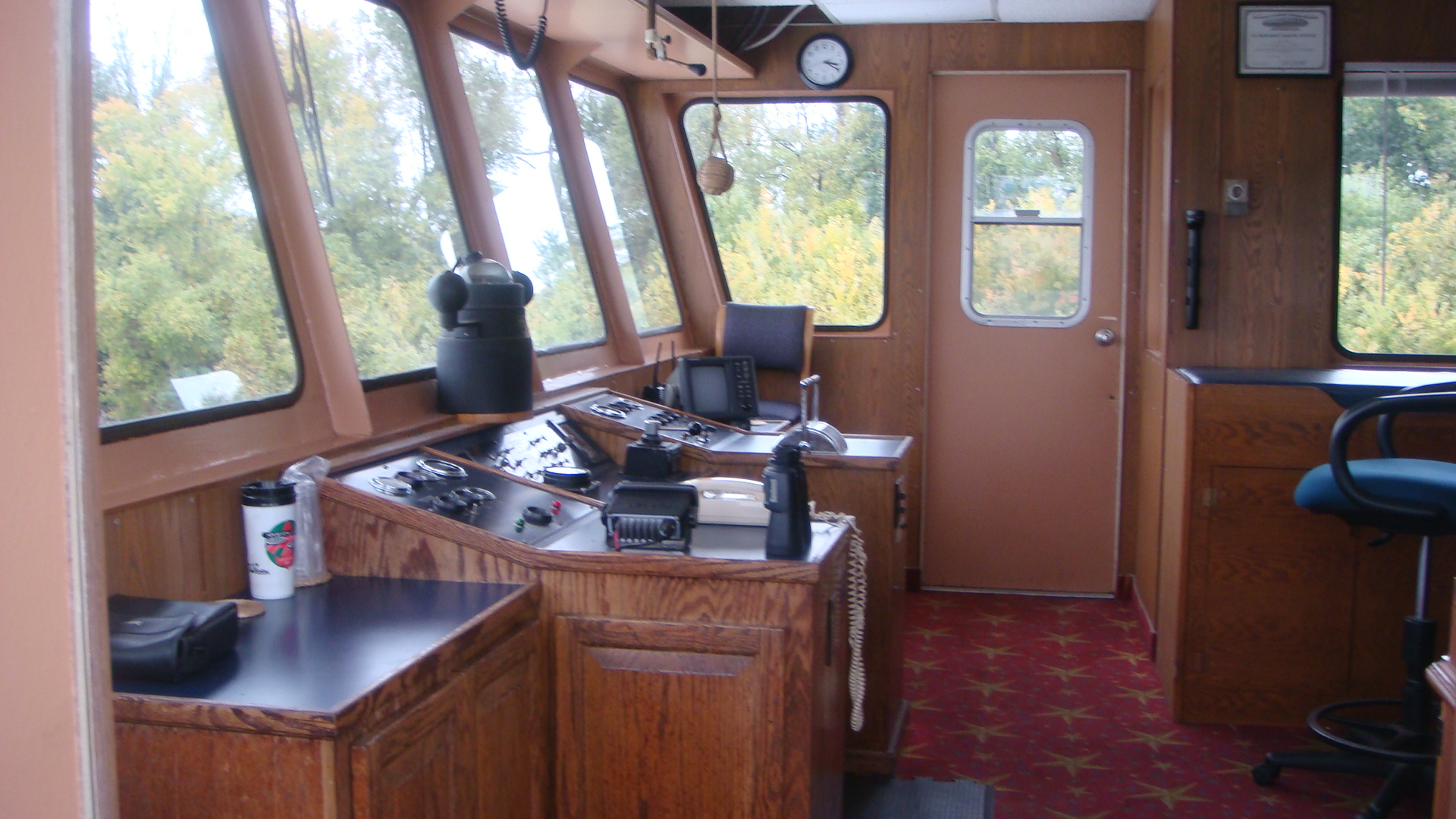

Wheelhouse

• Control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters, high water bilge alarm)
• Pneumatic clutch and throttle controls
• Port and starboard wing controls
• Fog bell
• Kahlenberg trumpet horn
• Carlisle & Finch lever controlled searchlight
• Rudder indicator
• Windshield wiper
• Helm seats
• Standard Eclipse and ICOM model ICM-402 VHF/FM marine radios with antennas
• Standard Horizon
• Furuno model 1761 radar system
• Ritchie magnetic compass with lighted binnacle
• Eight station intercom system
• Wing controls (port/starboard)

Salon (Main Deck)

• 28 tables (36” x 36” )
• 141 interior dining chairs (stacking)
• Recessed lighting
• Dance floor
• Hot and cold buffet
• DJ center (SSM model 1750 mixer, Yorkville model SR-300 power amplifier, Rane model CP64)

Galley

• Stainless steel prep tables
• Stainless steel three partition sink
• Stainless steel single partition sink
• Alto Sham model 1000-TH-1food warmers
• Two Vulcan model VC4ED electric ranges
• One Proofer model HD6ALX steamer
• Two True double door refrigerators
• Amana microwave oven
• Keystone EcoLab dishwasher
• Exhaust fan

Salon (01 deck)

• 22 tables (24” x 24”)
• 11 tables (24” x 40”)
• 5 tables (30 diameter)
• 111 interior dining chairs (stacking)
• Recessed lighting
• Dance floor
• Wait station (Bunn coffee machine, hot and cold stainless steel buffet)
• DJ Center (Vistax model PCV-150, Yorkville model SR 300 amplifier, Yamaha model 4220 amplifier, Rackrider model RR-15NL power conditioner, Rane model CP64 commercial processor)

Beverage Bar

• Metal top
• Three partition stainless steel sink
• Two stainless steel cocktail stations with two soda guns
• Refrigerator
• True model TD-36-12-S cooler
• Frozen drink machine
• 18’ stainless steel speed rails

Beverage Bar (01 Deck)

• Removed
• Plumbed

Beverage Bar (02 Deck)

• Metal top
• Plumbed

Electrical

• Ship service 110.0 kW Lima generator and two 80 kW Lima generators each powered by a Cummins 6VT5.9 6 cylinder marine diesel engine with fuel filter, keel coolers
• Hours 15,000 port, 9,302 starboard, starboard aft 4,745 Janruary 2016
• Ship to shore power switch
• 100 AMP/ 240 VAC shore power service
• 115 VAC exterior and interior perimeter lighting
• 120 VAC/12 VDC lighting
• 120 VAC duplex outlets
• 3 12 VDC 8D enclosed heavy duty batteries
• Two battery isolation switch
• Automatic 40 amp battery charger with DC meter
• 24 ton water cooled reverse cycle heat pump system with two stage electric heat stations
• Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

Hull, Superstructure and Decks

• 3/8” steel plate hull
• 1/4” steel plate deckhouse
• Insulated deckhouse
• Eight compartments formed by seven transverse bulkheads
• 8” fan nosed rub rail
• Boarding gates: two amidships on the main deck
• Eight 20” kevels, three steel Sampson posts
• Deck fittings:
  • Electrical: Amidships port
  • Waste: Amidships port
  • Water: Amidships port/star
  • Fuel: Amidships port/star

Mechanical Equipment and Engine Details

• Two 8 cylinder naturally aspirated 350 HP Cummins NTA-855 marine diesel engines, fuel filters, seawater strainers with seacocks
• Engine Hours: port – 15,105, starboard – 10,608
• Johnson keel cooling system
• Tonaco model TM-8285 3.5:1 reverse reduction gears
• Two 4” stainless steel propeller shafts
• Engine room insulation
• Two 48” four blade stainless steel propellers
• 80 gallon water heater

Heads

The vessel is equipped with _ heads each contains the following:

• Female head below decks contains two partitioned toilets, two sinks
• Male head below decks contains one partitioned toilets, one urinal, one sink
• Female and Male head on the 01 deck contains a toilet and sink

Safety Equipment

• 500 type II adult size personal flotation devices
• 50 type II child size personal flotation devices
• 3 Jim Buoy 30” life ring with line
• One illuminated float light
• One 20 lb. dry chemical fire extinguisher
• Pyrotechnic distress signals
• 2 fire stations including: UL approved rubber lined hoses with brass or bronze fittings, brass or bronze nozzles, brass or bronze hose bibs.
• Fire axe
• Danforth style anchor with chain and 600’ nylon line

Finish

• Exterior coating: High Gloss
• Exterior decks: Carpet
• Interior decks:
  • Salon: Carpeting
  • Heads: Ceramic
  • Galley: Epoxy
  • Bar: Aztec
  • Wheelhouse: Carpet
• Headliner: Vinyl
• Interior Bulkheads:
  • Salon: Vinyl
  • Heads: Ceramic
  • Galley: Epoxy

Remarks

The M/V THE STAR is in good condition. The yacht offers a sleek style and wonderful viewing for passengers. The exterior deckhouse was blasted and recoated in 2015 and the hull was blasted and recoated in 2016.

Exclusions

N/A
