General Specifications
Insert Official Number 1189123 in the Vessel Number box and click “search”
| Name | SIR WINSTON |
| Style | Yacht |
| Builder | Keith Marine (hull 153) |
| Architect | DeJong & Lebet |
| Hull | Displacement |
| USCG Certified | Yes |
| USCG Dry Dock | November 2025 |
| Passenger Capacity | 365 |
| Gross Tonnage | 98 (I-782) |
| Net Tonnage | 86 (I-249) |
| Speed (approx.) | Maximum: 11 kts @ 2,000 RPM |
| Built | 2007 |
| LOA | 128’ |
| LWL | 98.4’ |
| Beam | 34.7’ |
| Hull Depth | 9.9’ |
| Freeboard | 5.5’ |
| Draft | Water 6’ Air Draft: 48′ |
| Displacement | 276.61 long tons |
| U.S.C.G. Official Number | 1189123 |
| Route Certification | Lakes, Bays and Sounds |
| Hull Material | Steel |
| Deckhouse Material | Steel |
| Tank Capacities | Fuel: 4,400 gallons Waste: 2,400 gallons Potable Water: 3,200 gallons |
WHEELHOUSE
- Control station with John Deere engine instrumentation.
- ZF clutch and throttle control system.
- Wing controls – port and starboard
- ComNav 222 remote steering
- Teleflex Hynautic hydraulic electric steering
- ComNav 2001 GPS and autopilot
- Datamarine digital depth sounder
- ICOM model M412 VHF/FM marine radio
- ICOM model M504 VHF/FM marine radio
- ICOM loud hailer
- Tank Tender – all fluids
- Rudder angle indicator
- Ritchie compass
- Intercom system
- Three (3) alarm systems
- Dell computer with Nobeltec GPS map system
- Admiral satellite navigation
- JRC JMA 2300 series 48-mile radar
- KVH satellite TV system
- Garmin Echomap plus 74CV
- Two remote controlled Carlisle Finch search lights
- Logia model LOWSC510WB weather station
SALON (MAIN DECK)
- 45” 4K television
- 65” 4K television
- Four leather couches.
- 4 leather lounge chairs
- 8’ x 8’ dining table with 8 stools
BEVERAGE BAR (MAIN DECK)
- Two stations
- Stainless steel sink
GALLEY (MAIN DECK – FORWARD)
- Jackson 60-cycle PH dishwasher
- Louisville commercial custom walk-in refrigerator
- Samsung double door refrigerator with icemaker
- Frigidaire freezer
- Whirlpool chest freezer
- Whirlpool range and convection oven
- Three (3) Southbend convection ovens
- Two Whirlpool washers and two Whirlpool dryers
- Magic Chef microwave oven
- Three partition stainless steel sink
- One stainless steel sink

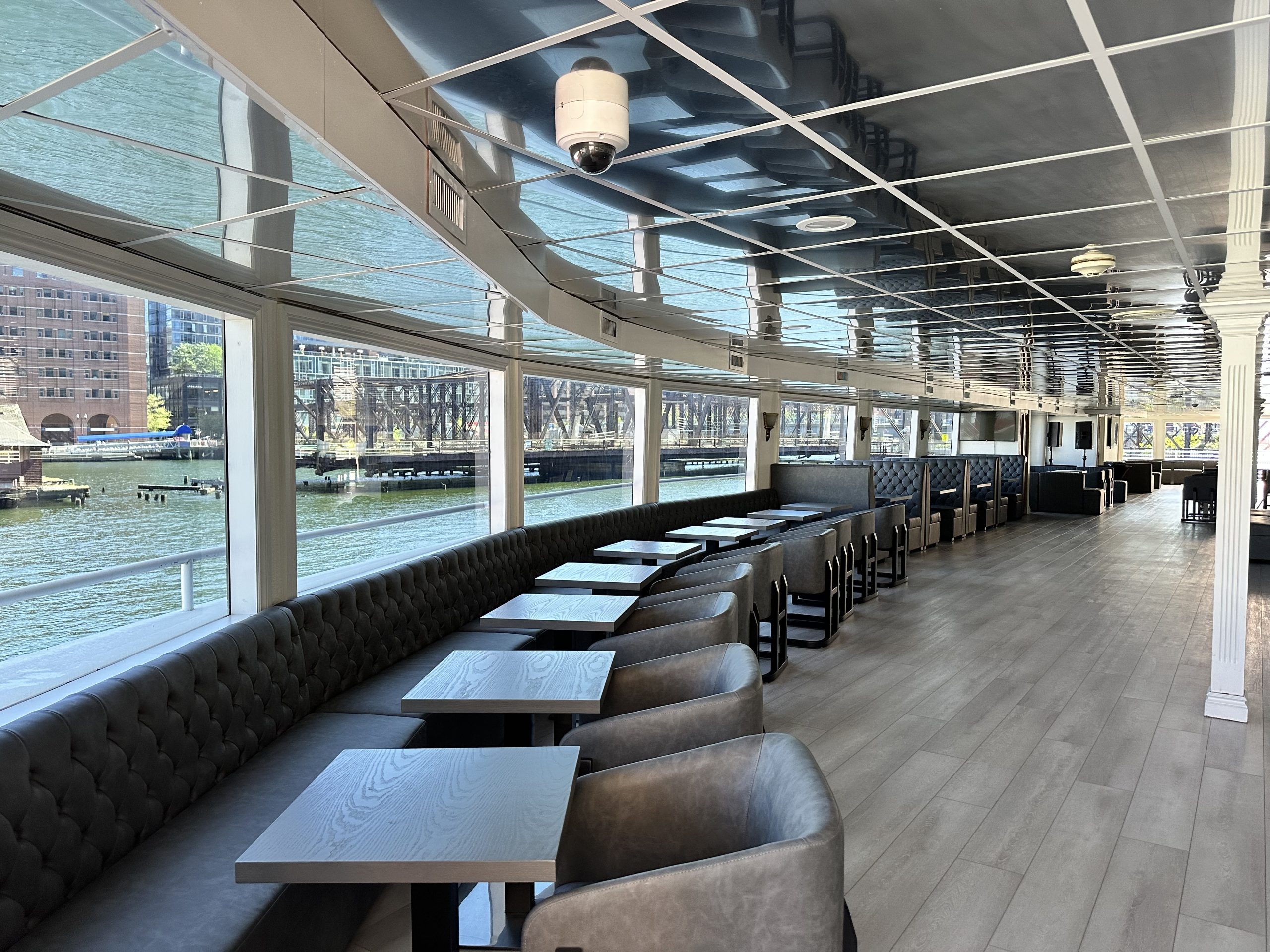

SALON (01 DECK)
- Custom banquette seating along port, starboard and centerline (seating for 150)
- Three 45” 4K televisions
BEVERAGE BAR (01 DECK)
- Bebor ice machine
- Stainless steel sink

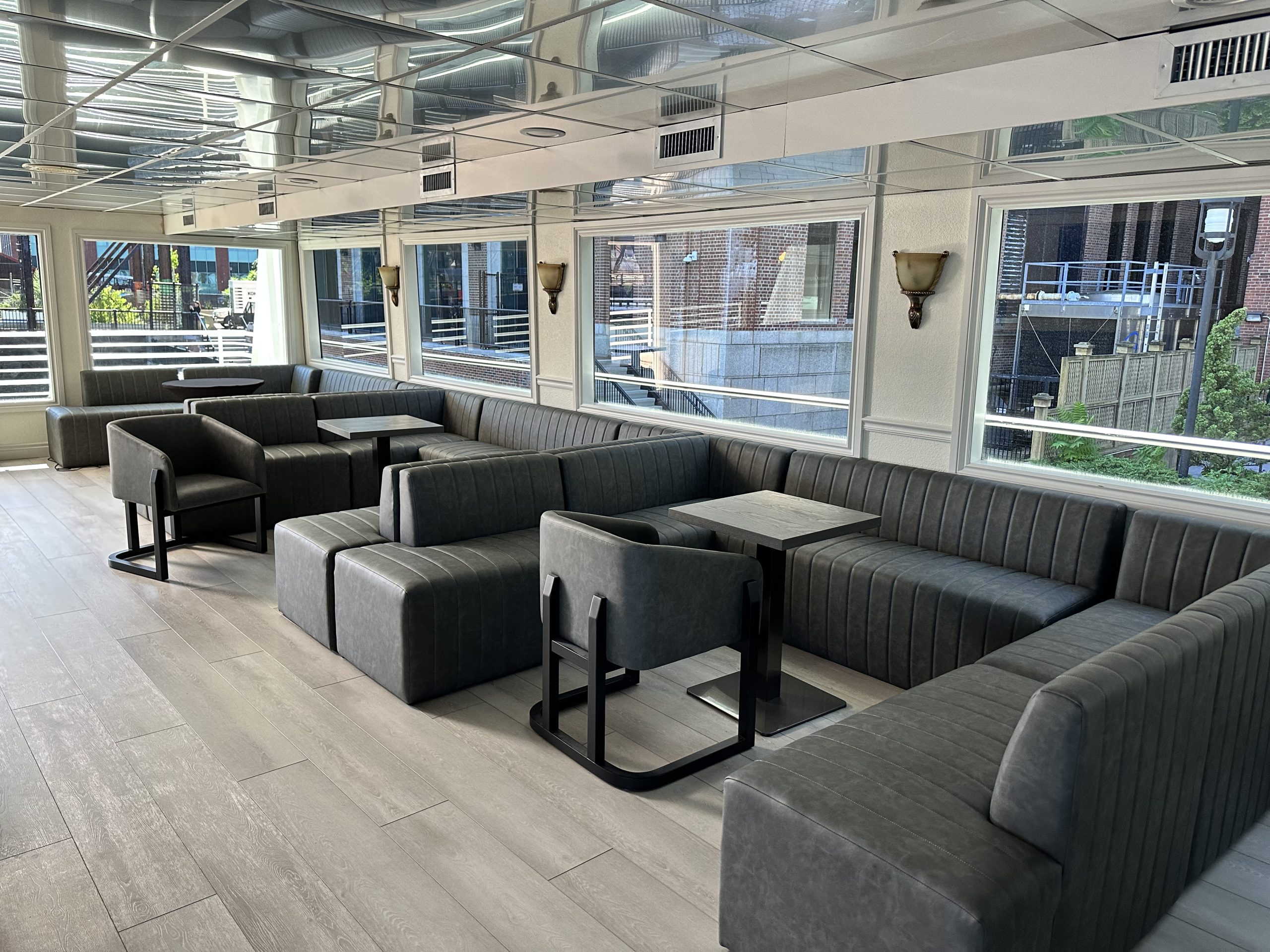

SALON (02 DECK)
- 45” 4K television
- Crown model CDi4/1/1200 amplifier
- Shure microphone system
- LED remote controlled light system
- Four leather couches
- Four hi top light up acrylic tables
- Two leather chairs
- Two leather ottomans
BEVERAGE BAR (02 DECK)
- Mahogany bar
- Three partition stainless steel sink
- Single partition stainless steel sink
- True model TD-65-24 cooler
- True model TBB-24-60G-HC-LD cooler
- Scotsman model CM3 800 lb. ice machine
- Two Square registers with Star C-Print3 model MCP32LB receipt printers
BEVERAGE BAR (02 DECK)
- Stainless steel ice bin
- Stainless steel double partition sink.
- Two Avantco food warmers

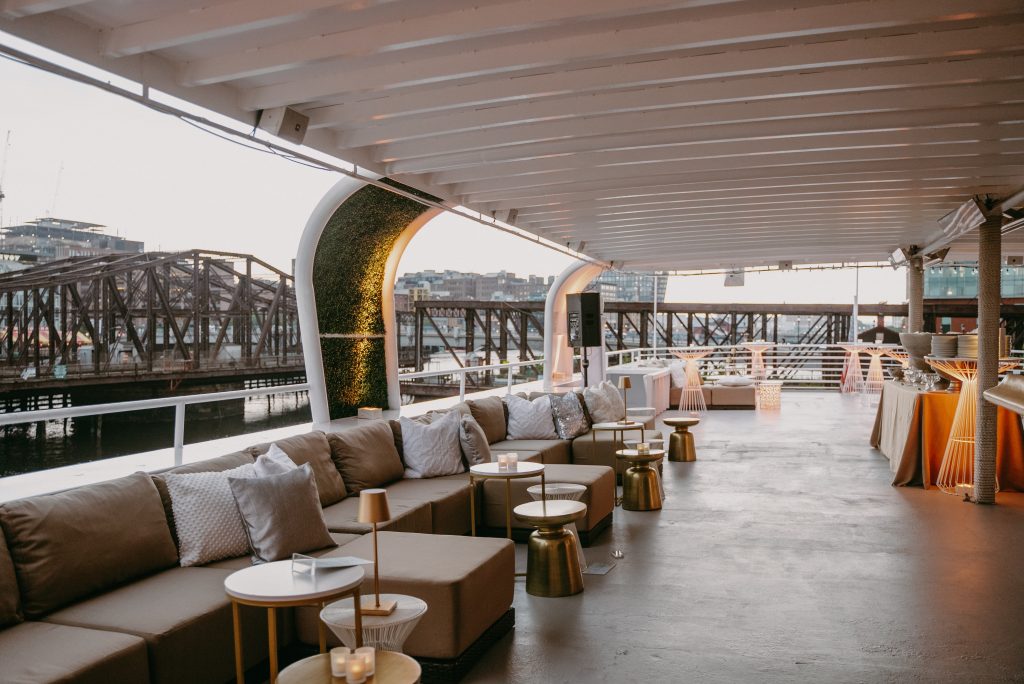

SKY DECK (03 DECK)
- Four Madbury Road ratan sofas
- Two Madbury Road 3/5 circular sofa sections
- Eight Madbury Road high top tables
- Eight Madbury Road high top chairs
- Twelve 10” JBL speakers
- Two 24” JBL subwoofers
- Four Bromic 3400-watt marine grade exterior heaters
BEVERAGE BAR (03 DECK)
- Four Madbury Road ratan sofas
- Two Madbury Road 3/5 circular sofa sections
- Eight Madbury Road high top tables
- Eight Madbury Road high top chairs
- Twelve 10” JBL speakers
- Two 24” JBL subwoofers
- Four Bromic 3400-watt marine grade exterior heaters
STATEROOMS (BELOW DECK)
- The five En Suite staterooms include:
- Berth
- Drawers/locker
- Television
- Bathroom with toilet and shower
ELECTRICAL SYSTEM
- Two ship service 99 kW Marelli generators each powered by a dedicated John Deere model 6068 marine diesel engines with fuel filter, seawater strainer and seacock.
- Hours: port 8,168, Starboard: 7,908 – January 2025
- Ship to shore power switch.
- Two 100 AMP/ 125 VAC shore power services – single phase
- 120 VAC/12 VDC lighting
- 120 VAC duplex outlets
- Five 8D enclosed heavy duty batteries.
- Charles model 93-12305SP-A battery charger
- Perko battery isolation switches
- Ten Florida Heat Pump model GT062-1VTN 3-ton reverse cycle heat pumps units – two per deck
- Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)
HULL, SUPERSTRUCTURE AND DECKS
- ¼” to engine space, 5/16” aft steel hull bottom
- ¼” steel side and deck plate
- Seven watertight compartments formed by six transverse bulkheads. – one watertight door
- Three hydraulically operated mooring spuds
MECHANICAL EQUIPMENT AND ENGINE DETAILS
- Two 6-cylinder 375 HP John Deere model 6081AFM75 tier 2 marine diesel engines, fuel filters, seawater strainers, heat exchanger with seacocks.
- Hours: Port: 4,753, Starboard: 4,795 – Starboard January 2025
- Engine room insulation
- Two ZF model ZF301A 3:1 reduction marine gear
- 2 1/2” stainless steel propeller shafts
- 34” x 24” five blade bronze Michigan Wheel propellers
- 12’ bow thruster powered by a 115 hp John Deere model 6068 marine diesel engine. Hours: 1,178 January 2025
- Concord elevator
- 80 and 55 gallon water heaters
HEADS
- The vessel is equipped with eight public unisex heads, two per passenger deck.
SAFETY EQUIPMENT
- 374 type I adult size personal flotation devices
- 38 type I child size personal flotation devices
- Three 24” life rings one with line
- One self-actuated rescue light
- ACR 406 MHz EPIRB (Type 1)
- One 300 lb. carbon dioxide in engine room and one 1000 cubic foot halocarbon on the thruster space
- Pyrotechnic distress signals
- Four fire stations 1 1/2” UL approved rubber lined hoses with brass or bronze fittings, two brass or bronze nozzles, two brass or bronze hose bibs. The bilge pump system operates the fire system also.
- Fortress 125 lb. anchor
- Davit with Furnas switch capable of holding a 22′ tender/life raft
FINISH
- Exterior coating: Coating
- Exterior decks: Non-skid
- Interior decks: NuCore plank
- Heads: Ceramic
- Interior Bulkheads: Textured aluminum Panel
- Headliner: polished aluminum
Accommodations & Layout
The yacht has five decks with 18,000 sq ft usable space. There are five En Suite staterooms, thirteen heads, galley with walk-in refrigerator and elevator. There are also four beverage bars onboard. The open-air sky lounge (03 deck) has heating, patio lounge seating and bistro tables with a beverage bar. The 01 deck was entirely renovated in 2023. The yacht has separate air conditioning units for each deck, along with tinted glass windows for improved energy efficiency. Each deck can be accessed by a stairwell amidships, and aft or an elevator.
Remarks

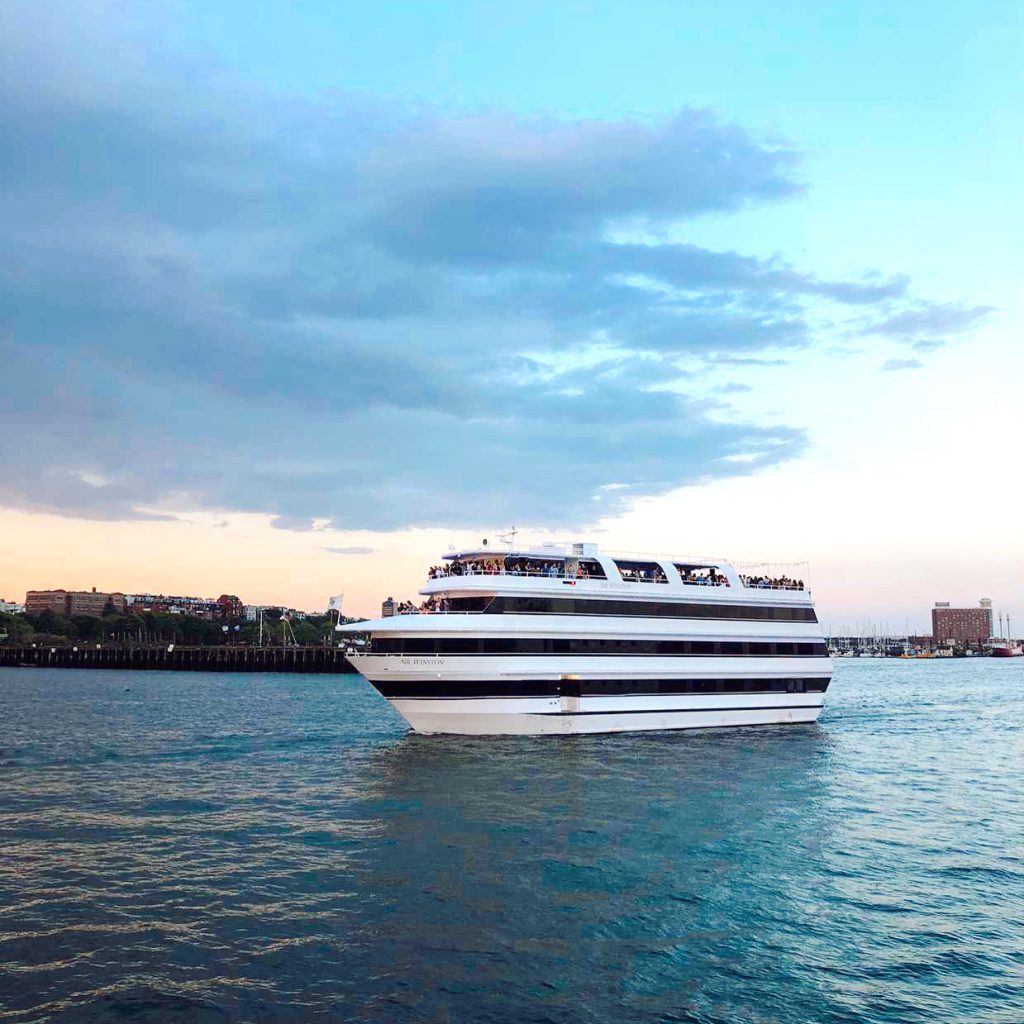

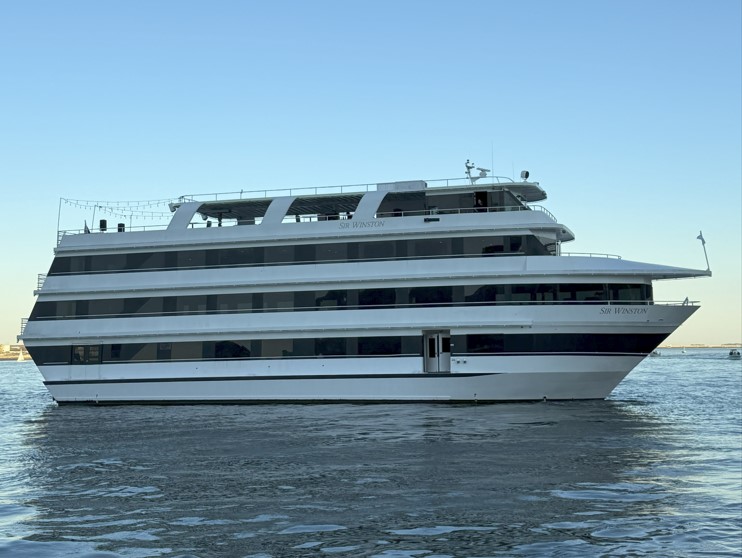

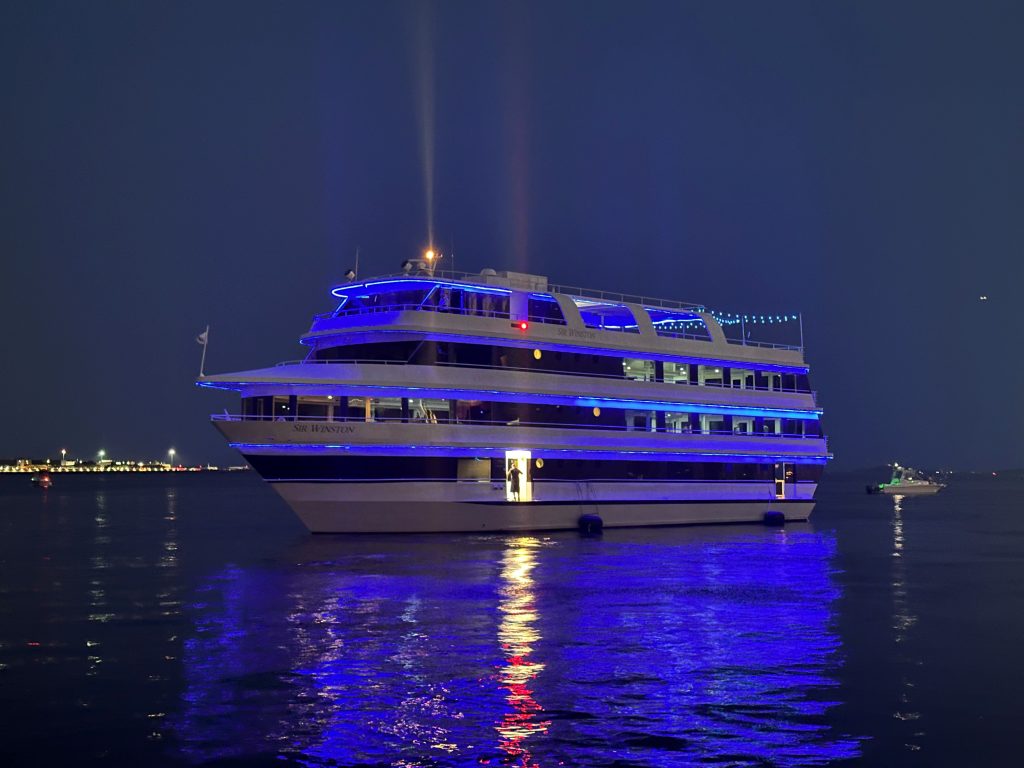

Discover the M/V SIR WINSTON: a 128-foot, five-deck event yacht in exceptional condition that’s truly turnkey and ready for business. Since ownership, the vessel has undergone significant renovations on every deck, combining modern luxury with exceptional functionality. From the newly custom-furnished dining deck and sky lounge with a full wet bar to professional-grade upgrades like LED RGB lighting, luxury flooring, and a high-end audio system, this yacht has it all.
With an estimated replacement cost of $12M, SIR WINSTON offers exceptional value as a ‘plug-and-play’ vessel—no additional renovations needed. Designed by DeJong & Lebet and built by Keith Marine, it’s a rare gem of engineering and design, blending elegance with practicality. Whether for cruising, dining, or hosting, SIR WINSTON delivers an unparalleled experience, all set and ready to go.
Exclusions
Personal belongings
Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
