General Specifications
Insert Official Number 281864 in the Vessel Number box and click “search”
| Name | Miss Christin |
| Style | Tour/Sightseeing |
| Builder | Erie, Pa Classification: Subchapter T |
| Hull | Displacement |
| USCG Certified | DUE |
| USCG Dry Dock | 2022 |
| USCG Official Number | 281864 |
| Route Certification | Rivers |
| Passenger Capacity | 173 |
| Gross Tonnage | 93 |
| Net Tonnage | 63 |
| Speed (approx.) | 10 kts. Cruising, Max 12-14kts |
| Built | 1960 |
| LOA | 67′ |
| LWL | 63.75′ |
| Beam | 19′ |
| Hull Depth | 8.3′ |
| Freeboard | 5.82′ |
| Draft | 8′ Air Draft: 24.66′ |
| Displacement | 25.15 Tons |
| Deckhouse Material | Aluminum |
| Hull Material | Aluminum |
| Tank Capacities | Fuel: 1015 gallons Waste: 110 gallons Potable Water: 30 gallons |
ACCOMMODATIONS AND LAYOUT
This vessel is arranged with boarding at the stern port and starboard sides on the main deck. The helm is located forward on the 01 deck and is open to the passenger space. There is inward facing perimeter seating along the side bulkheads of the main deck and 01 deck. The deck space is open on both decks. There are two heads located aft on the main deck.

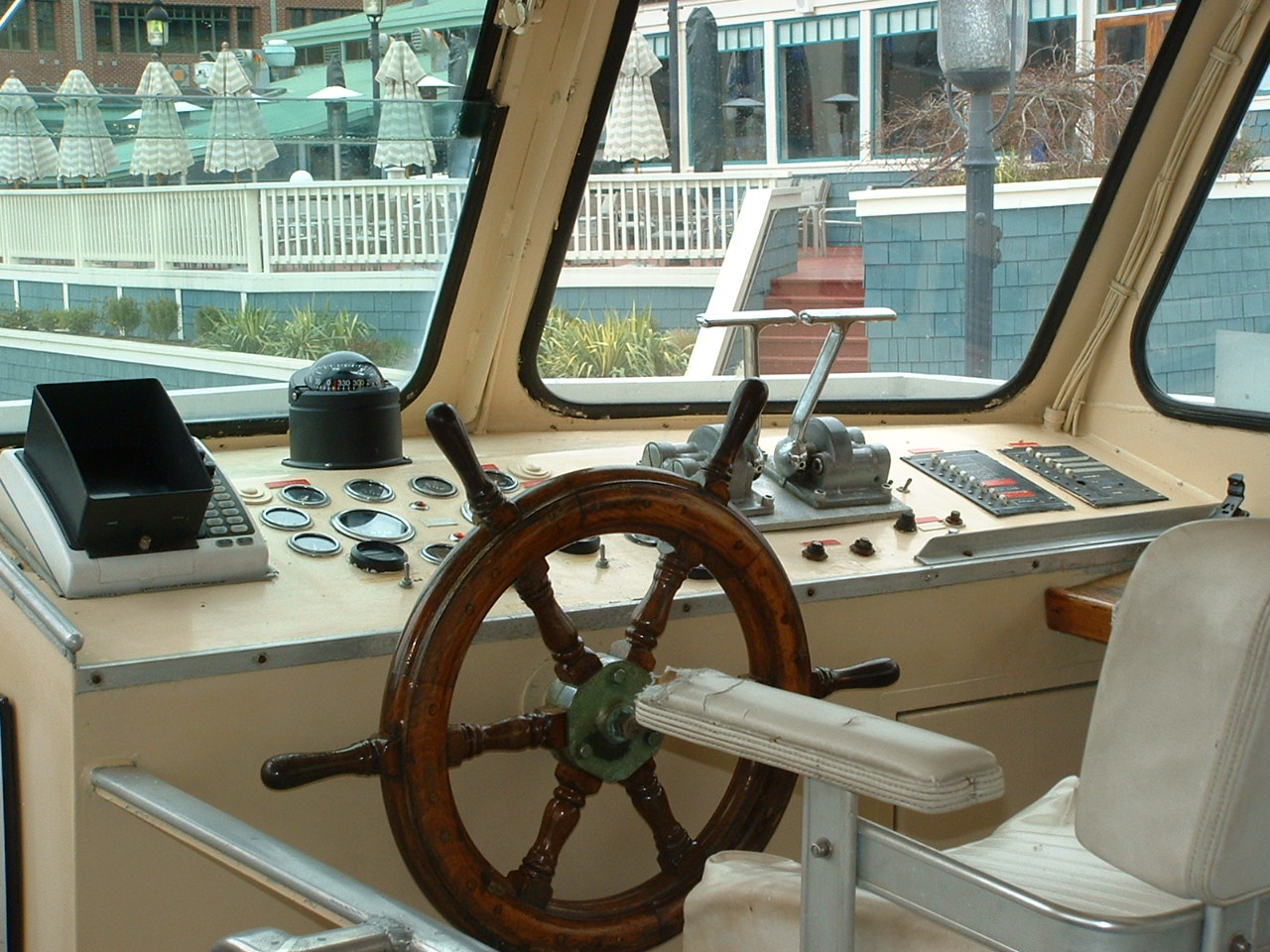

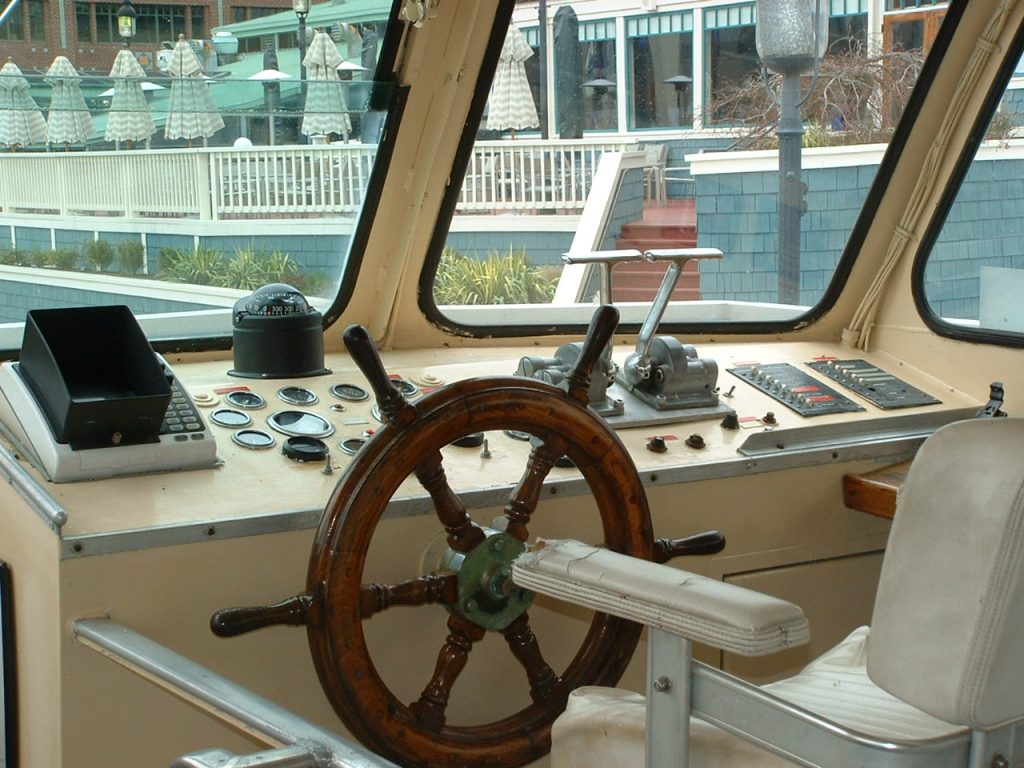

HELM STATION
- Em-Trak Model 100 AIS
- Garmin 4208 Chart plotter with integrated radar
- Ritchie Compass HD Series
- Buell-Strombos Horn, single trumpet
- Uniden VHF Radio, Solara DSC
- Marinco windshield wiper, MRV Series-12vdc
- Fog Bell
- Spotlight
- Hydraulic steering, pump make unknown
- Kobelt Pneumatic 2545 Series throttle and gear controls
- Analog engine gauges, tach, oil pressure, water temp, gear pressure, volt meter
ELECTRICAL SYSTEM
- (1) Caterpillar 3054 45kw generator 120/208VAC 3ph, 12,735 hours
- 32vdc main engine starting
- 12vdc house power
- Battery disconnect switches
- 8D batteries
- Newmar model PT-32-25W 32vdc battery charger
- Aqua Signal 12vdc navigation lights port, starboard & stern lights. Masthead and Anchor light Perko navigation lights.

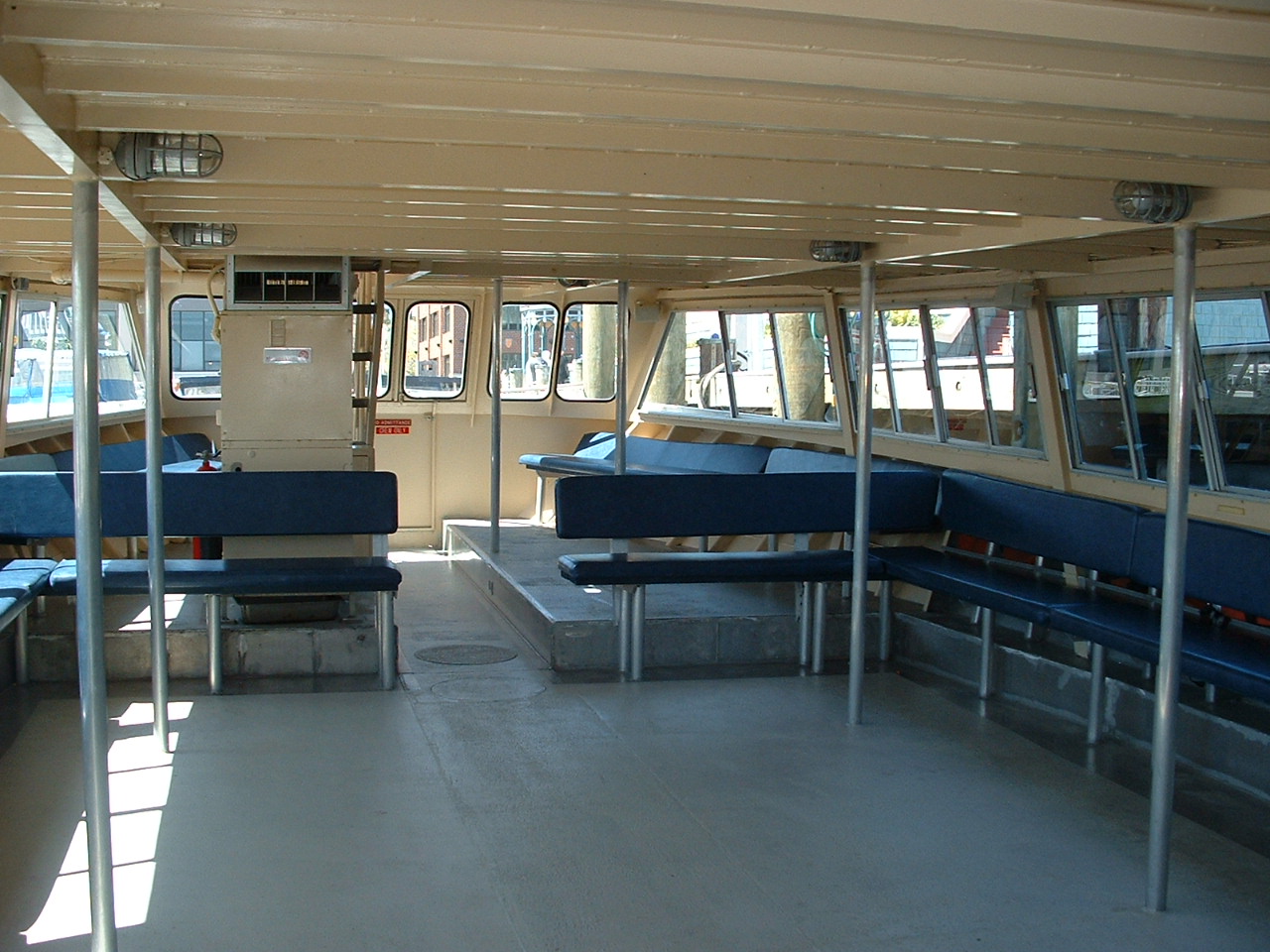

MAIN DECK SALON
- Open deck with built in perimeter seating facing inboard
- Climate controlled deck HVAC
- 2 public heads at aft of the space
- Boarding through stern door center line
BEVERAGE BAR/CONCESSION STAND (MAIN DECK)
- Located port side aft, approx. 6’x4’ counter top
- True model TBB-3 beverage cooler
01 DECK SALON
- Open deck space with built in perimeter seating facing inboard
- Covered deck with Helm Station located at forward end of salon in the passenger space
HULL, SUPERSTRUCTURE AND DECKS
- Welded Aluminum Hull, 1/4” bottom plate & 3/16” side shell plate
- 6 watertight compartments formed by 5 transverse bulkheads
- Boarding gates located at stern port and starboard sides
MECHANICAL EQUIPMENT AND ENGINE DETAILS
- (2) Detroit 8V-71’s, 32vdc Starboard Main S/N 8FV2614, Port Main S/N 8FV2601
- Gears: Allison MH with Watson Flagg V-Drives
- Starboard engine hours 9354, Port engine hours 9354
- Prop size 35 x 28
- Compression style stuffing boxes
- HVAC System for main deck cabin area. 01 deck is not climate controlled
- (1) Carrier Model# 24ABB348A510
- (1) Allied Air Enterprises model# 4SCU13LC160T-1
- (1) International Comfort Products AHU model# FEM4P6000A
- (1) Carrier AHU model# FX4DNF049
- Honeywell Thermostats
- GROCO model PST-1 potable water pump/accumulator-2 gallon
- 6 gallon water heater 1500 Watt
- 3 gallon Kobalt (Lowes) air compressor model LK3197
HEADS
The vessel is equipped with two public heads:
- (2) Microphor/Wabtec LF-310 marine toilets
- Sinks, toilet paper and paper towel dispensers
SAFETY EQUIPMENT
- 177 Type I adult size PFD’s
- 18 Type I child size PFD’s
- 1 30” ring buoy with float light and painter line
- 1 Fire pump, 1Fire station
- Fire Extinguishers
- 1) 10-B-C
- 1) 2-A
- 2) 40-B-C
- Pyrotechnic distress signals
- Fire Axe
- Man overboard recovery ladder
FINISH
- Exterior coating: Epoxy paint coating
- Interior:
- Main deck: carpeted deck, painted walls and bulkheads
- 01 deck: painted non-skid deck, painted walls and overhead
EXCLUSIONS
N/A
Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
