Majestic

General Specifications

Insert Official Number 1124247 in the Vessel Number box and click “search”

Name	Majestic
Style	Yacht
Builder	Skipperliner Industries, Inc.
Architect	Timothy Graul
Hull	Displacement
USCG Certified	DUE
USCG Dry Dock	DUE
Passenger Capacity
Gross Tonnage	76
Net Tonnage	51
Speed (approx.):	Cruising: 7 knots @ 1,400 RPM Maximum:9 knots @ 2,200 RPM
Built	2002
LOA	96′
LWL	82.2′
Beam	20′
Hull Depth	6.0′
Freeboard	3.1′
Draft	Water 4’3″ Air Draft: 30′
Displacement	68 long tons
Official Number	1124247
Route Certification	Lakes Bays and Sounds
Hull Material	Steel
Deckhouse Material	Steel
Tank Capacities	Fuel: 975 gallons Waste: 525 gallons Waste: 116 gallons (grey) Potable Water: 425 gallons

ACCOMODATIONS AND LAYOUT

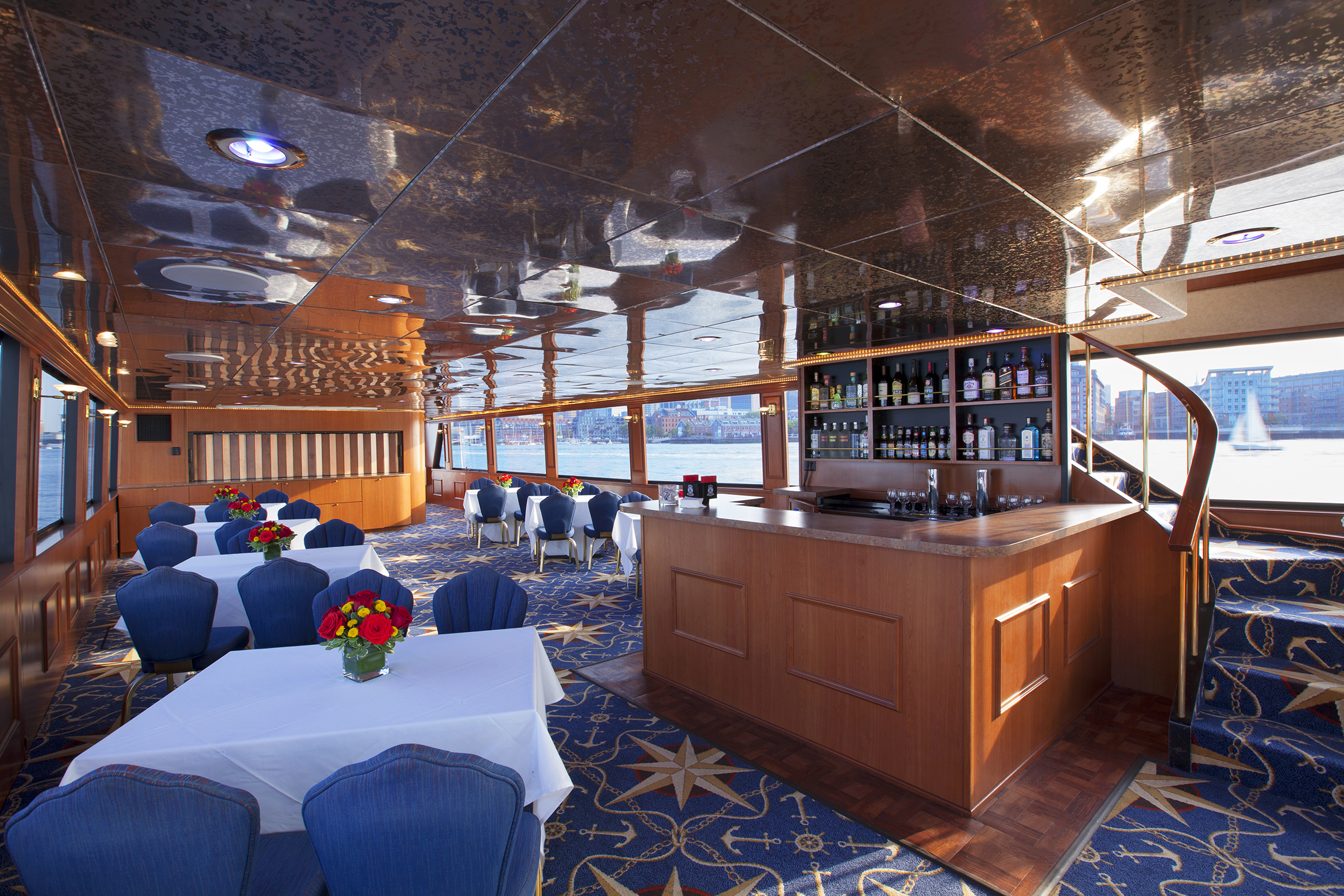

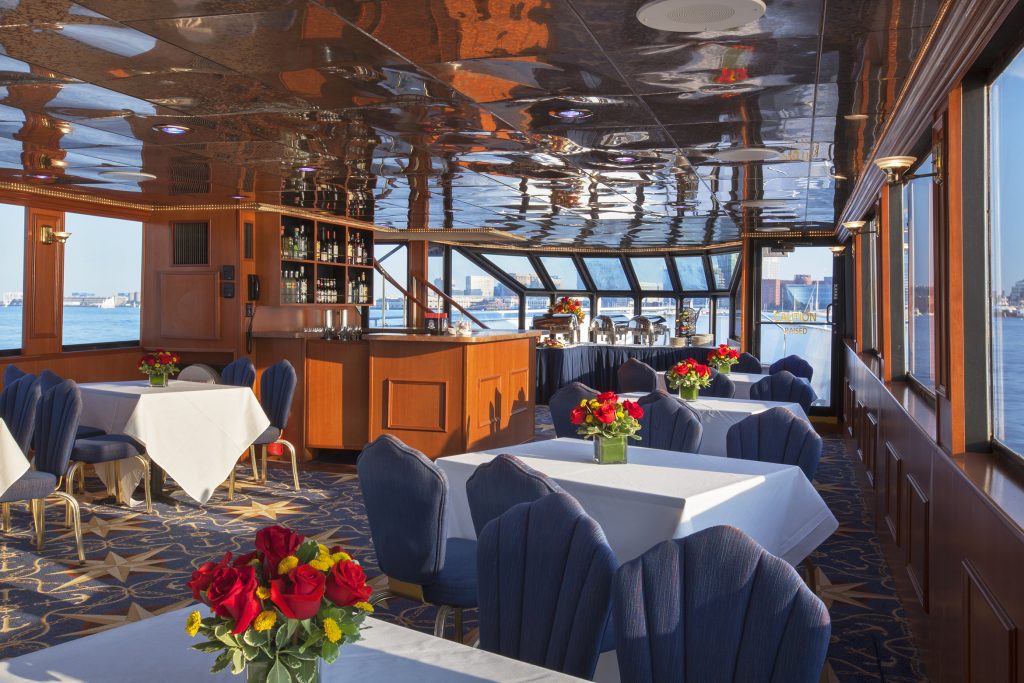

The vessel is arranged with a door off the starboard bow and port stern. The main deck is arranged with a private dining suite forward a beverage bar forward on port with dining throughout a galley aft on starboard with heads abaft of the galley. Access between the main and 01 decks is forward on port (interior) and starboard aft (exterior). The 01 deck allows for the pilot house forward a beverage bar both aft of the wheelhouse on starboard with climate-controlled dining. The fore deck and 01 decks aft offer open-air seating.

WHEELHOUSE

• Control station with VDO engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
• Bilge alarm system
• Hynautic hydraulic steering system
• AutoNav rudder indicator
• Three windshield wipers
• Two ICOM model IC M412 VHF/FM marine radios with antennas
• Uniden model VM200 Class B transponder
• Raymarine model SL 70 C radar
• Ritchie compass
• Koden Class A AIS
• ZF Micro commander clutch and throttle controls
• Fog bell
• Dual trumpet horn
• Carlisle Finch remote controlled searchlight
• Standard Horizon model 4LH-300C loud hailer (wheelhouse/bar/galley/engine room)
• Todd helm seat
• Shure model SCM26 audio mixer, Two Crown model XLS 2000 amplifiers and Yamaha model CDC-585 CD player
• Weldex camera

SALON (01 MAIN)

• 27 chairs (stacking)

GALLEY

• Laminate surface counter
• Stainless steel three partition sink
• Two Moffat Turbo Fan convection ovens
• One Winston Industries warming cabinet
• Superior model AVEN6ER LT dishwasher
• Kenmore 1 hp garbage disposal
• Two TurboAir double door under counter refrigerators
• One stainless steel single partition sink

BEVERAGE BAR (MAIN DECK)

• Laminated top
• Stainless steel three partition sink
• Stainless steel sink
• Stainless steel ice bin
• Two TurboAir under counter refrigerators
• True 2 keg cooler
• Bunn coffee machine

BEVERAGE BAR (01 DECK)

• Solid surface top
• Stainless steel sink

ELECTRICAL SYSTEM

• One ship service 70 kW Marathon Magan Plus generator model 363CSL1607powered by a 4-cylinder John Deere model 4045 marine diesel with fuel filter, seawater strainer and seacock (NEW 2015)
• Hours: 21,385 August 2025
• Ship to shore power switch
• 100 AMP 120/ 240 VAC shore power service
• 115 VAC exterior and interior perimeter lighting
• 120 VAC/12 VDC lighting
• 120 VAC duplex outlets
• 4 12 VDC 8D enclosed heavy- duty batteries – engine room
• 1 12 VDC 8D enclosed heavy- duty batteries – wheelhouse
• Three Perko battery isolation switches
• Charles automatic 60-amp battery charger
• Cruisair water cooled reverse cycle heat pump system with SMX II controls
• 24 VDC manifold bilge system
• Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

HULL, SUPERSTRUCTURE AND DECKS

• 3/16” steel plate hull
• Ten-gauge steel plate deckhouse
• Insulated deckhouses
• Five watertight compartments formed by four transverse bulkheads
• Boarding gates: two forward and two aft
• Stair treads
• Stainless steel thresholds
• Eight 15” stainless steel kevels
• Deck fittings:
  • Electrical: port/star
  • Waste: port/star
  • Water: port/star
  • Fuel: port/star

MECHANICAL EQUIPMENT AND ENGINE DETAILS

• Two 6-cylinder turbo charged after cooled 350 HP @ 2300 RPM Caterpillar model 3126 marine diesel engines, fuel filters, seawater strainers with seacocks
• Hours: 10,316 port, 10,996 starboard
• September 2025
• ZF model 280-1 A 2.46:1 marine gear
• Engine room insulation
• Two 4 blade propellers
• 2 stainless steel Aquamet shafts
• Cofferdam and 24 VDC pump for each shaft log
• ZF model 85 2.5:1 reduction gears
• 20-gallon water heater (main deck)
• 20-gallon water heater (01 deck)
• Yanmar model 3JH3E bow thruster powered by a Yanmar model SD 40 marine diesel engine.  Hours 3,549 September 2025
• Reverso 24 VDC oil drain system (propulsion and generator engines)
• Water system with accumulator tank
• Craftsman25 gallon air compressor

HEADS

The vessel is equipped with two public heads:

• Toilet (2 – female)
• One urinal in the Men’s head
• One sink and faucet
• Toilet paper dispenser
• Paper towel dispenser

SAFETY EQUIPMENT

• 141 type I adult size personal flotation devices
• 19 type I child size personal flotation devices
• Two 30” life rings one with line
• Five self-actuated rescue lights
• Five B-II and One B-I 10 lb. dry chemical fire extinguisher
• Pyrotechnic distress signals
• Two fire stations including: two 1 1/2” UL approved rubber lined hoses with brass or bronze fittings, two brass or bronze nozzles, two brass or bronze hose bibs. The bilge pump system operates the fire system also
• Fire axe
• Bruce 66 lb. anchor
• Man overboard recovery ladder

FINISH

• Exterior coating: Coating
• Exterior decks:
• Interior decks:
  • Salon: Carpeting
  • Heads: Vinyl
  • Galley: Altro
  • Bar: Altro
  • Wheelhouse: Carpeting
• Headliner: Gage
• Interior Bulkheads:
  • Salon: Wood panel (cherry style)/carpet
  • Heads: Coated
  • Galley: Panel

REMARKS

The MAJESTIC is in fair condition. The yacht offers a sleek style and wonderful viewing for passengers.  The images are not representative of current condition.

EXCLUSIONS

N/A
