John James Audubon

General Specifications

Insert Official Number 646195 in the Vessel Number box and click “search”
General Arrangements

NameJohn James Audubon
StyleYacht
BuilderBlount Boats
HullDisplacement
USCG CertifiedDue
USCG Dry DockDue
Passenger Capacity525 (protected)/517 (partially protected)
Gross Tonnage98
Net Tonnage65
Speed (approx.)12 knots
Built1982
LWLLOA: 124′ LWL: 102.6′
Beam32′
Hull Depth6.5′
DraftWater 6.5′ Air 41′ (w/o mast 30’/stack 33′)
U.S.C.G. Official Number646195
Route CertificationPartially Protected
Hull MaterialSteel
Deckhouse MaterialSteel
Tank CapacitiesFuel: 2,000 gallons
Waste: 2,000 gallons
Potable Water: 1,000 gallons

ACCOMMODATIONS AND LAYOUT

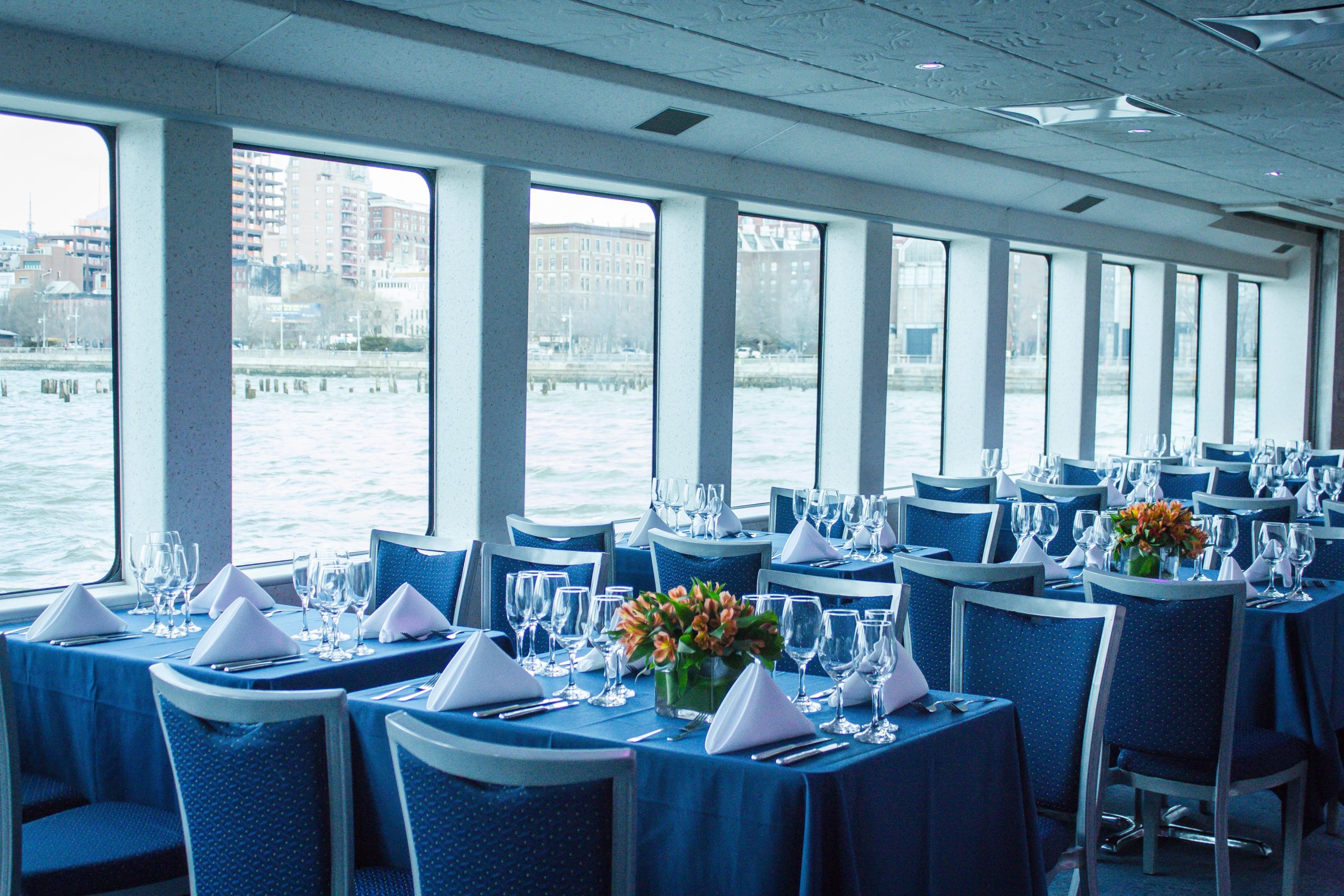

The main deck offers a large salon with the female head aft starboard with male head aft port. A stairway forward of amidships centerline allows access between the main and 01 decks as well as to below deck. Also, a stairway aft that allows access between the main and 01 decks. The 01 deck has an open-air foredeck, enclosed salon and open-air aft deck. The 02 deck provides open air passenger space with a partial canopy and the wheelhouse. An aft stairway allows access between the 01 and 02 decks.

WHEELHOUSE

  • Control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters, high water bilge alarm) with wing stations (port and starboard)
  • Morse clutch and throttle controls
  • Ritchie Magnetic Compass
  • Furuno 1832 Radar
  • ICOM VHF/FM model IC M412 R/T marine radio
  • Jastrum Rudder Angle Indicator
  • Furuno FA-100 AIS
  • Clinometer
  • Kahlenberg Air Horn
  • 14” Searchlight (Carlisle & Finch)
  • Lowell Mixer, (2) QSC CX204V Amplifiers, Surgex Power Supply, Marantz Digital Multiplayer, DBX Zone Processor

GALLEY (BELOW DECK)

  • 40-gallon Bradford White Water Heater
  • Garland Convection Oven
  • (2) Lang Convection Ovens
  • Double Door True Refrigerator
  • Dayton Water Pump with Pressure Tank
  • Flotec Water Pump with Pressure Tank
  • Ecolab Dishwasher/Scullery
  • JBL Subwoofer

ELECTRICAL SYSTEM

  • Two 150 kW RPM single phase Northern Lights generator each powered by a Caterpillar 4-cylinder marine diesel engine with fuel filter, heat exchanger cooled
  • Ship to shore power switch
  • 120 VAC/12 VDC lighting
  • 120 VAC duplex outlets
  • Three LaMarche constavolt units
  • 48-ton Daikin WRV with four 12-ton condensing units with twelve 3-ton air handling units overhead (NEW 2018)
  • One-ton mini split heat pump in the wheelhouse (NEW 2018)
  • Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

HULL, SUPERSTRUCTURE AND DECKS

  • ¼” steel plate hull
  • ¼” steel plate deckhouse
  • Insulated deckhouse
  • Six compartments formed by five transverse bulkheads
  • Boarding gates: two amidships on the main deck

MECHANICAL EQUIPMENT AND ENGINE DETAILS

  • Two 8-cylinder turbo charged 360 HP Caterpillar model 3408 marine diesel engines with fuel filters
  • Engines were overhauled in 2004
  • Twin Disc model MG 514C 3:1 reverse reduction gears

SAFETY EQUIPMENT

  • Personal flotation devices
  • Child size personal flotation devices
  • 0 24” life rings with lines
  • 0 illuminated float light
  • One B-II, five B-II and one C-II fire extinguisher (require inspection)
  • Fixed halon system
  • 0 Pyrotechnic distress signals
  • Four fire stations including: UL approved rubber lined hoses with brass or bronze fittings, brass or bronze nozzles, brass or bronze hose bibs
  • Fire axe
  • 0 First aid kit
  • Five hp Blount Marine windlass with a 250 lb. Danforth style anchor

FINISH

  • Exterior decks: Non-Skid
  • Interior decks:
    • Salon : Non skid
    • Heads : Non Skid
    • Wheelhouse: removed
  • Headliner: removed
  • Interior Bulkheads:
    • Salon: removed
    • Heads: removed

REMARKS

The P/V JOHN JAMES AUDUBON is in the midst of a renovation, with beverage bars and heads removed. Several windows leak, some removed, water intrusion has resulted in metal wastage around the main and 01 decks cabin perimeters. Interior bulkhead panels, insulation, headliner, etc. have been removed. She is offered “as is where is” without a current USCG Certificate of Inspection. The images are not representative of her current state.

EXCLUSIONS

Ecolab equipment is on lease and not part of the offer.

Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
