General Specifications
Insert Official Number 984286 in the Vessel Number box and click “search”
Drawings
| Name | Inspiration Hornblower |
| Style | Yacht |
| Builder | Atlantic Marine |
| Hull | Displacement |
| USCG Certified | Yes |
| USCG Dry Dock | February 28, 2026 |
| Passenger Capacity | 1,200 |
| Gross Tonnage | 1,136 (2,944 ITC) |
| Net Tonnage | 773 (833 ITC) |
| Built | 1992 (converted in 2006) |
| LOA | 222′ |
| LWL | 182.8′ |
| Beam | 66′ (74′) |
| Hull Depth | 11′ |
| Freeboard | 8′ |
| Draft | Water 6’3″ Air Draft: 62′ (56′) |
| Displacement | 1,041.23 long tons |
| U.S.C.G. Official Number | 984286 |
| Route Certification | Lakes, Bays and Sounds |
| Hull Material | Steel |
| Deckhouse Material | Steel |
| Tank Capacities | Fuel: 15,000 gallons-steel Fuel (Aux gen): 60 gallons Lube Oil: 300 gallons Waste Oil: 300 gallons Waste: 14,000 gallons Potable Water: 25,000 gallons |
WHEELHOUSE
- Caterpillar control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
- Twin Disc model EC-200 cutch and throttle controls with starboard wing controls
- Two Carlisle Finch spotlights
- Comm Nav AIS
- Furuno Satellite compass model SC-702
- Horn
- Upholstered helm seat
- Two ICOM model IC-M424G VHF/FM marine radios with antennas
- Furuno model FR-7112 radar with antenna
- Furuno model 1935 radar with antenna
- Furno NavPilot
- Rose Point ECS
- CCTV with two monitors – INOP
- Sony stereo with a CD player
- QSC CX 1202V direct amplifier
- QSC amplifier
- Range digital router
- Sirius XM radio

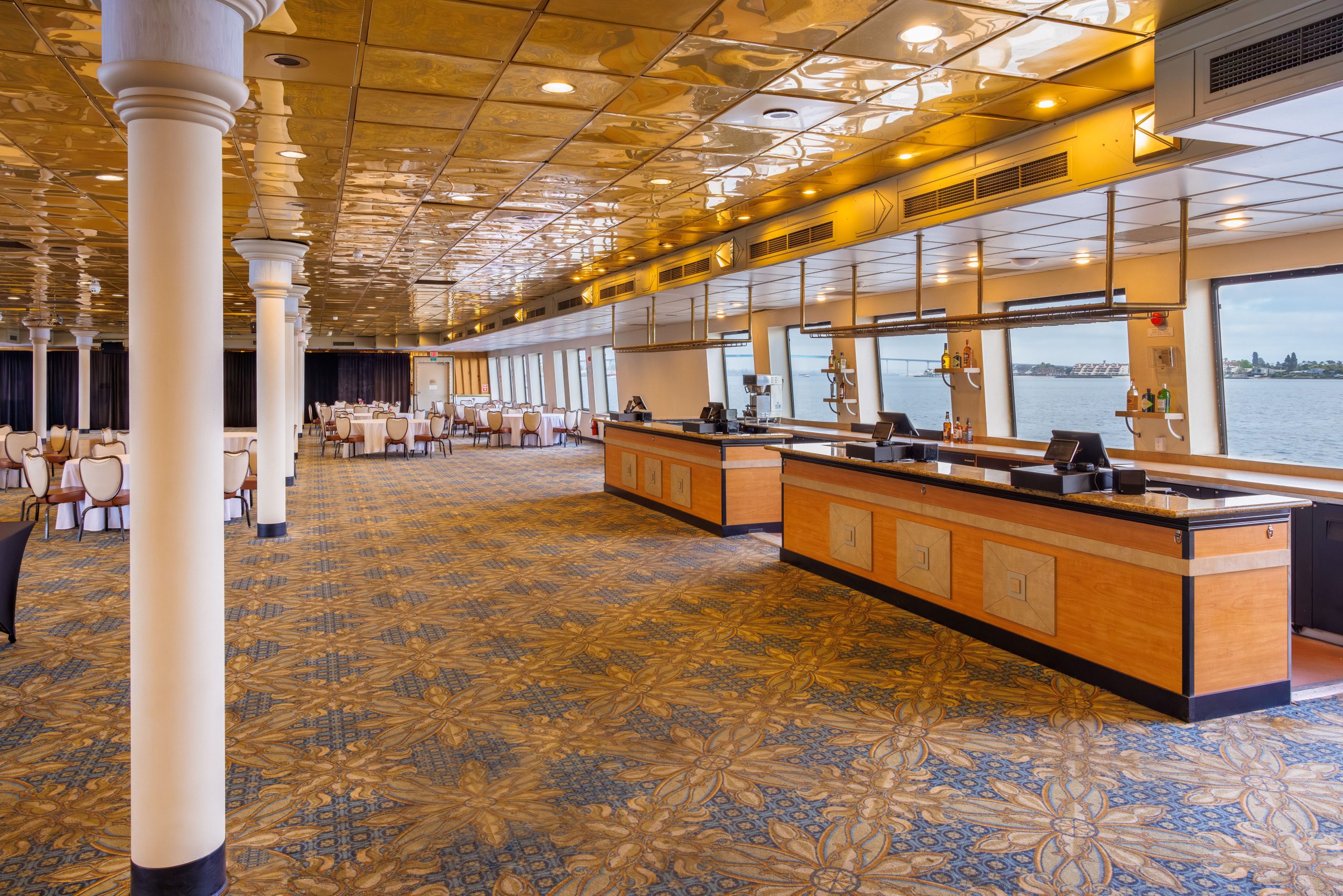

BEVERAGE BAR (MAIN DECK – PORT)
- Two three door True refrigerators
- Two Casio registers
- Four Aloha POS Stations
- Four Auto Beverage dispensers
- Gemini Curtiss coffee machine
- Ecolab dishwasher
BEVERAGE BAR (01 DECK)
- Four Stainless steel sinks
- Two three door true Beverage coolers
- Four Aloha POS stations, three credit card reader
- Four Automatic Beverage dispensers
- Gemini coffee machine
- Two coffee Ambassador warming units
- Ecolab dishwasher
- Two Vita Mix blenders
BEVERAGE BAR (01 DECK – PORT AFT)
- Three stainless steel hand sinks
- Ecolab commercial glass washer
- Three Auto Beverage dispensers
GALLEY (01 DECK – PORT)
- Six Garfield convection ovens
- Four Delafield double convection ovens
- Four Delafield double refrigerators
- Five stainless steel sinks
- Three Carter Hoffman hot boxes
- Cleveland 25-gallon tilt skillet
- Ecolab dishwasher
- Manitowoc ice maker
- Hatco water booster heater
BELOW DECK
- American Panel walk in refrigerator
- Penn walk in refrigerator
- Four offices
- Shop
- Hoshizaki ice machine
ELECTRICAL SYSTEM
- Two 340 kW marine generators powered by two Caterpillar model C-18 SR 4B marine diesel engines, keel cooled – hours: port 8,609, starboard 9,354 – May 2025 – NEW 2011
- Auxiliary 141 kW marine generator powered by a Caterpillar model 3304B marine diesel engine, keel cooled – hours 1,232 May 2025
- 500 KVA transformer
- 125 KVA transformer
- 480 VAC three phase shore outlet
- Newmar 40-amp battery charger
- Newmar 30-amp battery charger
- Two Newmar Phase 25-amp battery chargers
- Two Newmar 2-amp 40-amp battery chargers
- Two Carrier model 30HR100-D600 100-ton chilled water air conditioning units
- Two 25 hp 3” pumps for the chilled water system
- Two 7 hp 3” sewage pumps
- LES Inc. 2,010,000 BTU boiler for heating system – INOP
- 120 VAC lighting
- 120 VAC duplex outlets
- Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light) – 2 sets
HULL, SUPERSTRUCTURE AND DECKS
- Welded steel plate hull
- Six watertight compartments formed by five transverse bulkheads.
- Main Deck – double door entry starboard forward, single door starboard forward
- 01 Deck – double door entry starboard midship
MECHANICAL EQUIPMENT AND ENGINE DETAILS
- Two Caterpillar model C-32 1,300 hp tier II turbo charged marine diesel engines tier II raw water cooled (port 6,080, starboard 6.085 May 2025) – NEW 2011
- ZF model BW 251 reverse reduction gear (4.133:1)
- Keel cooled system
- Two 60” x 44” for blade stainless steel propellers
- Two 5” 8.5-meter stainless steel shafts
- Schottel model STT 170 bow thruster powered by a Caterpillar model 3208T marine diesel engine (hours: 6,748 May 2025) with a Twin Disc model MG509 marine gear
- Beebe Brothers 15-ton maul winch
- Montgomery elevator
- Two Rudd 119 water heaters with Ecolab water softener
- Two 5 hp Champion air compressors with receivers
HEADS
The vessel is equipped with four heads, each containing the following:
- Main Deck
- Three stalls, five urinals and three sinks – Male Head
- Four stalls with three sinks – Female Head
- O1 Deck
- Two stalls, three urinals and three sinks – Male Head
- Three stalls, three sinks – Female Head
SAFETY EQUIPMENT
- 1,292 adult size personal flotation devices
- 120 child size personal flotation devices
- 8 inflatable bouyant apparatus (IBA) – 900 passenger capacity
- 6 30” life rings
- 25 fire extinguishers, 10 lb. dry chemical, 4 15 lb. CO2, 1 5 lb. dry chemical and 1 125 lb. hose reel
- Fixed CO2 system in emergency generator room, thruster room, and engine room
- Ansul fire system in the galley
- Pyrotechnic distress signals
- Four self-contained breathing apparatus (SCBA)
- 1,000 lb. anchor
- 2,000 lb. anchor
- Two 7.5 hp McElroy anchor capstans
- Two 14’ Narwal 6 passenger dinghies each with a 25 hp. Mercury outboard engine
- Two Ned deck davits
- 12 fire stations including: approved rubber lined hoses with brass or bronze fittings, brass or bronze nozzles, brass or bronze hose bibs – powered by two Marlow 50 hp 230 VDC pumps
EXCLUSIONS
- Two Casio registers, eight Aloha POS Stations, four Auto Beverage dispensers, Gemini Curtiss coffee machine, four Ecolab dishwashers, three credit card reader, four Automatic Beverage dispensers, Gemini coffee machine, two coffee Ambassador warming units, two Vita Mix blenders, Ecolab commercial glass washer, three Auto Beverage dispensers, three Carter Hoffman hot boxes, Cleveland 25-gallon tilt skillet, Manitowoc ice maker, Hatco water booster heater, Hoshizaki ice machine are not part of the offering as they are leased.
- Details are deemed reliable but are not guaranteed. Offer subject to change, prior sale, taxes, freight and launch are applicable. Measurements are in United States units.
Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
