General Specifications
Insert Official Number 933099 in the Vessel Number box and click “search”
| Name | II |
| Style | Launch |
| Builder | |
| Hull | Modified Displacement |
| USCG Certified | Expires 2026 |
| USCG Dry Dock | |
| MA Registration Number | 933099 |
| Route Certification | Lakes, Bays and Sounds |
| Passenger Capacity | 40 |
| Gross Tonnage | 14 |
| Net Tonnage | 11 |
| Speed (approx.) | |
| Built | 1988 |
| LOA | |
| LWL | 30.2′ |
| Beam | 15.9′ |
| Hull Depth Depth | 4.4′ |
| Draft | |
| Displacement | |
| Hull Material | FRP |
| Tank Capacities | Fuel |
ACCOMMODATIONS AND LAYOUT

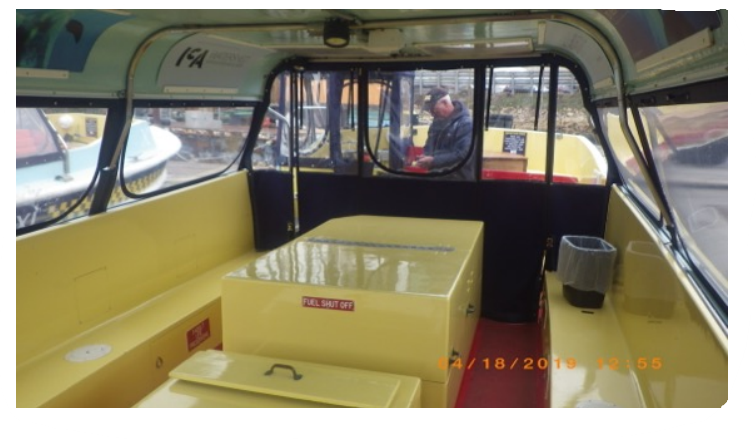

The water taxi style vessel is arranged with the helm station on the port side. Perimeter molded inboard facing bench seating with the engine box centerline forward with a centerline bench facing outboard. Non-slip coating on deck and seating surfaces.
HELM STATION
- Control Station with engine instrumentation
- Standard Horizon GX-2000 VHF Radio
- Kobelt 2046 Series mechanical control head, push/pull cable, single lever throttle/gear control
- Marol H-600 series hydraulic steering
- Horn
- Fog Bell
- Ritchie Compass
ELECTRICAL SYSTEM
- 12vdc system
- 2 AGM 12vdc batteries
- Engine driven alternator
- Switch/Breaker panel at helm station
- Battery isolation switch
- Aqua Signal Series 32 Navigation lights (port, starboard, stern, masthead, anchor)
HULL, SUPERSTRUCTURE AND DECKS
- Molded Fiberglass Reinforced Plastic hull, decks & overhead
- Canopy fastened to gunwales with aluminum stanchions, Eisen glass zippered dropdowns
- Non-slip coating on walkway and seating surfaces
- Boarding gate on port side forward of mid-ship behind helm station
MECHANICAL EQUIPMENT AND ENGINE DETAILS

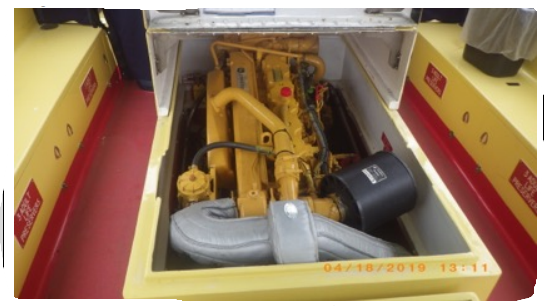

- Single John Deere 6081AFM75, 246HP, freshwater cooled, 12vdc, 9401 hours, Racor primary fuel filter
- Twin Disc reduction gear MG-506, Ratio 1.97:1
- Wet Exhaust through stern
- Approx 1” stainless steel shaft with dripless water lubricated gland
SAFETY EQUIPMENT
- 41 Type I Adult size PFD’s
- 5 Type I Child size PFD’s
- 1 Life ring w/ float light and painter line
- Engine Compartment Fixed Fire Suppression: Fireboy-Xintex Model Halocarbon FM 200
- Fire Extinguishers: 1 of 10-B-C, 2 of 40-B-C
EXCLUSIONS
N/A
Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
