Freedom Elite

General Specifications

Insert Official Number 1088137 in the Vessel Number box and click “search”

NameFreedom Elite
StyleYacht
BuilderSkipperliner
HullDisplacement
USCG CertifiedYes
USCG Dry DockJanuary 2028
Passenger Capacity128
Gross Tonnage76
Net Tonnage51
Built1999
LOA88′
LWL80.8′
Beam20′
Hull Depth6′
Freeboard2.5′
Draft3′ Air Draft 34.7′
Displacement68.37 long tons
U.S.C.G. Official Number1088137
Route CertificationLakes, Bays & Sounds
Hull MaterialSteel
Deckhouse MaterialSteel
Tank CapacitiesFuel: 900 Gallons
Potable Water: 700 Gallons
Waste: 500 Gallons
Lube Oil: N/A

ACCOMODATIONS AND LAYOUT

The main deck is designed as a private dining suite with dining throughout and a galley aft on the starboard with heads located directly abaft the galley. The main deck is arranged with a door to the outside off the starboard bow and port stern. Access between the main and 01 decks is forward on port (interior) and starboard aft (exterior). The 01 deck is designed as a gathering area that includes a full-service beverage bar with space available for high tops and lounge chairs. The main deck bow and 01 aft decks offer open-air seating. The 02 deck is the pilot house which is over top and forward of the bar.

WHEELHOUSE

  • Em-trak Marine Electronics Model A100 AIS
  • FURUNO Model GP-33 GPS
  • FURUNO FR-10 Radar display/ DRS4DNXT Radar (New 2024)
  • Ritchie Navigation Compass
  • ICOM Model IC-M242G VHF radio and antenna
  • STANDARD HORIZON model Matrix GX2000 radio and antenna
  • Three Systems 26” windshield wipers 12vdc
  • Fog bell on aft deck
  • Carlisle and Finch Model C-8160 Series Spotlight 12 inch, 115v
  • Flagship Marine Sentry bilge alarm system
  • Micro Commander throttle/gear controls- Main Engines and Bow Thruster
  • John Deere start/stop and Gauge panel for Generator
  • Caterpillar  start/stop and Gauge panel for Main engines
  • Yanmar  Start/Stop and engine gauge panel for bow thruster
  • Seafire Suppression system controller for bow thruster

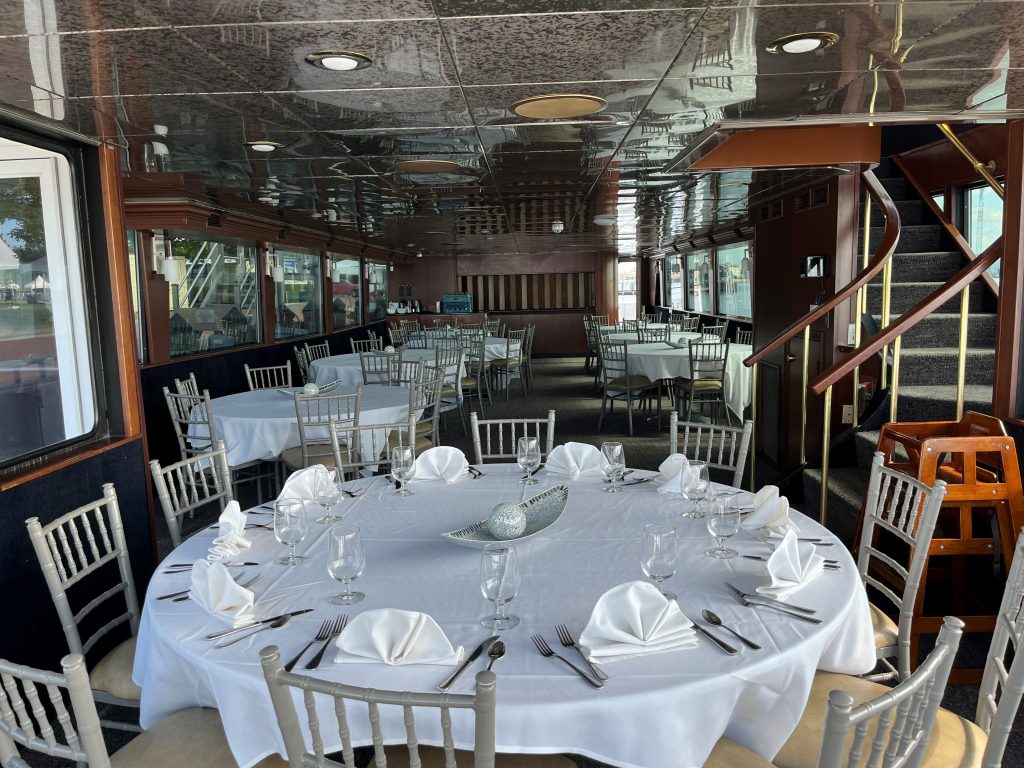

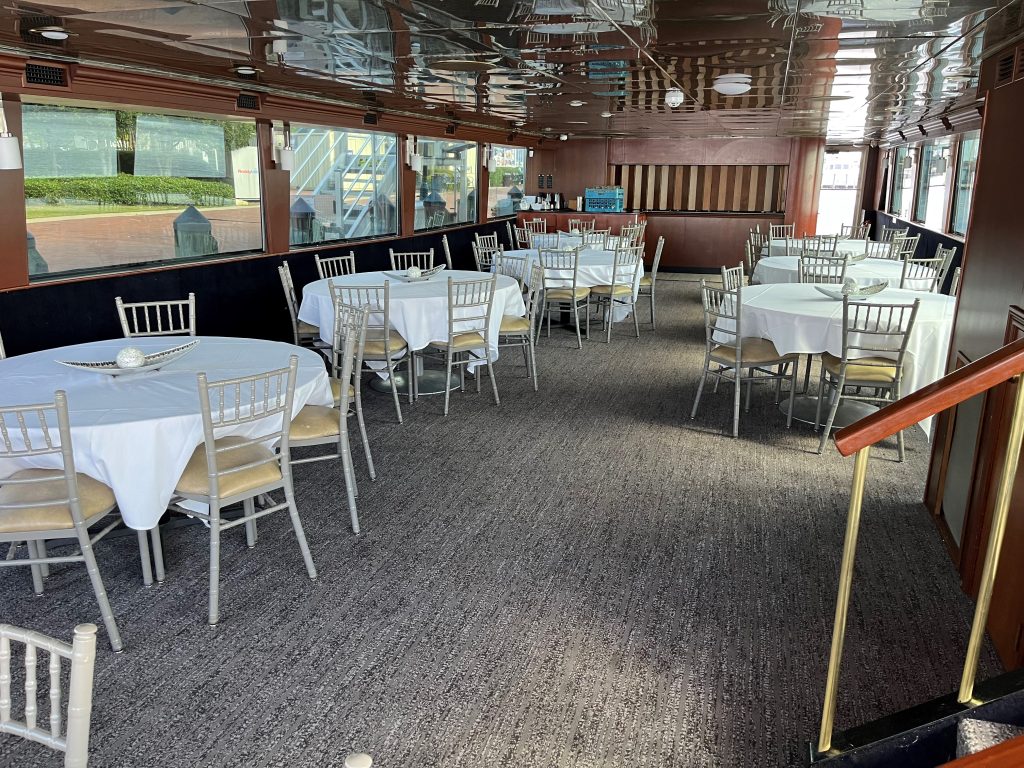

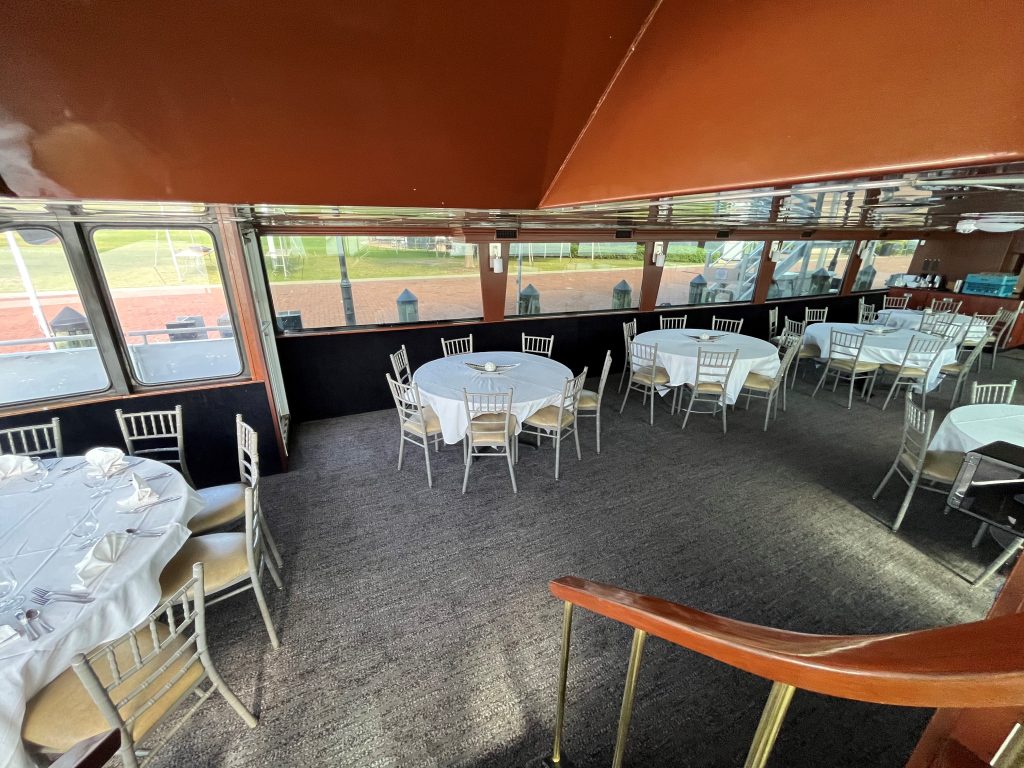

MAIN DECK SALON

  • Open deck
  • Galley located at aft end of salon
  • Ladies and Men’s heads located at stern
  • Forward Port side stairs to access 01 deck salon
  • Starboard forward door to bow exterior seating
  • Port aft door to stern and access stairs to 01 deck

GALLEY (MAIN DECK)

  • Stainless Steel surface counter
  • Stainless steel three partition sink
  • Stainless steel work table
  • Two COMBITHERM model 6.10 ESI ovens
  • One HOSHIZAKI CRMR27 refrigerator
  • One WITTCO cook and had oven
  • One TRUE model TUC-27F-HC freezer
  • One TRUE model T-19 standup refrigerator
  • One electric Wells 2 burner stove top model H706
  • Stainless steel hand stink

01 DECK SALON

  • The beverage bar is located on this deck in the center aft section of the deck
  • Plenty of area for adding high top tables around the bar area and lounge chairs forward of bar area providing  a great view of the waterway

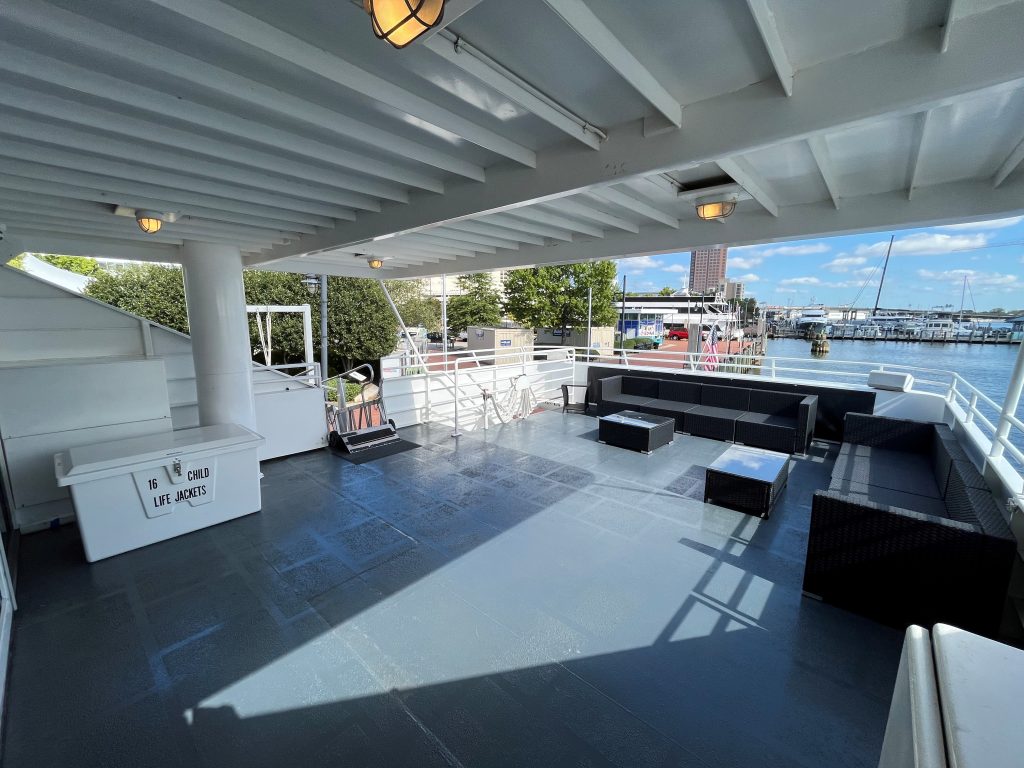

  • Double doors aft open to partially covered open air deck

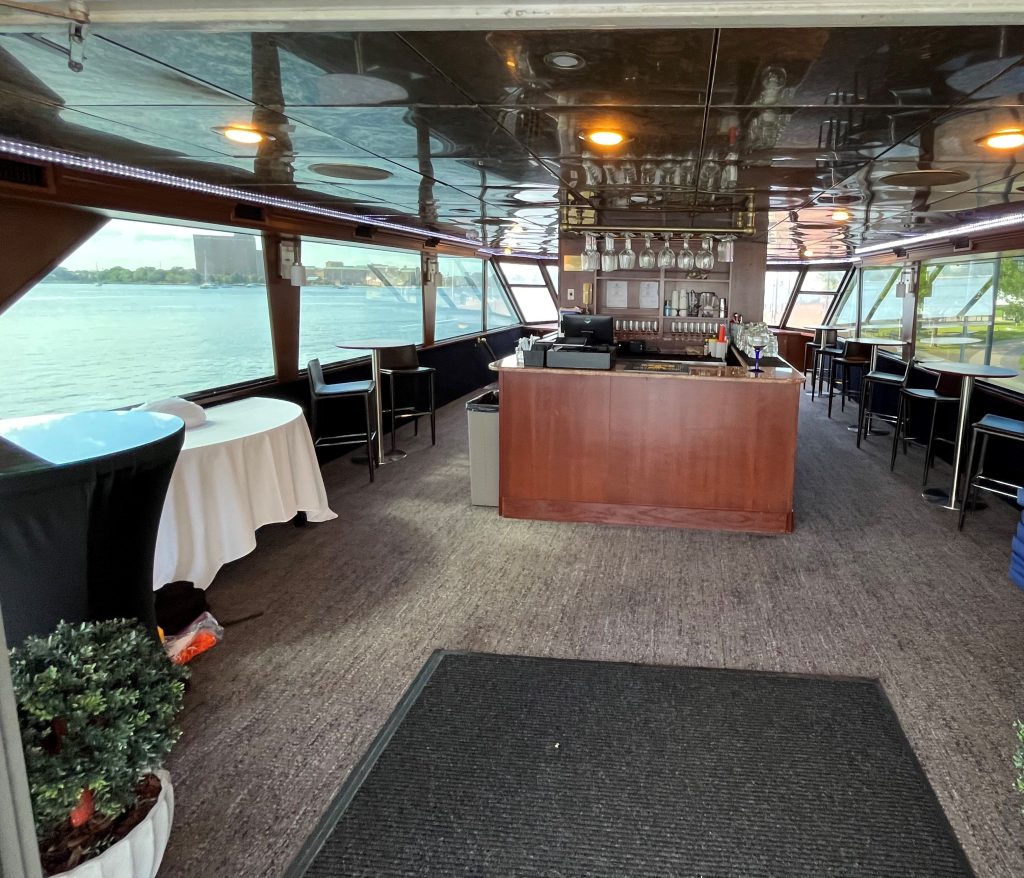

BEVERAGE BAR-3 SIDED (01 DECK)

  • Composite surface top
  • Space for glass washer
  • Stainless steel hand sink
  • Stainless steel sink glass washing sink with ice bin attached
  • Soda gun and associated hoses ran to closet net to bar
  • “True” 2 door reach in Beverage refrigerator
  • Wall mounted liquor display shelves

ELECTRICAL SYSTEM

  • One John Deere 4045AFM85E,G, 121 KW, 98KW Constant speed only, 120/240vac, 12vdc, Generator, gauges, fuel, oil and racor filters.  Hours: 532 as of April 2026
  • Ship to shore power switch
  • Main Engines and Generator Battery Charger ProNautic 24-20 Power factor corrected & Global AC input
  • Battery isolation switch
  • Shorepower connection 100 amp
  • 12vdc emergency lighting
  • Perko navigation lights, port running light, starboard running light, masthead light, stern light, anchor light. 12vdc

HULL, SUPERSTRUCTURE AND DECKS

  • 3/16″ steel plate hull
  • Ten-gauge steel plate deckhouse
  • Insulated deckhouses
  • Five watertight compartments formed by four transverse bulkheads
  • Boarding gates: two forward and two aft port & starboard sides
  • Stair treads
  • Stainless steel thresholds
  • Deck fittings:
    • Electrical: port/star
    • Waste: port/star
    • Water: port/star
    • Fuel: port/star

    MECHANICAL EQUIPMENT AND ENGINE DETAILS

    • Two Caterpillar model 3208 main engines 330hp at 2300 RPM’s, 12vdc
    • Hours Port: 12064 Starboard: 12051
    • Two ZF ARCO Marine Model: IRM 220A-1marine gears, 2.454:1 ratio
    • 2 stainless steel shafts
    • (1) 48-gallon water heater
    • (2)  19-gallon water heater
    • Yanmar 3JH2-TCE diesel bow thruster- 3523hrs as of April 2026
    • Reverso 24 VDC oil drain system
    • Water system with (2) Wellxtrol 150 psi accumulator tanks, two A/C water pumps and an inline filtration system with a small emergency12v back up water pump
    • Craftsman single cylinder/oil free 5.5hp 30 gal air compressor

    HEADS

    • Heads located on main deck aft behind galley
    • Female- 2 Toilets, 2 sinks- large mirror over sink, toilet and paper towel dispensers
    • Male- 1 Toilet, 1 sinks – full length mirror,  toilet and paper towel dispensers

    SAFETY EQUIPMENT

    • 134 type I adult size personal flotation devices
    • 16 type I child size personal flotation devices
    • Three 26” life rings two with painter lines, one with float light
    •  Five 4A 80-B:C fire extinguishers
    •  One 10A 60-B:C fire extinguishers
    •  One 20A 120-B:C
    •  Pyrotechnic distress signals
    • Engine room Fixed Fire Suppression 150lb CO2
    • Bow Thruster space Automatic Sea-Fire FM-200 (600 cubic ft)
    • Two fire stations 1.5” diameter hose, 50’ in length
    • Fire axe
    • Danforth anchor
    • Man overboard recovery ladder

    FINISH

    • Exterior coating: Epoxy Coating
    • Exterior decks: Epoxy paint with non-skid
    • Interior decks:
      • Salon: Carpeting
      • Heads: LVP
      • Galley: Altro
      • Galley: FRP Panel
      • Bar: Altro
      • Wheelhouse: Carpeting
    • Headliner: 2’x2’ drop in metal panels
    • Interior Bulkheads:
      • Salon: Wood panel (cherry)
    • Heads: Coated

    REMARKS

    The P/V Freedom Elite is in good condition.

    EXCLUSIONS

    N/A

    Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
