Freedom

General Specifications

Insert Official Number 928582 in the Vessel Number box and click “search”

NameFREEDOM
StyleYacht
BuilderSkipperliner Industries, Inc.
ArchitectTimothy Graul Marine Design
HullDisplacement
USCG CertifiedYES
USCG Dry Dock30 April 2027
Passenger Capacity131
Gross Tonnage64
Net Tonnage43
Speed (approx.)Cruising: 7 knots 1,600 RPM
Maximum:11 knots 2,100 RPM
Built1988
LOA88′
LWL73.5′
Beam21′
Hull Depth6′ Freeboard 4′
DraftWater 6′ Air Draft:
Displacement53.28 Long Tons
U.S.C.G. Official Number928582
Route CertificationLakes, Bays & Sounds plus limited Coastwise
Hull MaterialSteel
Deckhouse MaterialSteel
Tank CapacitiesFuel: 1,200 gallons
Waste: 800 gallons
Water: 400 gallons

ACCOMODATIONS AND LAYOUT

The vessel is arranged with a gate off the starboard and port bows and amidships port. The main deck is laid out with the beverage bar forward, then open dining, the female head is aft of amidships starboard, the male head across to port, the galley is baft of the male head. A second private dining salon is fully aft. The 01 deck allows for the pilot house forward, beverage bar abaft of the wheelhouse and open-air deck passenger space. There are stairways port and starboard aft of amidships servicing the main and 01 decks.

WHEELHOUSE (01 DECK)

  • Control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
  • Bilge alarm system
  • Hynautic hydraulic steering system
  • Hynautic 30 Degree rudder angle indicator
  • Morse clutch and throttle controls
  • Fog bell
  • Air horn
  • ACR remote controlled searchlight
  • High water bilge alarm
  • Furuno model FCV-667 digital depth sounder
  • ICOM model IC-M55 VHF/FM marine radio with antenna
  • ICOM model IC-M402 VHF/FM marine radio with antenna
  • Raymarine Pathfinder radar system
  • Garmin model GPSmap 182 C global positioning system (GPS)
  • Standard Horizon model CP190i chartplotter
  • Garmin model MAP 180 global positioning system (GPS)
  • Ritchie electronic compass
  • McMurdo Smartfind M5 AIS Class A
  • Intercom system
  • Crown Audio model 1160MA professional power amplifier, Harbinger mixer
  • Helm stool
  • Firstrend wireless security system with a Dell monitor

SALON (MAIN)

  • Seven dining tables (48” diameter)
  • Ten dining tables (4’ x 2’)
  • Two tables (3’ x 6’)
  • 74 chairs
  • Four Christopher Knight five-piece sectional lounge chair with four coffee tables

GALLEY (MAIN DECK)

  • Plumbed for a for a sink
  • Frigidaire refrigerator/freezer

BEVERAGE BAR (MAIN DECK)

  • Two Euphomy refrigerator
  • One RCA refrigerator/freezer

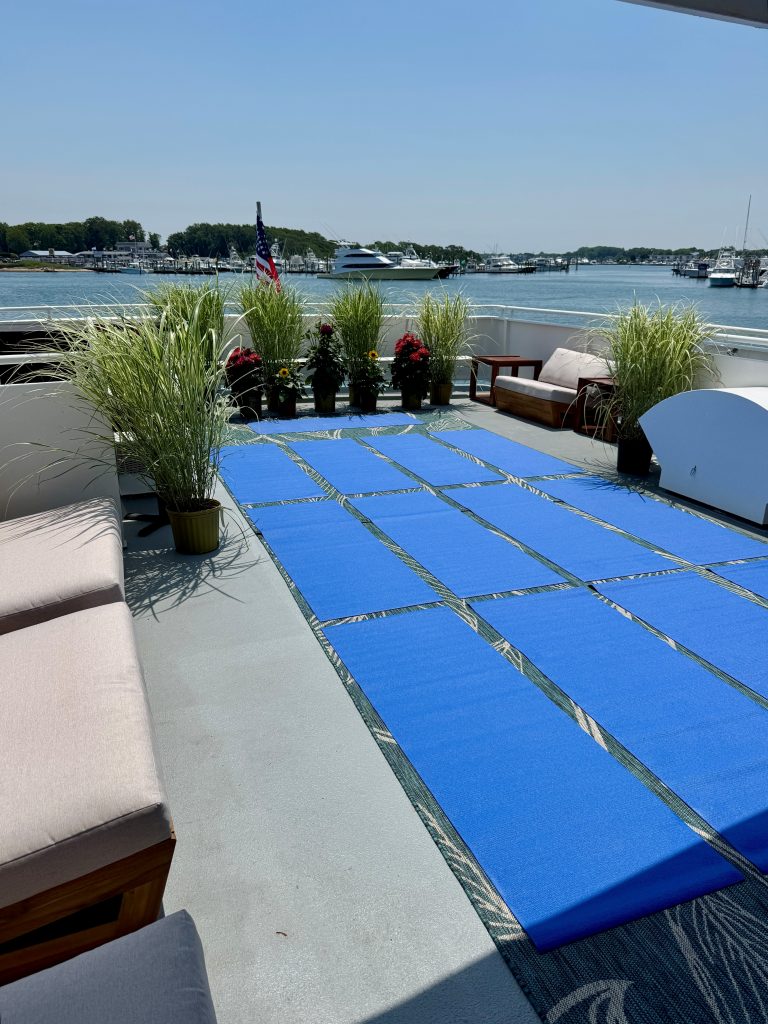

SUN DECK (01 DECK)

  • Six Ebern Designs love seats
  • Four Arhaus end tables

BEVERAGE BAR (01 DECK)

  • Peligro refrigerator
  • One Newair refrigerator
  • One SPT refrigerator/freezer

ELECTRICAL SYSTEM

  • One ship service 75 kW Onan model 70MCGDA-2075 generator powered by a Cummins marine diesel with fuel filter, seawater strainer and seacock
  • Hours: 3,296 January 2026
  • Ship to shore power switch
  • 50 AMP 120/ 240 VAC shore power service
  • 50 AMP/ 240 VAC power cord
  • 120 VAC/12 VDC lighting
  • 120 VAC duplex outlets
  • Two D-8 12 volt enclosed heavy duty batteries
  • Two Type 31 batteries
  • Perko battery isolation switch
  • StatPower Tru Charge multistage battery charger
  • Dometic Emerald split three zone 120,000 BTU water cooled reverse cycle heat pump system (NEW 2018)
  • Dometic roof air conditioning unit (wheelhouse)
  • 230 VAC manifold bilge system
  • Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

HULL, SUPERSTRUCTURE AND DECKS

  • Seven-gauge steel plate hull
  • Ten-gauge steel plate deckhouse
  • Insulated deckhouses
  • Six watertight compartments formed by five transverse bulkheads
  • 6” split pipe rub rail
  • Boarding gates: two forward
  • Eight 15” steel kevels
  • Deck fittings:
    • Electrical: Star
    • Waste: Star
    • Water: Star
    • Fuel: Star

MECHANICAL EQUIPMENT AND ENGINE DETAILS

  • Two 8 cylinder 290 HP @ 2,800 RPM Caterpillar 3208 marine diesel engines, fuel filters, seawater strainers with seacocks
  • Hours: 14,447 port, 19,246 starboard January 2026
  • Twin Disc model MG 507 2.54:1 marine gears
  • Two 30” x 24 pitch three blade propellers
  • 3” stainless steel shafts
  • 25” bow thruster powered by a power take off – port engine
  • NAIAD roll control system – INOP

HEADS

The vessel is equipped with two heads.  The heads each contain:

  • One toilet
  • One sink and faucet
  • Electric hand dryer

SAFETY EQUIPMENT

  • 134 type I adult size personal flotation devices
  • 16 type I child size personal flotation devices
  • Three 30” life rings one with line
  • One self-actuated rescue light
  • Pyrotechnic distress signals
  • Two fire stations including: two 1 1/2” UL approved rubber lined hoses with brass or bronze fittings, two brass or bronze nozzles, two brass or bronze hose bibs.  The bilge pump system operates the fire system also
  • Fire axe
  • 90 lb. Danforth style anchor with 600’ 5/8” nylon line

FINISH

  • Exterior coating: Coating
  • Exterior decks: Non-skid
  • Interior decks:
    • Salon: Carpeting
    • Heads: Non-Skid
    • Galley: Non-Skid
    • Bar: Non-Skid
    • Wheelhouse: Carpeting
  • Headliner: Metal
  • Interior Bulkheads:
    • Salon: Wood panel
    • Heads: Coated
    • Galley: Panel

REMARKS

The FREEDOM is in very good condition.

EXCLUSIONS

N/A

Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
