Escape

General Specifications

Insert Official Number 1093282 in the Vessel Number box and click “search”

Name	ESCAPE
Style	Yacht
Builder	Nichols Brothers Boat Builders
Architect	Guido Perla & Associates
Hull	Displacement
USCG Certified	DUE/Expired
USCG Dry Dock	DUE/Expired
Passenger Capacity	752
Dining Cap	350-550
Gross Tonnage	91 (1357 ITC)
Net Tonnage	62 (452 ITC)
Speed (approx.)	Cruising: 10 kts @ 1400 RPM Maximum:12 kts @ 1800 RPM
Built	2000
LOA	180′
LWL	172.5′
Beam	42′
Hull Depth	12.1′
Draft	Water 8’6″Air Draft: 46′
Displacement	582 Long Tons
U.S.C.G. Official Number	1093282
Route Certification	Lakes, Bays & Sounds
Hull Material	Steel
Deckhouse Material	Steel
Tank Capacities	Fuel: 9,500 gallons Waste: 10,000 gallons Potable Water: 17,500 gallons Grey Water: 5,000 gallons Lube Oil 110 gallons

ACCOMODATIONS AND LAYOUT

The vessel is arranged with passenger boarding off the forward main deck port and starboard. Companionways between the main and 01 decks are found exterior off the foredeck and forward of amidships interior. Aft of the forward entry is located a dance floor along the centerline. There are tables and chairs along starboard and port (rectangular) & tables (round) and chairs interior. A beverage bar is located aft of the dining area abaft of such is the galley and stairway allowing access between the main and below decks. The 01 Deck offers dining seating forward of the interior stair tower. Aft of the stair tower is a dance floor along the centerline with open dining seating consisting of rectangular tables, round tables. The beverage bar is aft of the dining seating. Exterior open space on the 01 deck is forward and aft on the fantail. The 02 deck provides open dining seating using rectangular type tables and a beverage bar in the port aft corner. The remainder of the deck offers exterior space for passengers.

WHEELHOUSE

• Control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters, high water bilge alarm)
• Two Kobelt electronic clutch and throttle controls
• Jastram hydraulic steering system with wing controls
• Single trumpet horn
• Fog bell
• Two 12” Carlisle & Finch remote controlled searchlight
• Three Jastram rudder angle indicators
• Three Slinger windshield wipers
• Two SEA model SEA-156 VHF/FM marine radios with antennas
• SEA loud hailer
• Dirirgo 6 1/@’ compass
• Furuno model FCV-582-L video sounder
• Two Furuno model 1832 radar systems
• Furuno model GPS Navigator Global Positioning System (GPS)
• Roberston model AP 45 autopilot
• Dirigio compass with lighted binnacle
• Panasonic model Hybrid 15 station intercom system
• Borksonic 13” monitor with 10 remote controlled camera system
• Wise offshore helm seat
• Cape Codder brass clock, Cape Codder bass barometer, Cape Codder brass anemometer
• Alan Heath mix Wizard, White distribution amplifier, three OSC distribution amplifiers, Panasonic five-disc DVD/CD players, Makie model 400CM-250 amplifier with wireless microphone.

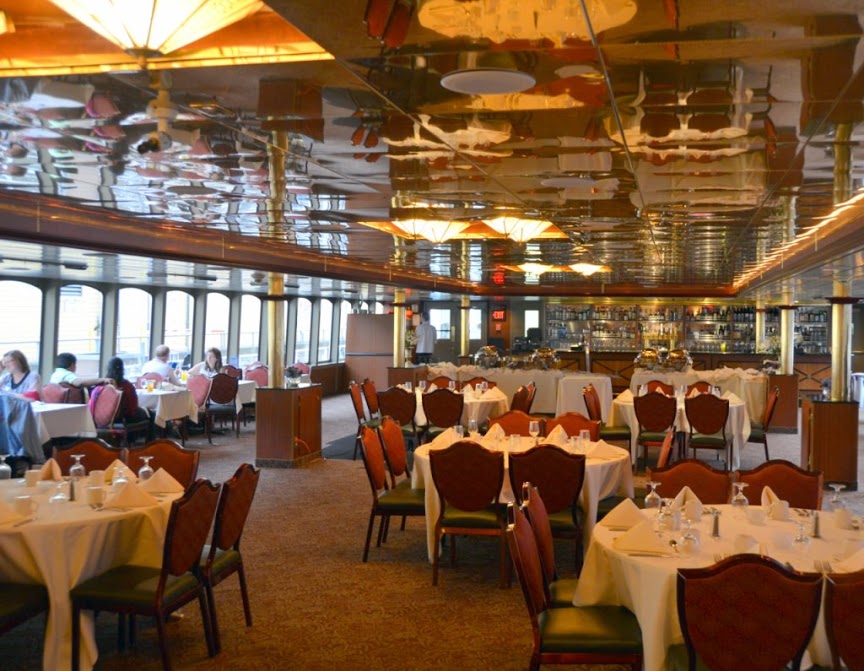

SALON (MAIN DECK)

• Open Floor Plan
• Recessed lighting
• Dance floor

SALON (01 DECK)

• Open floor plan
• Recessed lighting
• Dance floor

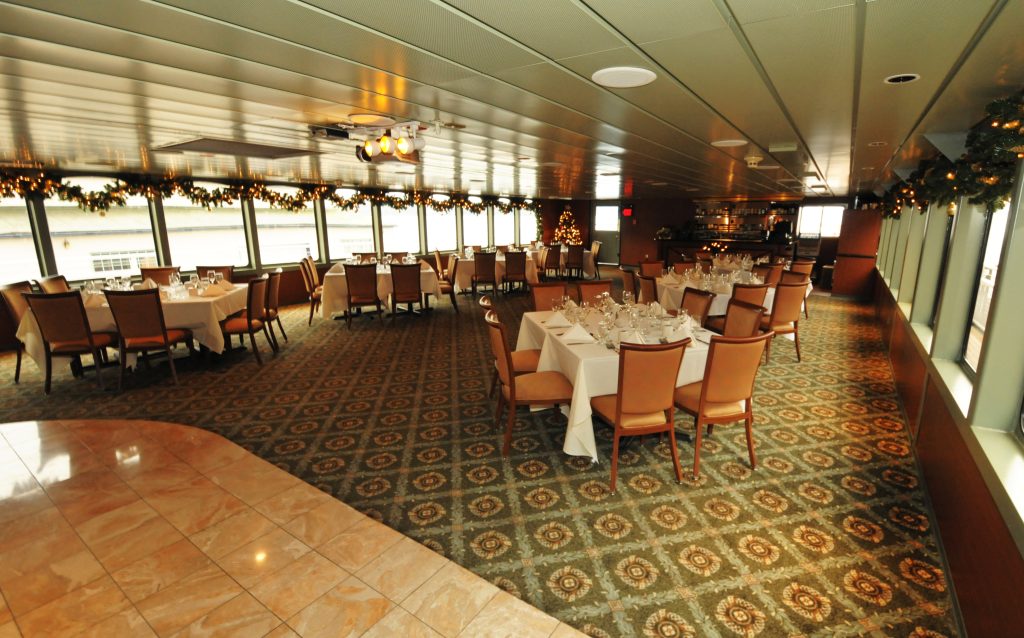

SALON (02 DECK)

• Open floor plan
• Recessed lighting
• Dance floor

GALLEY (MAIN DECK)

• Three door Trawlson refrigerator
• Two Blodgett convection ovens
• Three Magic King PLG cook tops
• One Magic King four burner cook top
• Traulson grill
• Magic King griddle
• Two Alto Sham cook & hold ovens
• One Wells hot food serving table
• One Manitowoc ice machine
• Two Wells bread warmers
• Three Hatco dual heat lamps
• Crescor hot food holder
• One stainless steel hand washing sink
• One stainless steel prep table
• One stainless steel prep sink
• 2 6 lb. range hood protection systems

GALLEY (01 DECK)

• Three door Traulson Refrigerator
• Two Blodgett convection ovens
• Three Magic King PLG cook tops
• One Magic King four burner cook top
• Two Alto Sham cook & hold ovens
• One Wells hot food serving table
• One Manitowoc ice machine
• Two Wells bread warmers
• Three Hatco dual heat lamps
• Crescor hot food holder
• One stainless steel hand washing sink
• One stainless steel prep table
• One stainless steel prep sink
• 2 6 lb. range hood protection systems

SCULLERY (02 DECK)

• One Imperial 2,000 lb. capacity elevator with access to all decks
• Four stainless steel tray washing tables
• One Hobart dishwasher
• Two Stainless steel sinks
• One stainless steel three partition sink
• Copeland walk in freezer
• Copeland walk-in cooler
• Walk in keg cooler
• Goen 40-quart tilting kettle and stand
• Goen 40-gallon kettle
• Hobart 60-quart mixer
• Blodgett Convection oven
• Perlick remote beer delivery system

WAITER’S PANTRIES – TWO (MAIN DECK)

• Stainless steel ice bin
• Water tap
• Stainless steel sink
• Beverage Aire under counter refrigerator
• Stainless steel glass & work cabinets
• Stainless steel holding rack
• Two Bunn coffee machines

WAITER’S PANTRIES – TWO (01 DECK)

• Stainless steel ice bin
• Water tap
• Stainless steel sink
• Beverage Aire under counter refrigerator
• Stainless steel glass & work cabinets
• Stainless steel holding rack
• Two Bunn coffee machines

BEVERAGE BAR (MAIN DECK)

• Granite top
• Three Glasstender under counter coolers
• Two stainless steel ice bins
• Eight beer tap lines
• Three Glasstender single partition stainless steel sinks
• Stainless steel single partition sink

BEVERAGE BAR (01 DECK AFT)

• Granite top
• Two Glasstender under counter coolers
• One Stainless steel ice bin
• Eight beer tap lines
• Two single partition stainless steel sinks
• Glasstender single partition stainless steel sink

BEVERAGE BAR (02 DECK)

• Granite top
• Three door Glasstender under counter cooler
• One OBD  under counter cooler
• One Stainless steel ice bin
• Six beer tap lines
• Two single partition stainless steel sinks
• JVC model XVN350 CD player, JVC model Pro Cision
• QSC model CX3020 amplifier, Fetco

ELECTRICAL SYSTEM

• Two ship service 330.0 kW, three phase generators, each powered by a Lugger Northern Lights model M6140Al marine diesel engine with fuel filter
• Auxiliary 65 kW Magna Plus generator powered by a John Deere mode 4045D marine diesel engine cooled by a heater exchanger
• Hours: 1490 – February 2026
• Ship to shore power switch
• 200 AMP/480 VAC shore power service
• 115 VAC exterior and interior perimeter lighting
• 120 VAC/12 VDC lighting
• 120 VAC duplex outlets
• 9 12 VDC 4D enclosed heavy duty batteries
• 1 12 VDC 8-D battery
• 2 12 VDC 4-D marine batteries
• Two battery isolation switch
• One McCarron 24 VDC inverter charger
• Trace 12 VDC inverter charger
• York 61.5-ton water cooled reverse cycle heat pump system (not all is operational)
• Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

HULL, SUPERSTRUCTURE AND DECKS

• 3/8” steel plate hull
• 3/164 “steel plate deckhouse
• Insulated deckhouse
• 8 compartments formed by 7 transverse bulkheads
• 6” UHMW rub rail
• Boarding gates: two amidships on the main deck
• 48” T bitt on bow centerline
• Two 24” X 4” mooring kevels port and starboard on raised foredeck
• 24” in X 4” mooring cleat located centerline aft on mid deck
• Eight 24” x 4” mooring kevels raging four on each side of main deck
• Wooster treads on all exterior stairs
• Deck fittings:
• Electrical: Amidships port Waste: Amidships port Water: Amidships port/star Fuel: Amidships port/star

MECHANICAL EQUIPMENT AND ENGINE DETAILS

• Two 6 cylinder 700 HP @ 1800 RPM Lugger model 6170A turbo charged, electric starting marine diesel engines, fuel filters
• Starboard engine needs overhaul
• Twin Disc model MG-502 DC 4.0:1 marine gears
• Two 5 ½” stainless steel propeller shafts with dripless seals
• Nichols blister type keel cooling system
• Engine room insulation
• Two 59” x 47” four blade bronze propellers
• American Bow Thruster model TAC 28 28” 200 hp electric motor powered dual for blade type dual 20” propellers – powered by the port or starboard generator engine – rebuilt 2013
• Two Bradford White 80-gallon water heaters
• Two Ingersoll Ran model 30-T 3 hp electric motor driven air compressors

HEADS

The vessel is equipped with 16 public heads

• Headhunter marine toilets
• Female head – main deck – contains eight partitioned toilets, five sinks
•  Male head – main deck – contains four partitioned toilets, eight urinals, four sinks
• Two heads – 01 deck
• Two heads – 02 deck
• ADA Accessible heads Main & 01

SAFETY EQUIPMENT

• 840 type I adult size personal flotation devices
• 84 type I child size personal flotation devices
• 4 Jim Buoy 30” life ring with line
• 15 type A-II fire extinguishers
• 8 type B-II fire extinguishers
• 6) 100 lb. CO2 cylinders engine room
• 1) 100 lb. CO2 cylinder – generator room
• Pyrotechnic distress signals
• 11 fire stations including: UL approved rubber lined hoses with brass or bronze fittings, brass or bronze nozzles.
• Fire axe
• 175 lb. Danforth style anchor with rode
• Ideal Capstan

FINISH

• Exterior coating: High Gloss
• Exterior decks: Carpet
• Interior decks:
  • Salon: Carpet
  • Heads: Altro
  • Galley: Altro
  • Bar: Altro
  • Wheelhouse: Carpet
• Headliner: MSC metal tiles
• Interior Bulkheads:
  • Salon: Vinyl
  • Heads: Ceramic
  • Galley: Epoxy

STORAGE HOLD

This hold is accessed via scissor lift and is accessed from the center of the main deck. It is utilized as storage for tables, chairs, glassware, buffet supplies, band equipment, & miscellaneous maintenance supplies.

CREW QUARTERS (BELOW DECK)

• Two heads
• Brides room (7 ½’ x 11’)
• Two crew changing lockers (8’ x 14’)
• Liquor locker (8’ x 14”)
• Linen storage locker (8’ x 14’)

REMARKS

She was designed and built to accept a 50’ insert to increase LOA. The images are not reminiscent of her current contion.This world class yacht offers a sleek style and wonderful viewing for passengers.

EXCLUSIONS

• N/A

Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
