General Specifications
Insert Official Number 1281755 in the Vessel Number box and click “search”
| Name | EDGAR’S MUSE |
| Style | Water Taxi |
| Builder | Maritime Applied Physics Corp. (MAPC) |
| Architect | MAPC |
| Hull | Hull |
| USCG Certified | DUE |
| USCG Dry Dock | DUE |
| USCG Official Number | 1281755 |
| Route Certification | Rivers |
| Passenger Capacity | 49 |
| Gross Tonnage | 17 |
| Net Tonnage | 14 |
| Speed (approx.) | 8 knots |
| Built | 2018 |
| LWL | 55′ |
| Beam | 13.8′ |
| Hull Depth Depth | 3.5′ |
| Draft | Water 3.5’ Air Draft: 12’ |
| Displacement | 27,520 lbs |
| Hull Material | Aluminum |
| Deckhouse Material | Aluminum |
| Tank Capacities | Fuel: 240 gallons |

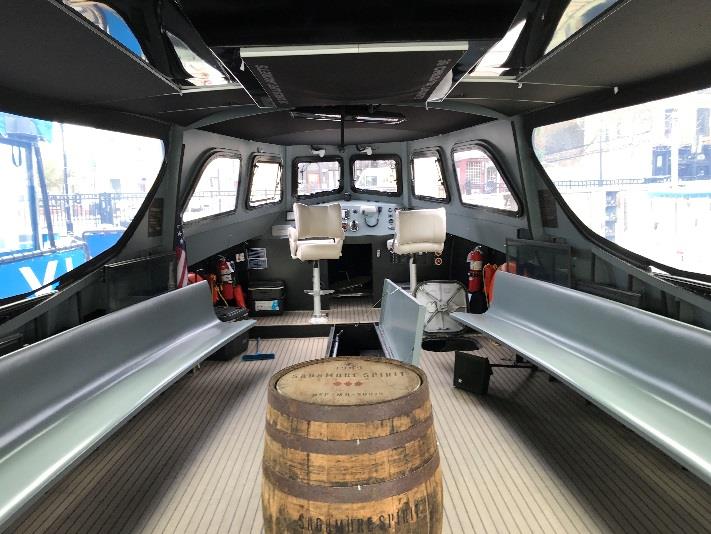

WHEELHOUSE
- Glendenning Amart Actuator IV dual action mechanical electronic control system
- SeaStar Optimus electronic power steering
- Fog bell
- Electric horn
- Garmin model VHF210AIS VHF/FM marine radio with antenna
- Garmin model GPSmap 741 GPS/chartplotter
- Ritchie compass
- Wet Sounds model WS420SQ four band marine equalizer with microphone
- JL Audio model M400/4 4 channel 75-watt marine amplifier
- Jensen 24” 12 VDC television monitor

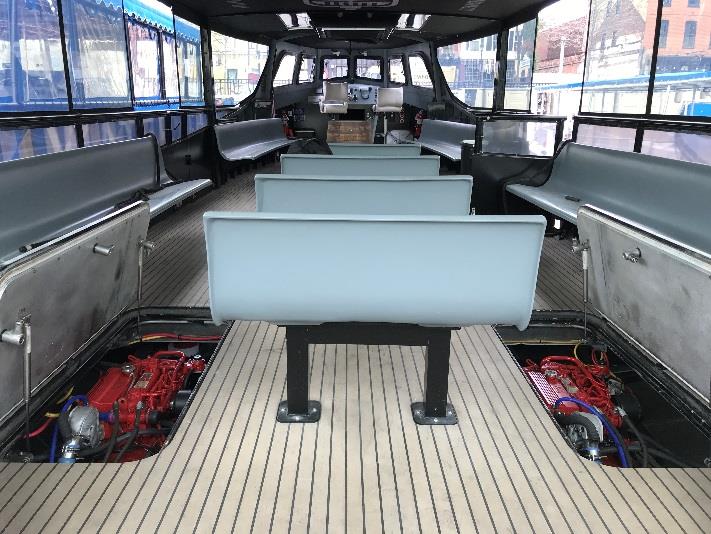

CABIN
- Perimeter inboard facing benches
- Four forward facing benches along the centerline
- Forward facing bench along the fantail
ELECTRICAL SYSTEM
- Victron Energy model Orion 24/12 70 24 VDC to 12 VDC converters
- 24 VDC lighting
- Eight enclosed heavy-duty batteries
- Xantrex LinkLITE battery monitor system
- Battery isolation switch
- Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)
HULL, SUPERSTRUCTURE AND DECKS
- 1/4” bottom and side aluminum plate hulls
- Four watertight compartments
- Duramax rub rail – missing lower inserts on port and starboard
- Canopy with isinglass drop down curtains (some sections missing)
- Headliner needs repair
- Some pitting around deck drain flaps
MECHANICAL EQUIPMENT AND ENGINE DETAILS
- Two 4-cylinder 38 HP @ 3,800 Beta Marine model B38 marine diesel engines, fuel filters, seawater strainers, heat exchanger with seacocks. Tier III
- ZF model ZF25A 2.7:1 marine gears
- Two 18” x 12 pitch four blade bronze propellers
- Vetus model EC 5, 7/2, 4/39-03 7” thruster
- Maradyne Stoker heating system
- Two Xtreme heaters (engine space) 115 VAC
SAFETY EQUIPMENT
- 51 type I adult size personal flotation devices
- 36 type I child size personal flotation devices
- Two life rings one with line
- FireBoy model MA20700227 clean agent 700 lb. halocarbon fixed extinguishing system
- One 10-B:C, one 2-A and one 40 B:C fire extinguishers
- fire extinguishers
- Pyrotechnic distress signals
- Fortress model FX-37 anchor
FINISH
- Exterior coating: Coating
- Exterior decks: Non-Skid
- Interior decks: NautikFlor
Accommodations & Layout
The vessel is arranged with passenger boarding amidships port and starboard. The pilot station is forward with perimeter bench seating and five center forward facing benches. A forward-facing bench on the fantail.
Remarks
There is substantial work to be performed to regain the USCG COI such as but not limited to repower, welding and electrical.
Exclusions
N/A
