California Spirit

General Specifications

Insert Official Number 933871 in the Vessel Number box and click “search”

NameCALIFORNIA SPIRIT
StyleYacht
BuilderWestport
HullDisplacement
USCG CertifiedYes
USCG Dry DockAugust 2027
Passenger Capacity122 (limited coastwise/133 LBS)
Gross Tonnage84
Net Tonnage57
Speed (approx.)Cruising: 9 knots @ 1,400 RPM
Maximum: 12 knots @ 2,200 RPM
Built1988
LOA100′
LWL90’
Beam25.7’
Hull Depth4.9’
Freeboard3.1’
DraftWater 4’3” Air Draft: 30’0”
Displacement68long tons
U.S.C.G. Official Number933871
Route CertificationLakes, Bays and Sounds plus Limited Coastwise
Hull MaterialFRP
Deckhouse MaterialFRP
Tank CapacitiesFuel: 1,500 gallons
Waste: 600
Potable Water: 600 gallons

WHEELHOUSE

  • Control station with VDO engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters) with wings port and starboard
  • Bilge alarm system
  • Wagner jog steering system
  • MMC clutch and throttle controls.
  • Bilge alarms
  • Fog bell
  • Dual trumpet horn
  • VDO rudder indicator
  • Emtrak A100 AID
  • Two Simrad model OP40 Touchscreen multi-function displays
  • Garmin model 3210 GPS Map
  • Simrad model RS35 VHF/FM marine radio with hailer
  • Raytheon intercom system
  • Depth sounder integrated into Simrad
  • Ritchie Powerdamp compass
  • Helm seat

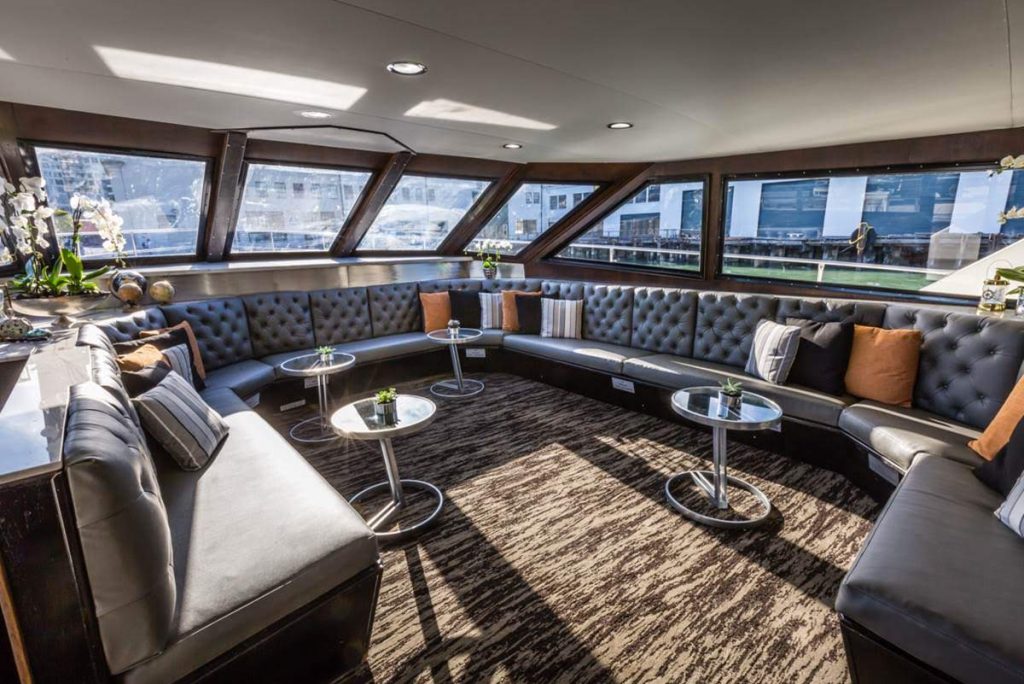

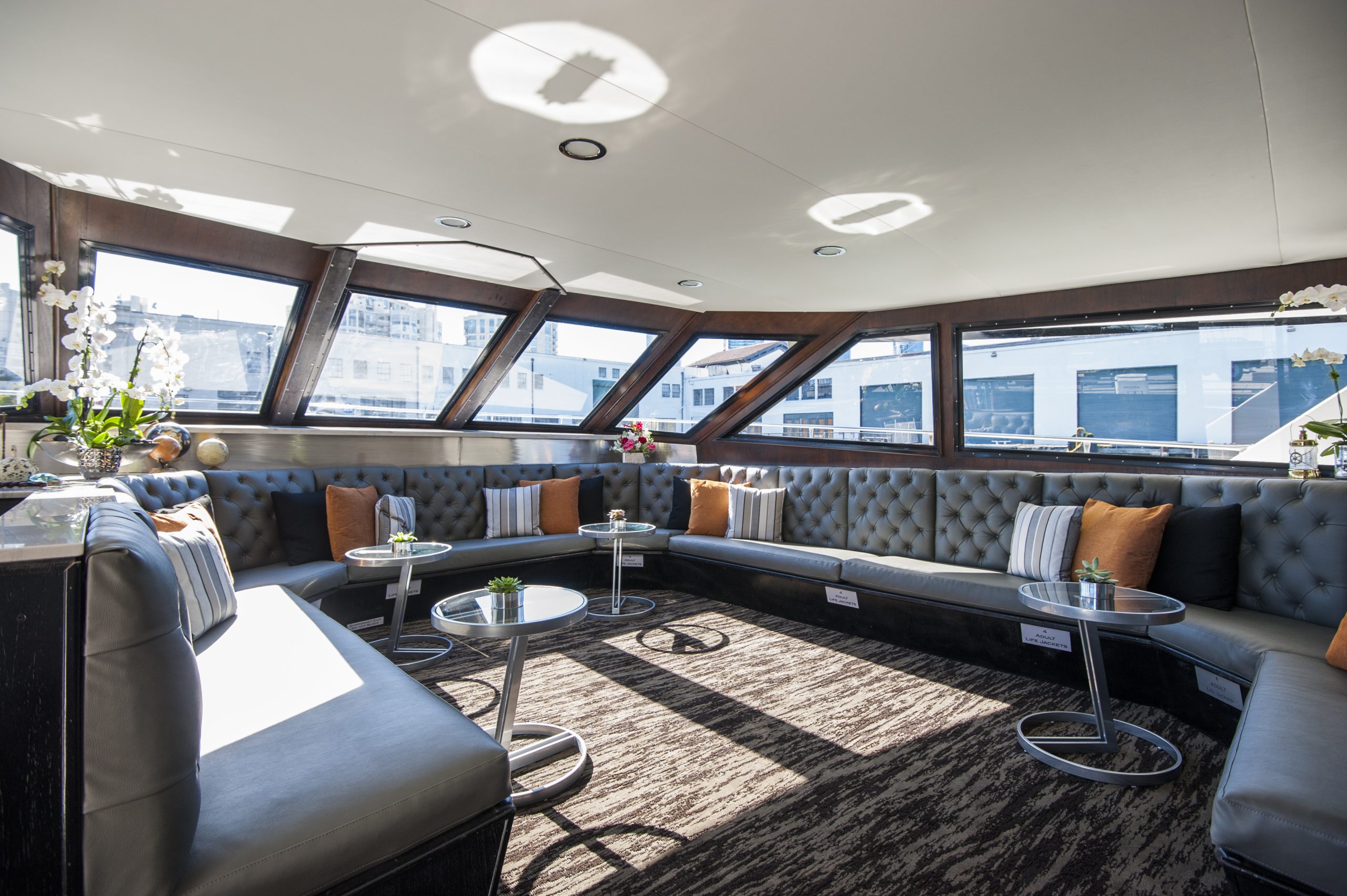

PASSENGER LOUNGE (MAIN DECK)

  • Built in banquette port and starboard
  • 4 low tables (20”)
  • 1 table stainless steel high (23.5”)

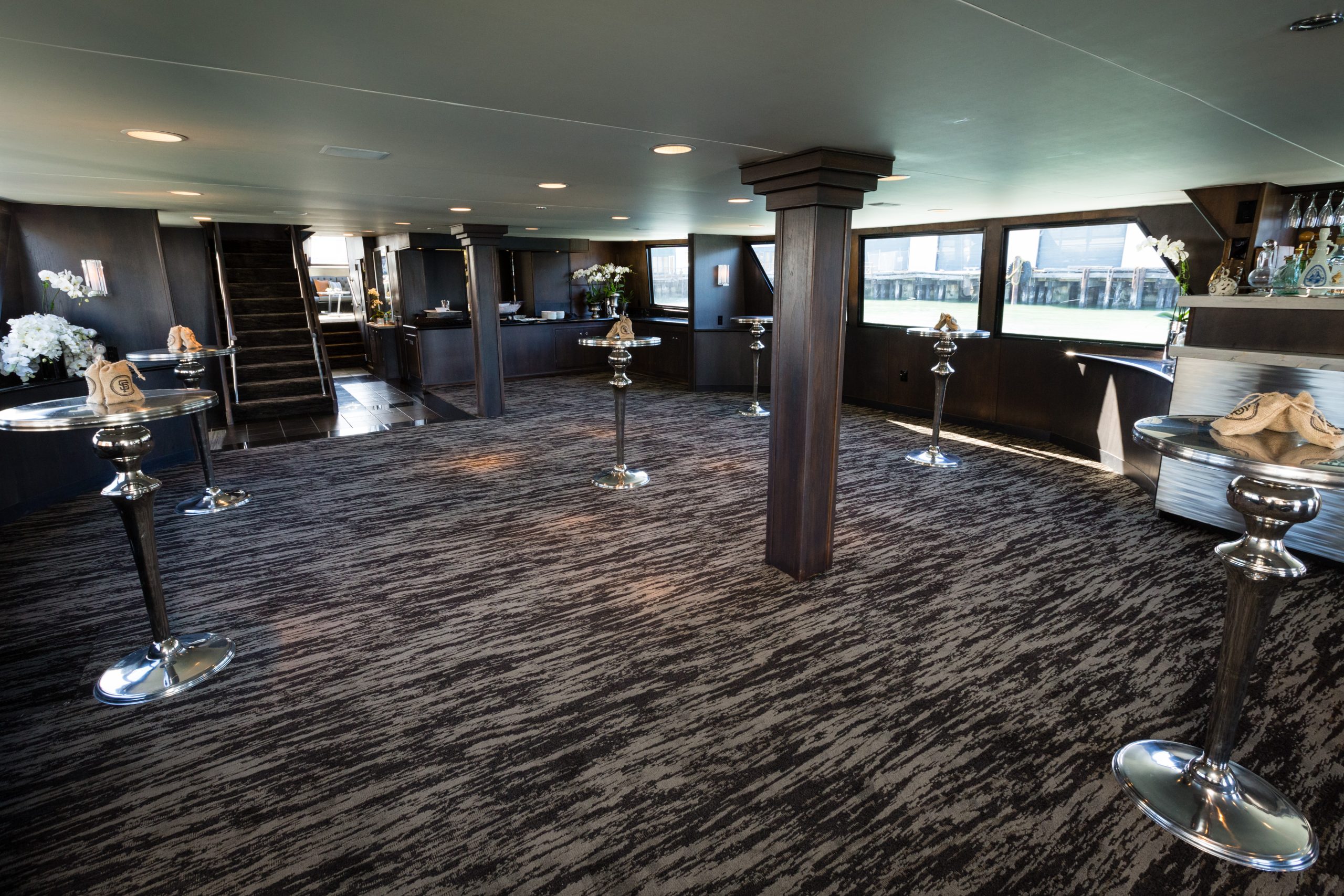

SALON (MAIN)

  • 8 tables (47” radius)
  • 76 chairs
  • 3 stainless steel tables high (23.5” radius)

BEVERAGE BAR (MAIN DECK)

  • White macuabas stone top
  • Four stainless steel sinks
  • Stainless steel ice bin

AFT DECK (MAIN DECK)

  • 2 Janus et Cie tables
  • 6 chairs

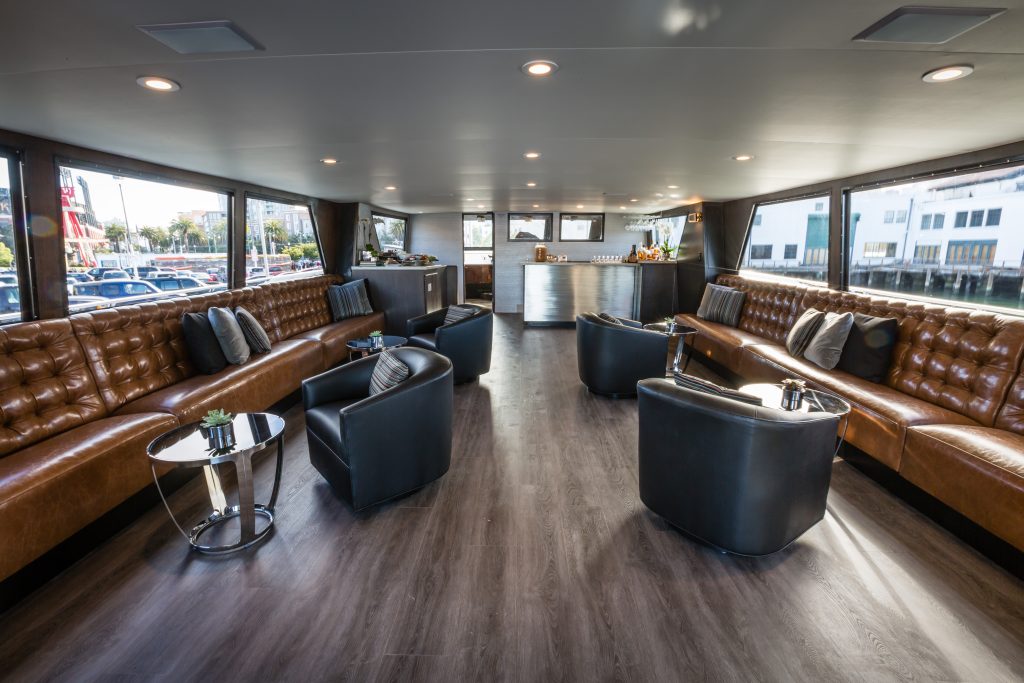

SALON (01 DECK)

  • 6 tables low (21.75” diameter)
  • 1 table high (23.5” diameter)

BEVERAGE BAR (01 DECK)

  • White macaubus stone top
  • Stainless steel sink
  • Stainless steel ice bin

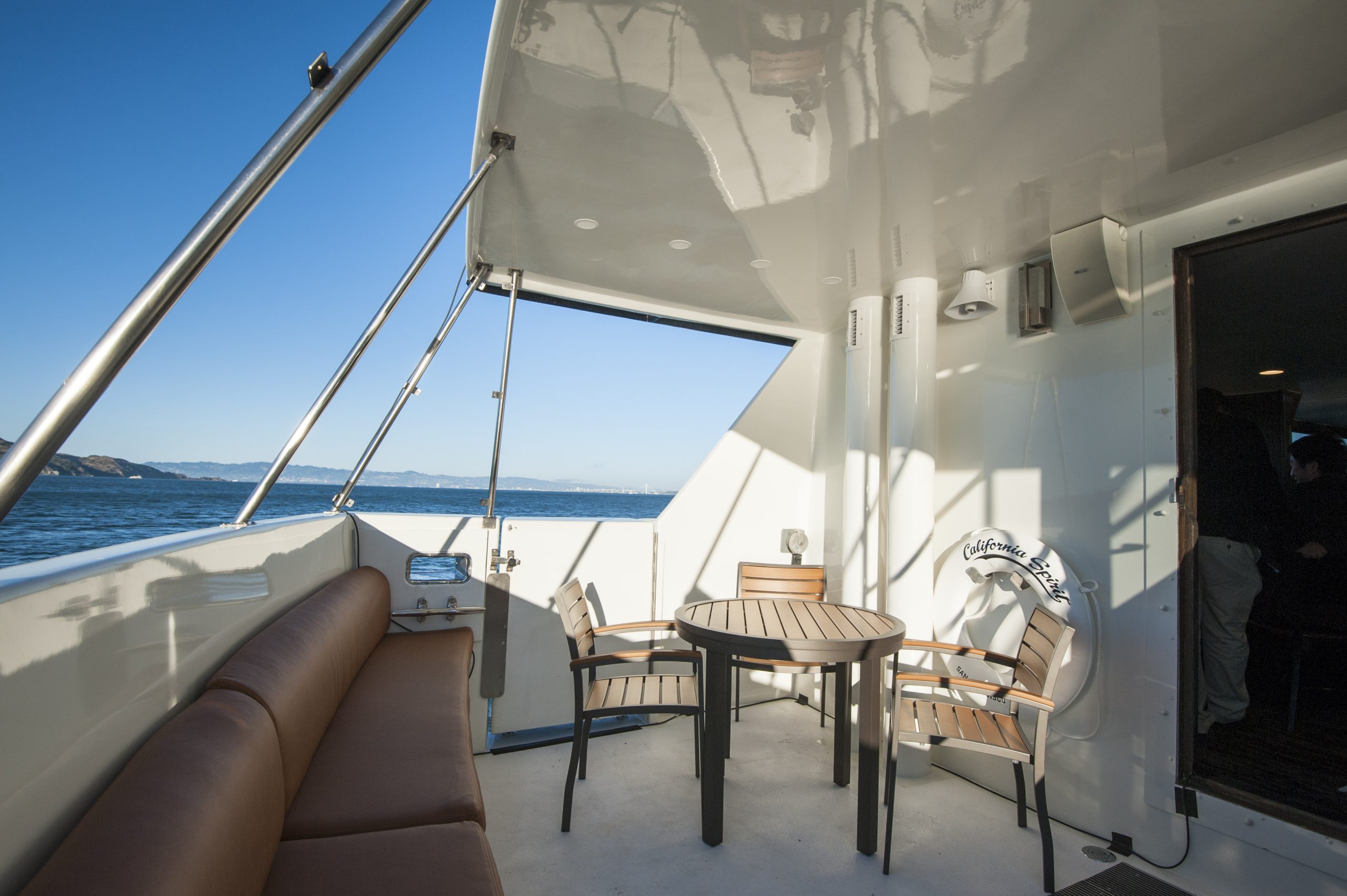

AFT DECK (01 DECK)

  • 2 Janus et Cie tables
  • 10 chairs

GALLERY (MAIN DECK)

  • Delfield stainless steel refrigerator with freezer
  • Lang oven with griddle top
  • Lang convection six burner stove top
  • Hobart dishwasher
  • Two partition stainless steel sink with scullery and prep counter
  • Forced air ventilation/grill hood.
  • Halon model 1301 automatic extinguishing system

PANTRY/LAUNDRY (BELOW DECK)

  • Delfield stainless steel refrigerator
  • True Freeze refrigerator
  • Ice-O-Matic icemaker.
  • Maytag washer and dryer
  • Stainless steel sink

ELECTRICAL SYSTEM

  • Two 55 kW Newage generators powered by an Isuzu model DA120 marine diesel with fuel filter, seawater strainer and seacock.
  • Hours: Port 6,924, starboard 7,000 July 2024
  • Ship to shore power switch.
  • 100 AMP 125/ 250 VAC shore power service
  • 115 VAC exterior and interior perimeter lighting
  • 120 VAC/12 VDC lighting
  • 120 VAC duplex outlets
  • Eight 12 VDC 8D enclosed heavy-duty batteries – engine room.
  • Two 12 VDC 8D enclosed heavy-duty batteries – wheelhouse.
  • Cole Hersee battery isolation switch
  • Mastercraft 24 VDC and 12 VDC automatic battery chargers
  • DriAir dehumidifier
  • Three Samsung monitors (42” 40” and 36”)
  • Two microphones
  • TFT monitor
  • Satellite Dish TV system
  • Yamaha model EMX 80S audio mixer amplifier
  • Pyle model DRA-35A receiver
  • Panasonic model DMP-BD55 Blu Ray player
  • Onkyo model DX-C390 6 disc player
  • Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

HULL, SUPERSTRUCTURE AND DECKS

  • 1.393” FRP hull
  • 1.329” FRP deckhouse
  • Insulated deckhouses
  • Six watertight compartments formed by five transverse bulkheads.
  • Boarding gates: one forward and two aft
  • Eight 15” stainless steel kevels
  • Deck fittings:
    • Electrical: port/star
    • Waste: port/star
    • Water: port/star
    • Fuel: port/star

MECHANICAL EQUIPMENT AND ENGINE DETAILS

  • Two 6-cylinder 450 HP @ 2100 RPM Cummins model NT 855-M marine diesel engines, fuel filters, seawater strainers with seacocks
  • Hours: 3,309 port, 3,348 starboard July 2024
  • Twin Disc model MG-514C 3.0:1 marine gear.
  • Engine room insulation
  • Two 40”x 32” pitch 4 blade propellers
  • 3” stainless steel Aquamet shafts
  • Two 40-gallon GE water heaters
  • 16” Vickers model 2520 hydraulic bow thruster powered by a 40 hp hydraulic motor.
  • Water system with accumulator tank
  • Craftsman 125 PSI air compressor (backup)

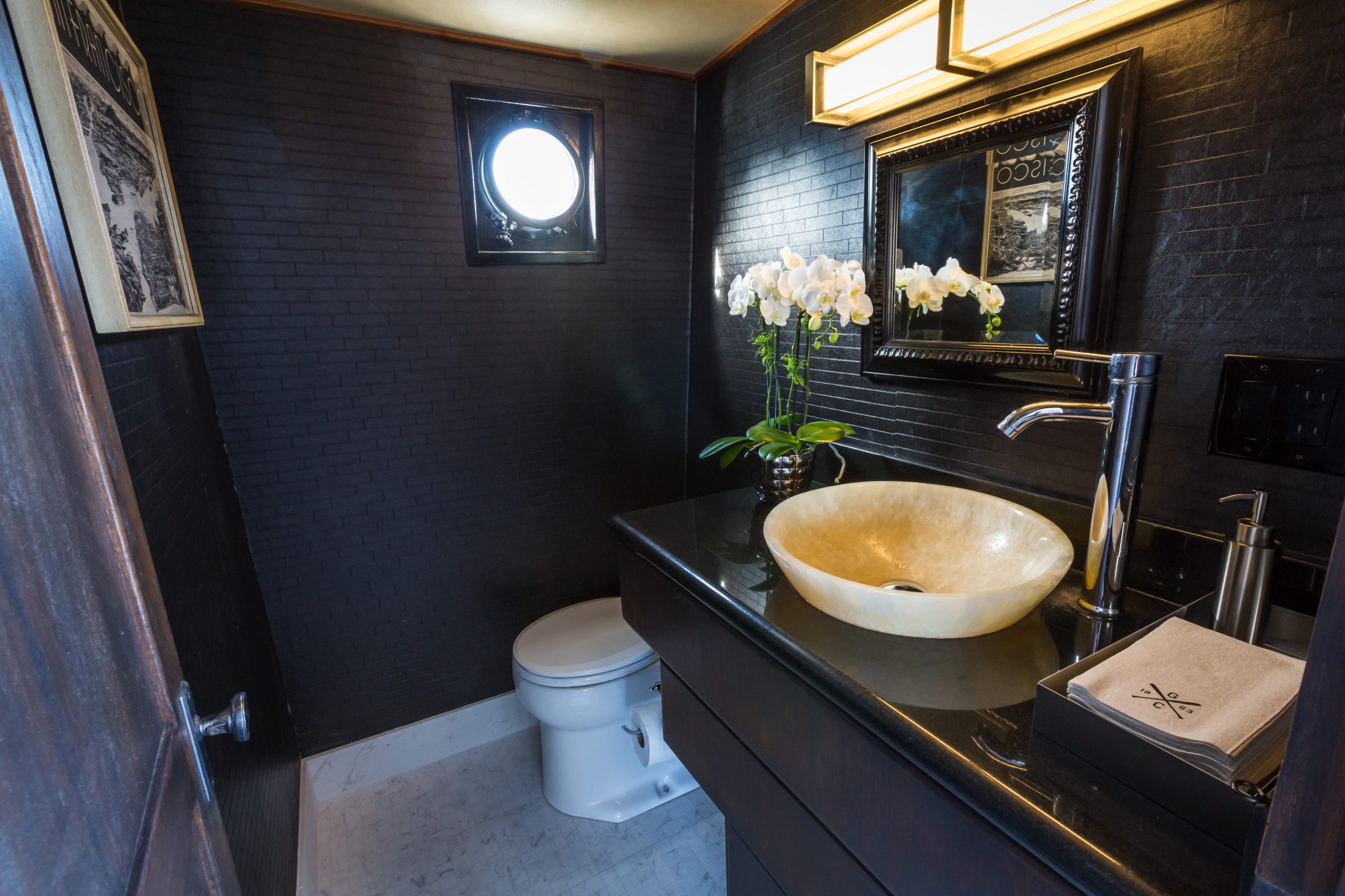

HEADS

The vessel is equipped with four public heads each contains:

  • Vacuum flush pneumatic toilets (2 – female)
  •  One sink and faucet
  • Toilet paper dispenser

SUITE (BELOW DECK STARBOARD)

  • Berth
  • Head
  • Two sinks
  • Two showers

STATEROOM (BELOW DECK FORWARD)

  • Two bunks
  • Locker

SAFETY EQUIPMENT

  • 141 adult size personal flotation devices (stowed in deck boxes)
  • 15 child size personal flotation devices
  • Two Zodiac 30 passenger inflatable buoyant apparatus (IBA)
  • Five 13 passenger life floats
  • Three 30” life rings one with line and light
  • SCR model 406 EPIRB
  • One 10-B:C, four 2-A and one 40-B:C fire extinguishers
  • Pyrotechnic distress signals
  • Two fire stations including: two 1 1/2” UL approved rubber lined hoses with brass or bronze fittings, two brass or bronze nozzles, two brass or bronze hose bibs.  The bilge pump system operates the fire system also
  • Fire axe.
  • Danforth style 150 lb. anchor
  • Washington Hydraulic Drum windlass

FINISH

  • Exterior coating: Coating
  • Exterior decks: Nonskid
  • Interior decks:
    •  Salon: Carpeting
    •  Heads: Tile
    •  Galley: Tile
    •  Bar: Tile
    •  Wheelhouse: Carpet
  • Headliner: Leatherette
  • Interior Bulkheads:
    • Salon: Teak
    • Heads: Covering
    • Galley: Wood

Accommodations & Layout

The vessel is arranged with an open-air fore and aft deck. There is a passenger lounge forward, galley is to starboard with heads to port, salon with beverage bar starboard aft. A stair off the main aft deck provides access between the main and 01 decks. The pilothouse is forward on the 01 deck with salon and beverage bar and heads port and starboard. The aft deck is open air. Below deck is an ensuite stateroom starboard forward, stateroom with two berths forward, laundry room with pantry and refrigerator.

Remarks

The CALIFORNIA SPIRIT is in good condition.  The yacht offers a sleek style and wonderful viewing for passengers.

Exclusions

N/A

Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
