General Specifications
Insert Official Number 1210057 in the Vessel Number box and click “search”
| Name | Bay Rocket |
| Style | Performance |
| Builder | PYank Marine, Inc. |
| Hull | Semi-Planning |
| USCG Certified | Yes |
| USCG Dry Dock | February 28, 2026 |
| Passenger Capacity | 102 |
| Gross Tonnage | 54 |
| Net Tonnage | 43 |
| Speed (approx.) | Maximum: 34 knots@2100 |
| Built | 2008 |
| LOA | 70′ |
| LWL | 65′ |
| Beam | 20′ |
| Hull Depth | 6.3′ |
| Draft | Water 3′ Air 16.8′ |
| Displacement | 29 tons |
| U.S.C.G. Official Number | 1210057 |
| Route Certification | Lakes, Bays and Sounds plus Limited Coastwise |
| Hull Material | Aluminum |
| Tank Capacities | Fuel: 1,000 gallons-alum |
HELM STATION
- Control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
- Glendinning steering/throttle/jet control, upgraded joy stick for docking (NEW 2024)
- Glendinning steering, throttle, jet indicator
- Fog bell
- Dual trumpet horn
- Helm seat and observer seat
- Two ICOM model HM-195B VHF/FM marine radio with antenna
- Ritchie compass
- Furuno GPS and Radar combo
- AIS
- Five Pyle Marine model PLMRA420 1,000 amplifiers
- Engine Room Fire Damper pulls (2)
- CO2 ER Fire Suppression Pull
ELECTRICAL SYSTEM
- 30 AMP/ 125 VAC shore outlet
- Perko battery isolation switch
- Charles Industries automatic battery charger with DC meter
- 12 VDC bilge blowers
- Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)
- (30) 6” round speakers
- (2) 10” round speakers
HULL, SUPERSTRUCTURE AND DECKS
- Marine grade aluminum hull
- Five watertight compartments formed by four transverse bulkheads.
- Boarding gates: Starboard side midship
- 8 stainless steel kevels/ 2 Aluminum kevels
- Non-skid exterior decks
MECHANICAL EQUIPMENT AND ENGINE DETAILS
- Two 16 cylinder 1,400 hp MTU model 16V2000 marine diesel engines, fuel filters, seawater strainers with seacocks (service up to date)
- Hours: Port: 9,559, Starboard: 9,588 – December 2024
- Two Marine Jet Power Ultra jet drives (REBUILT 2024)
SAFETY EQUIPMENT
- 105 type II adult size personal flotation devices
- 24 type II child size personal flotation devices
- One Jim Buoy 30” life rings, lines and light
- Kidde fixed fire suppression in engine compartment
- One A-II fire extinguisher.
- One type B-1 fire extinguisher.
- One type B-II fire extinguisher.
- One fire station including: one 1.5” Fire hose with brass nozzle
- One anchor with line
FINISH
- Exterior coating: coating International Paint
- Exterior decks: non-skid
ACCOMMODATIONS AND LAYOUT

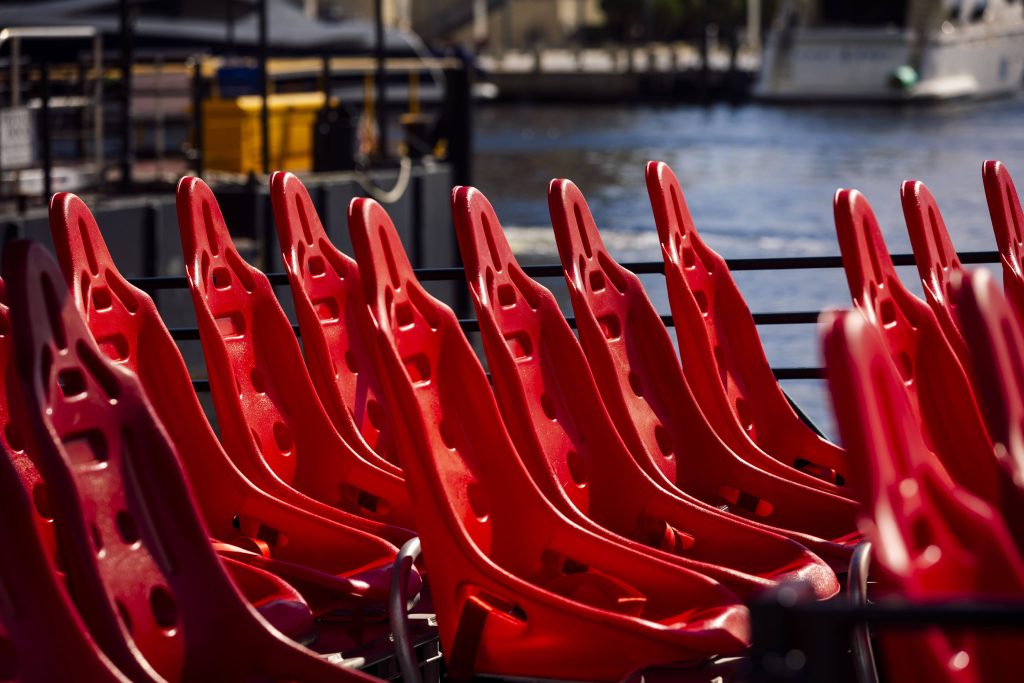

The vessel is arranged with a center raised pod helm station. Individual race car passenger seating with seat belts mounted on spring isolators (NEW 2022), for 102 forward facing passengers. The helm station is on the 01 deck.
Remarks
The vessel is in very good condition. She offers passengers an exhilarating time on the water.
Exclusions
N/A
Pinnacle Marine Corporation offers the details of this vessel in good faith but does not and cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
