General Specifications
| Name | Landing Barge |
| Style | Wharf Boat |
| Builder | N/A |
| Hull | Displacement |
| USCG Certified | |
| USCG Dry Dock | |
| USCG Official Number | |
| Route Certification | |
| Passenger Capacity | |
| Gross Tonnage | N/A |
| Net Tonnage | N/A |
| Speed (approx.) | |
| Built | 2008 |
| LOA | 80′ |
| LWL | |
| Beam | 24′ |
| Hull Depth Depth | 6′ |
| Freeboard Depth | |
| Draft | |
| Hull Material | Steel |
| Deckhouse Material | N/A |
| Wheelhouse Material | |
| Tank Capacities | |
| Fuel Consumption |
HULL, SUPERSTRUCTURE AND DECKS
- 5/16 welded steel plate hull and deck
- Interior and exterior metal was abrasive blasted and coated
- Coated in American marine coating
- Steel kevels
- Rub rails – welded vertical pipe
- Non skid decks
- 20′ by 30′ canvas canopy (New 2011) with steel supports
- 200 amp electrical with two 100 amp cut off boxes
- 100 amp breaker box for deck
- 50 amp welding pick up
- Two 40′ schedule 80 steel spuds with lifting eyes
- Two 20′ by 4′ ramps
REMARKS

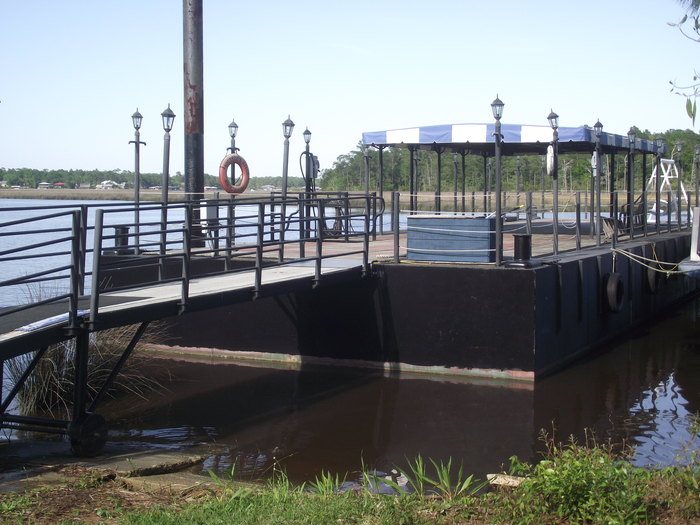

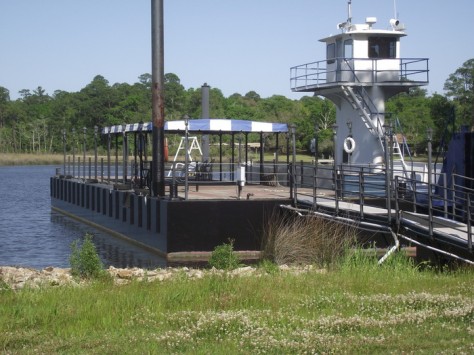

- The Landing Barge is in very good condition. The vessel is a wharf boat.
EXCLUSIONS
- N/A
