Vista King

Accommodations and Layout

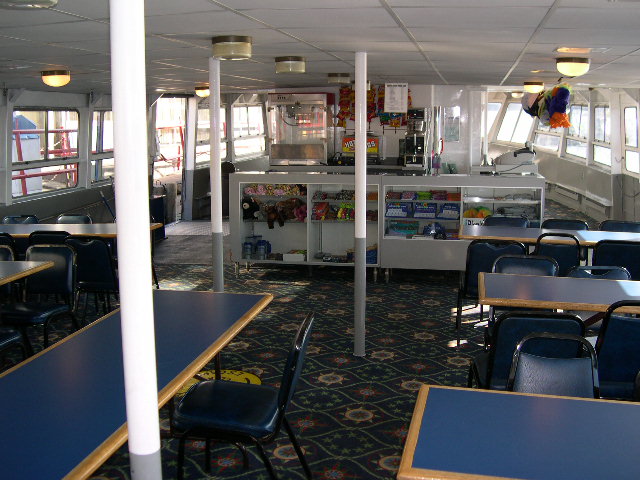

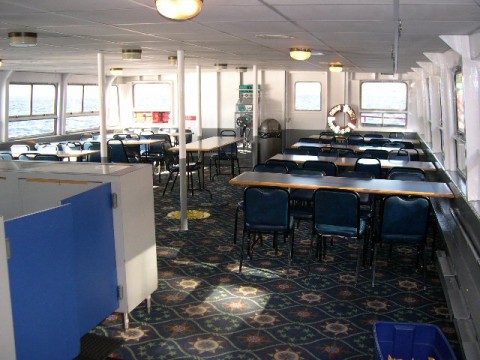

The vessel is arranged with entry doors at amidships. The main salon is arranged with open seating forward, four heads, a dual stairway between the main and 01 decks and the galley/beverage bar forward of amidships along the centerline. The remainder of the salon is open for tables and chairs. The aft deck offers open air space for passengers and access to the stern stairway between the main and 01 decks. The 01 deck offers open air space for passengers with built in bench seating around the perimeter.

Wheelhouse

• Control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
• Morse dual clutch and throttle controls
• Fog bell
• Danforth 6” compass
• 10” remote controlled searchlight
• Two pneumatic windshield wipers
• Helm seat
• Standard Horizon Eclipse VHF/FM marine radio with antenna
• Solara VHF/FM marine radio with antenna
• Colormatic digital depth sounder
• Furuno model 1623 radar system
• Standard model LH10 loud hailer
• Broadcaster intercom system
• Sharp Carousel microwave oven
• Audio Technical stereo receiver, Peavey Architecture Acoustics amplifier, Shure microphone

Salon

• 9 (24” x 72”) laminated tables
• 61 chairs
• 57 plastic exterior chairs

Galley/Beverage Bar

• Laminated counter and cabinet

Electrical

• One ship service 45.0 kW Onan generator powered by a Cummins marine diesel 6 cylinder with fuel filter, keel cooled (engine hours: 5,211 in November 2010) – NEW 2002
• One ship service 12.5 kW Westerbeke generator powered by a Perkins marine diesel 4 cylinder with fuel filter and keel cooled (engine hours: 20,000 in November 2010)
• Ship to shore power switch
• 50 AMP/ 240 VAC shore power service
• 50’ 50 AMP/ 240 VAC power cord
• 115 VAC exterior and interior perimeter lighting
• 120 VAC/32 VDC lighting
• 120 VAC duplex outlets
• Two 32 VDC (4 8V) and two 12 VDC (8D) enclosed heavy duty batteries
• Perko battery isolation switch
• LaMarche automatic 100 amp battery charger
• Newmar automatic 10 amp battery charger
• Baseboard electric heat
• Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

Hull, Superstructure and Decks

• 1/4” steel plate hull
• Five watertight compartments formed by four transverse bulkheads
• 6” split pipe rub rail
• Boarding gates: Amidships
• Deck fittings:
  • Electrical: mid- port
  • Waste: mid- port/star
  • Water: Aft-Center
  • Fuel: mid – port/star.

Mechanical Equipment and Engine Details

• Two 6 cylinder 300 HP Cummins 855 marine diesel engines, fuel filters, seawater strainers with seacocks
• Engine Hours November 2010; Port 11,502, starboard 11,623
• Engine serial numbers: port 10640545, starboard 10648754
• Engine room insulation
• Two 42” x 42” four blade bronze propellers
• 3.5” stainless steel shaft (starboard) and 3.25” stainless steel shaft (port)
• Twin Disc model 514 3:1 reduction gears
• 12 gallon hot water heater

Heads

The vessel is equipped with four heads each contains the following:

• Head
• One sink with an automatic shutoff faucet
• Toilet paper dispenser
• Paper towel dispenser

Safety Equipment

• 255 type I adult size personal flotation devices (stowed in deck boxes)
• 25 type I child size personal flotation devices (stowed in deck boxes)
• Three 30” life rings one with line
• Pyrotechnic distress signals
• Two fire stations including: two 1 1/2” UL approved rubber lined hoses with brass or bronze fittings, two brass or bronze nozzles, two brass or bronze hose bibs. The bilge pump system operates the fire system also
• Fire axe
• Man overboard recovery ladder
• Danforth 90 lb. anchor

Finish

• Exterior coating: Coating
• Exterior decks: Non-skid
• Interior decks:
  • Salon: Carpeting
  • Heads: Tile
  • Galley: Coating
  • Wheelhouse: Vinyl
• Headliner: Acoustical
• Interior Bulkheads:
  • Salon: Coating
  • Heads: Coating

Remarks

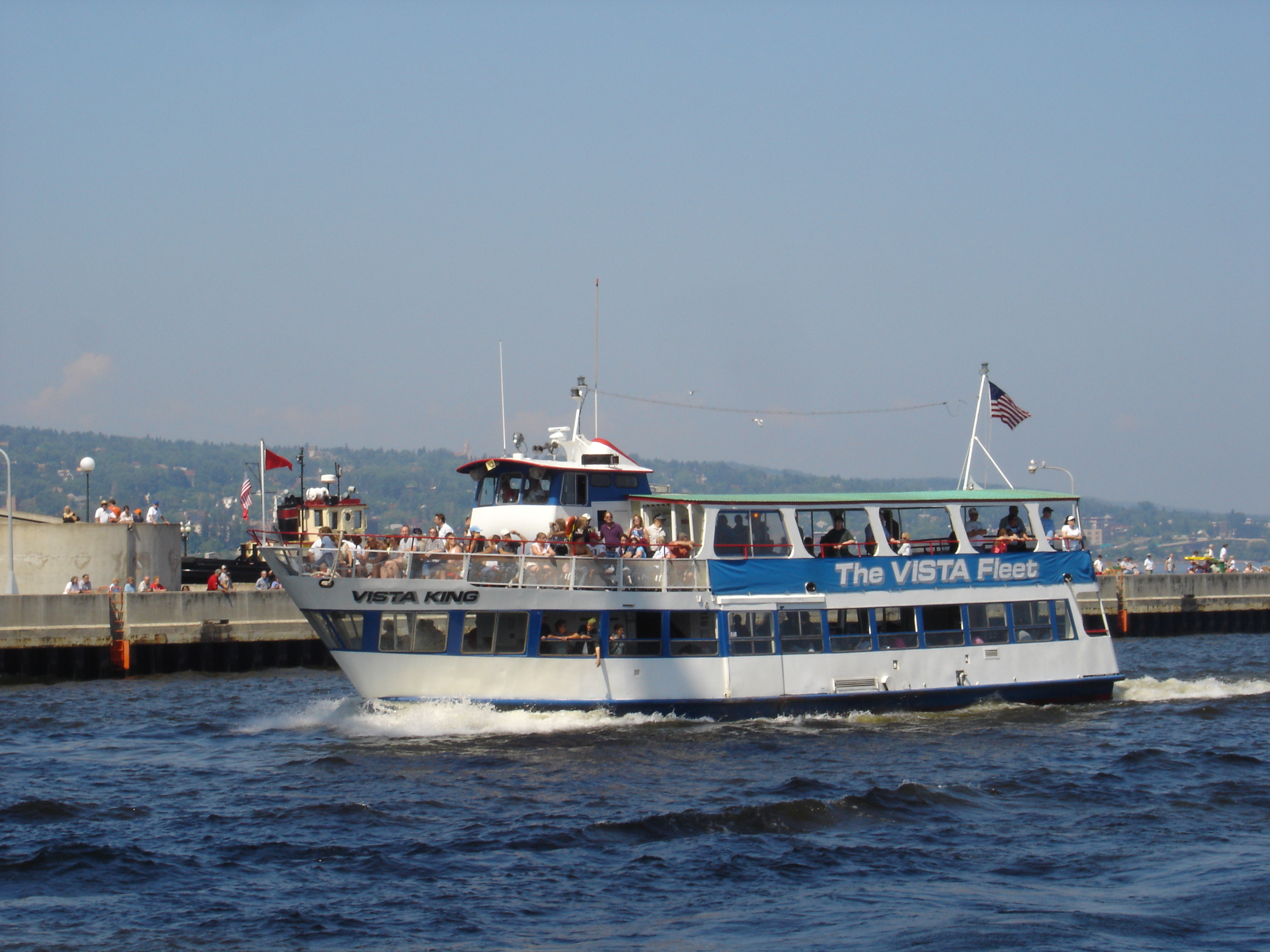

The VISTA KING is in good condition. The owner will obtain a USCG annual exam prior to closing. The vessel offers wonderful viewing for passengers. She works well for sightseeing, dining, charters, etc.
