Pinnacle Marine Corporation

Star of Louisville

General Specifications

Regulatory File

Name The Star
Style Yacht
Builder Marine Builders
Hull Displacement
USCG Certified Due
USCG Dry Dock Due
USCG Official Number 933132
Passenger Capacity 500
Gross Tonnage 87
Net Tonnage 59
Speed (approx.) Cruising: 8 mph @ 1400 RPMMaximum:11 mph @ 2000 RPM
Built 1988
LOA 126’
LWL 107.1’
Beam 35’
Hull Depth 10.5’
Freeboard
Draft 5.9’
Route Certification Rivers
Hull Material Steel
Deckhouse Material Steel
Tank Capacities Fuel: 2,000 gallonsWaste: 3,100 gallonsPotable Water: 3,250 gallons

Accommodations and Layout

The vessel is arranged with passenger boarding on the main deck amidships port or starboard. The main deck is arranged with a dining eating, a stair tower amidships on the centerline and a galley fully aft. Two stairways between the main and 01 decks are along the centerline amidships and aft. The aft stairway has a wheelchair lift. A 01 deck is arranged with dining seating and a beverage bar and heads aft. The 02 offers open air seating and access to the wheelhouse.

Wheelhouse

  • Control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters, high water bilge alarm)
  • Pneumatic clutch and throttle controls
  • Port and starboard wing controls
  • Fog bell
  • Kahlenberg trumpet horn
  • Carlisle & Finch lever controlled searchlight
  • Rudder indicator
  • Windshield wiper
  • Helm seats
  • Standard Eclipse and ICOM model ICM-402 VHF/FM marine radios with antennas
  • Standard Horizon
  • Furuno model 1761 radar system
  • Ritchie magnetic compass with lighted binnacle
  • Eight station intercom system
  • Wing controls (port/starboard)

Salon (Main Deck)

  • 28 tables (36” x 36” )
  • 141 interior dining chairs (stacking)
  • Recessed lighting
  • Dance floor
  • Hot and cold buffet
  • DJ center (SSM model 1750 mixer, Yorkville model SR-300 power amplifier, Rane model CP64)

Galley

  • Stainless steel prep tables
  • Stainless steel three partition sink
  • Stainless steel single partition sink
  • Alto Sham model 1000-TH-1food warmers
  • Two Vulcan model VC4ED electric ranges
  • One Proofer model HD6ALX steamer
  • Two True double door refrigerators
  • Amana microwave oven
  • Keystone EcoLab dishwasher
  • Exhaust fan

Salon (01 deck)

  • 22 tables (24” x 24”)
  • 11 tables (24” x 40”)
  • 5 tables (30 diameter)
  • 111 interior dining chairs (stacking)
  • Recessed lighting
  • Dance floor
  • Wait station (Bunn coffee machine, hot and cold stainless steel buffet)
  • DJ Center (Vistax model PCV-150, Yorkville model SR 300 amplifier, Yamaha model 4220 amplifier, Rackrider model RR-15NL power conditioner, Rane model CP64 commercial processor)

Beverage Bar

  • Metal top
  • Three partition stainless steel sink
  • Two stainless steel cocktail stations with two soda guns
  • Refrigerator
  • True model TD-36-12-S cooler
  • Frozen drink machine
  • 18’ stainless steel speed rails

Beverage Bar (01 Deck)

  • Metal top
  • Three partition stainless steel sink
  • Two stainless steel cocktail stations with two soda guns
  • Refrigerator
  • True model TD-36-12-S cooler
  • Frozen drink machine
  • 18’ stainless steel speed rails

Beverage Bar (02 Deck)

  • Metal top
  • Three partition stainless steel sink
  • Two stainless steel cocktail stations with two soda guns
  • Restrauranteers refrigerator
  • True Cooler
  • Perlick cooler
  • 18’ stainless steel speed rails

Electrical

  • Ship service 110.0 kW Lima generator and two 80 kW Lima generators each powered by a Cummins 6VT5.9 6 cylinder marine diesel engine with fuel filter, keel coolers
  • Hours 15,000 port,15,000 starboard in January 2014
  • Ship to shore power switch
  • 100 AMP/ 240 VAC shore power service
  • 115 VAC exterior and interior perimeter lighting
  • 120 VAC/12 VDC lighting
  • 120 VAC duplex outlets
  • 3 12 VDC 8D enclosed heavy duty batteries
  • Two battery isolation switch
  • Automatic 40 amp battery charger with DC meter
  • 24 ton water cooled reverse cycle heat pump system with two stage electric heat stations
  • Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

Hull, Superstructure and Decks

  • 3/8” steel plate hull
  • 1/4” steel plate deckhouse
  • Insulated deckhouse
  • Eight compartments formed by seven transverse bulkheads
  • 8” fan nosed rub rail
  • Boarding gates: two amidships on the main deck
  • Eight 20” kevels, three steel Sampson posts
  • Deck fittings:
    • Electrical: Amidships port
    • Waste: Amidships port
    • Water: Amidships port/star
    • Fuel: Amidships port/star

Mechanical Equipment and Engine Details

  • Two 8 cylinder naturally aspirated 350 HP Cummins NTA-855 marine diesel engines, fuel filters, seawater strainers with seacocks
  • Johnson keel cooling system
  • Tonaco model TM-8285 3.5:1 reverse reduction gears
  • Two 4” stainless steel propeller shafts
  • Engine room insulation
  • Two 48” four blade stainless steel propellers
  • 80 gallon water heater

Heads

The vessel is equipped with _ heads each contains the following:

  • Female head contains two partitioned toilets, two sinks
  • Male head contains one partitioned toilets, one urinal, one sink

Safety Equipment

  • 500 type II adult size personal flotation devices
  • 50 type II child size personal flotation devices
  • 3 Jim Buoy 30” life ring with line
  • One illuminated float light
  • One 20 lb. dry chemical fire extinguisher
  • Pyrotechnic distress signals
  • 2 fire stations including: UL approved rubber lined hoses with brass or bronze fittings, brass or bronze nozzles, brass or bronze hose bibs.
  • Fire axe
  • Danforth style anchor with chain and 600’ nylon line

Finish

  • Exterior coating: High Gloss
  • Exterior decks: Carpet
  • Interior decks:
    • Salon: Carpeting
    • Heads: Ceramic
    • Galley: Epoxy
    • Bar: Aztec
    • Wheelhouse: Carpet
  • Headliner: Vinyl
  • Interior Bulkheads:
    • Salon: Vinyl
    • Heads: Ceramic
    • Galley: Epoxy

Remarks

The M/V THE STAR is in good condition. The yacht offers a sleek style and wonderful viewing for passengers.

Exclusions

N/A

Media Gallery

  • 5 Salon 3
  • 4 Salon 2

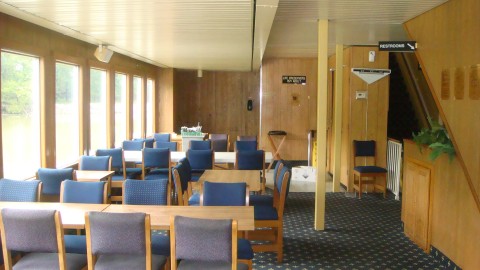

  • 3 Salon 1
  • 7 Helm
  • 8 Galley

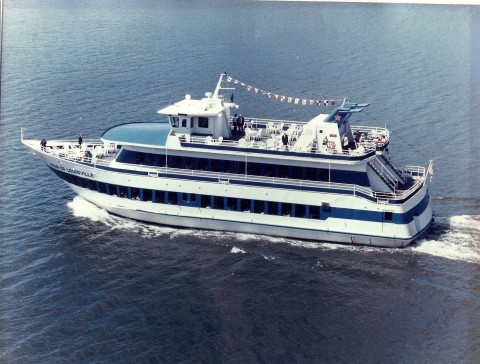

  • 1 Exterior 2
  • 1 Exterior 1

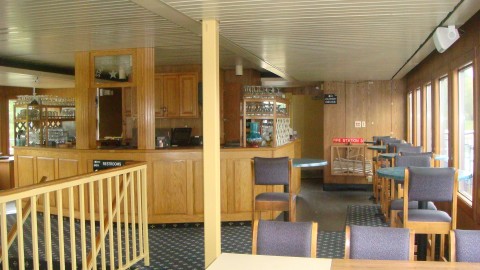

  • 6 Beverage Bar

Pinnacle Marine Corporation offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyor(s), to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
