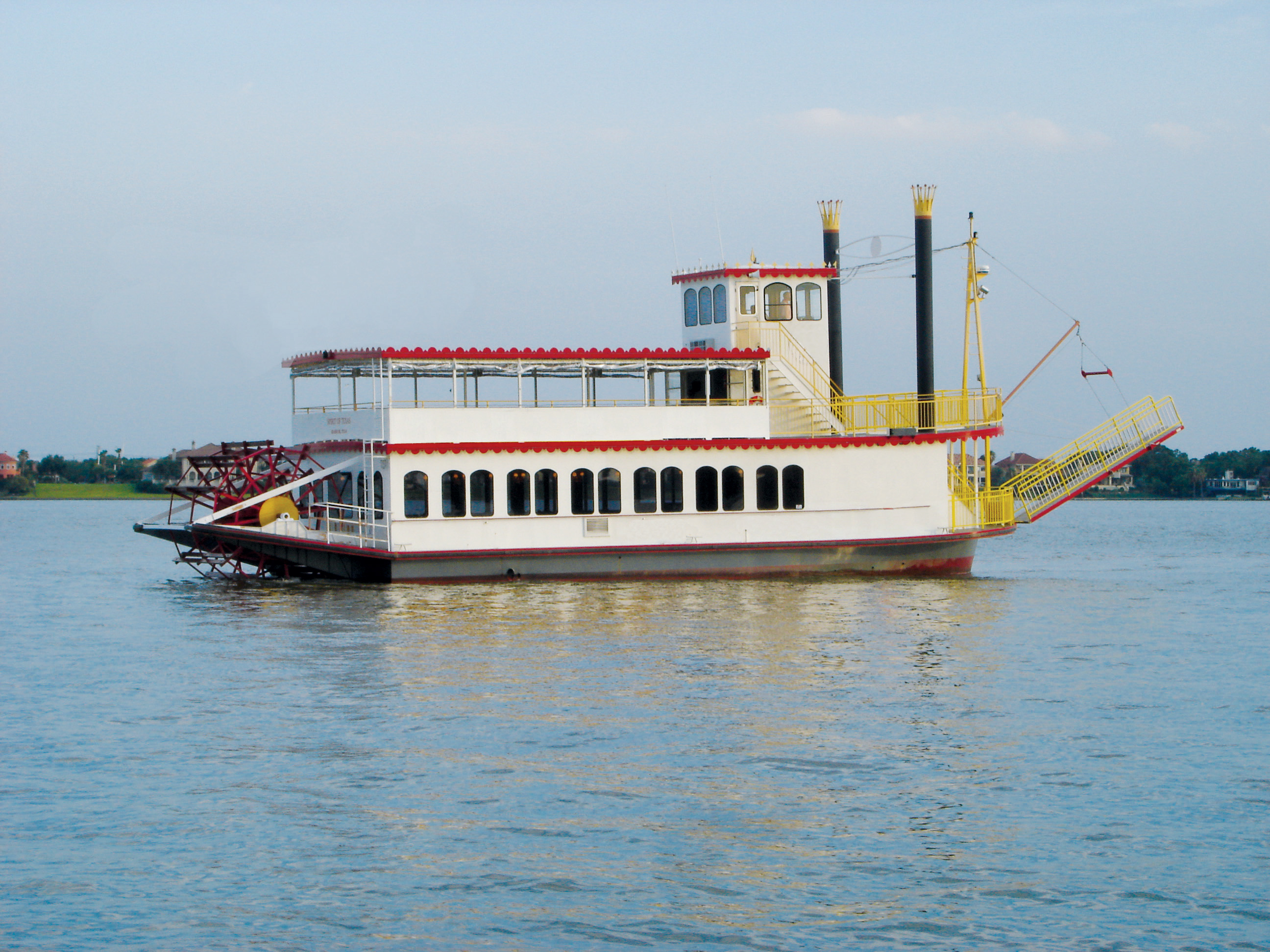

River Belle

Accommodations and Layout

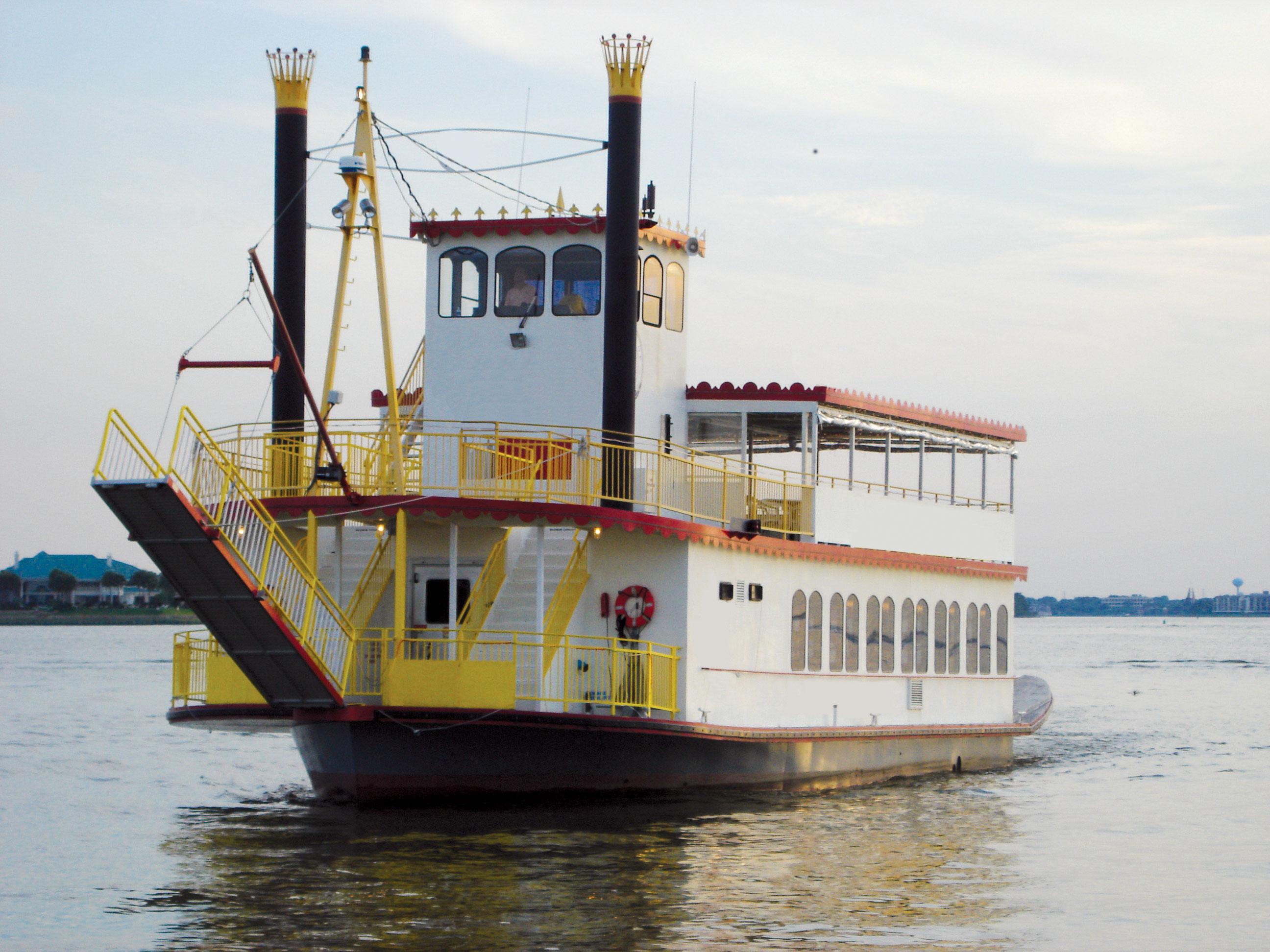

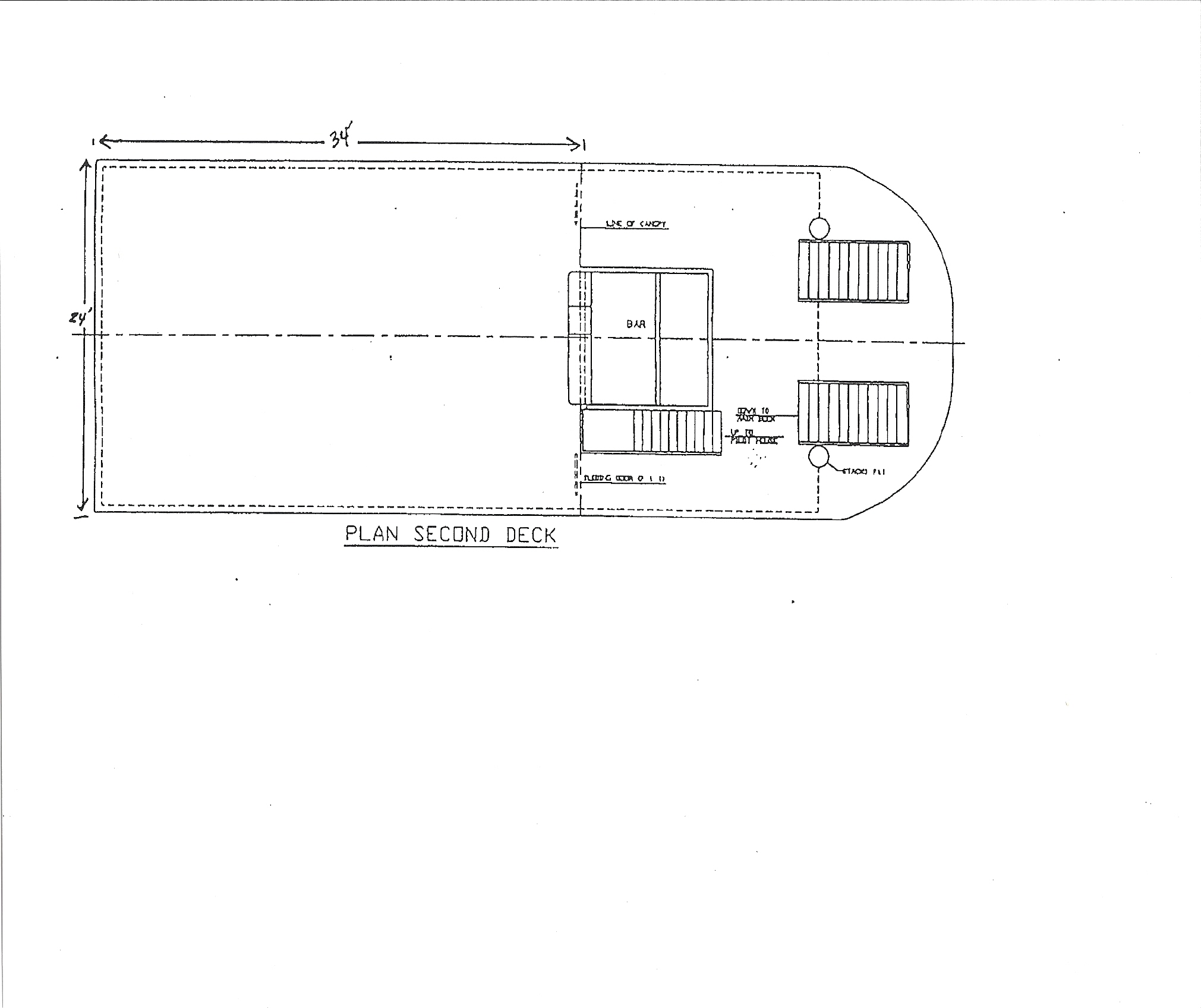

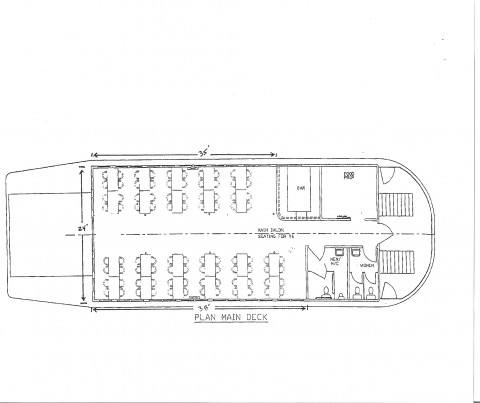

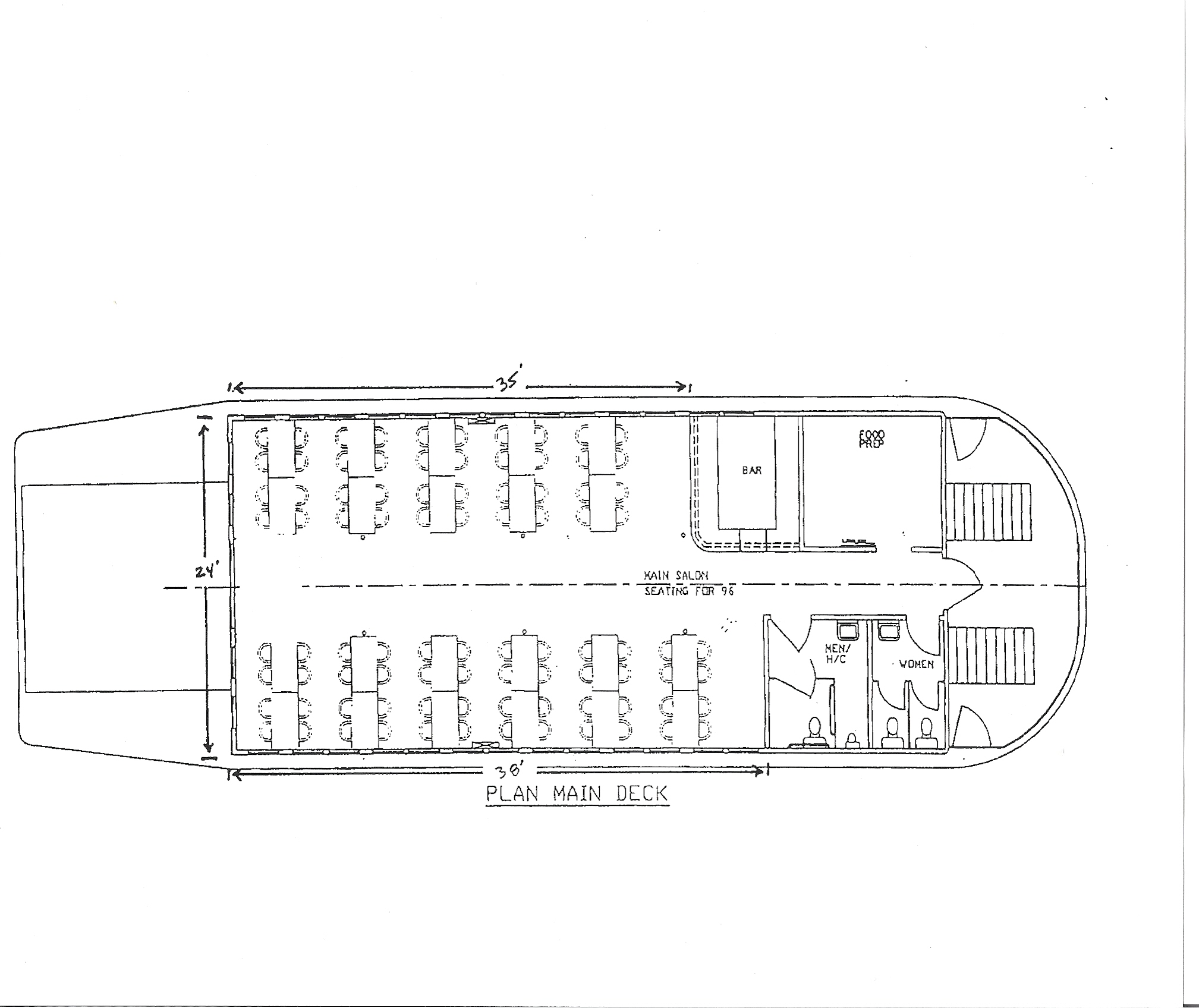

The vessel is arranged with an entry door off the bow. The main deck is arranged with a beverage bar forward and dining aft with two heads. The 01 deck provides open air space for passengers as well as the wheelhouse.
Wheelhouse

• Control station with Sturdy engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters) MS model 1204-41 hydraulic steering system
• Mathers Micro Commander dual clutch and throttle controls
• Helm seat
• Fog bell
• Two Kahlenberg whistles
• Two Jabsco model 61042-4002 8″ remote controlled searchlights
• Wagner model 150 rudder indicator
• Windshield wiper
• TOA model PM-222U/TC-304ST intercom/loud hailer
• Two Standard model 60 digital depth sounders
• Two ICOM model 402B VHF/FM marine radios with antennas
• Furuno Model 1622 (12 mile) radar system with 18” dome LCD screen
• Raytheon model 620 Global Positioning System (GPS) Chart Plotter
• Azimuth model 1000B magnetic compass with lighted binnacle
• Three TOA model A-912MK2 amplifiers, Magnavox model MDV460 compact disc player, Sony model CDP CE375 compact disc player, Phillips model DVP 5982 compact disc player, wireless and corded microphones, Sirius satellite radio system
• Closed circuit monitoring system throughout the vessel

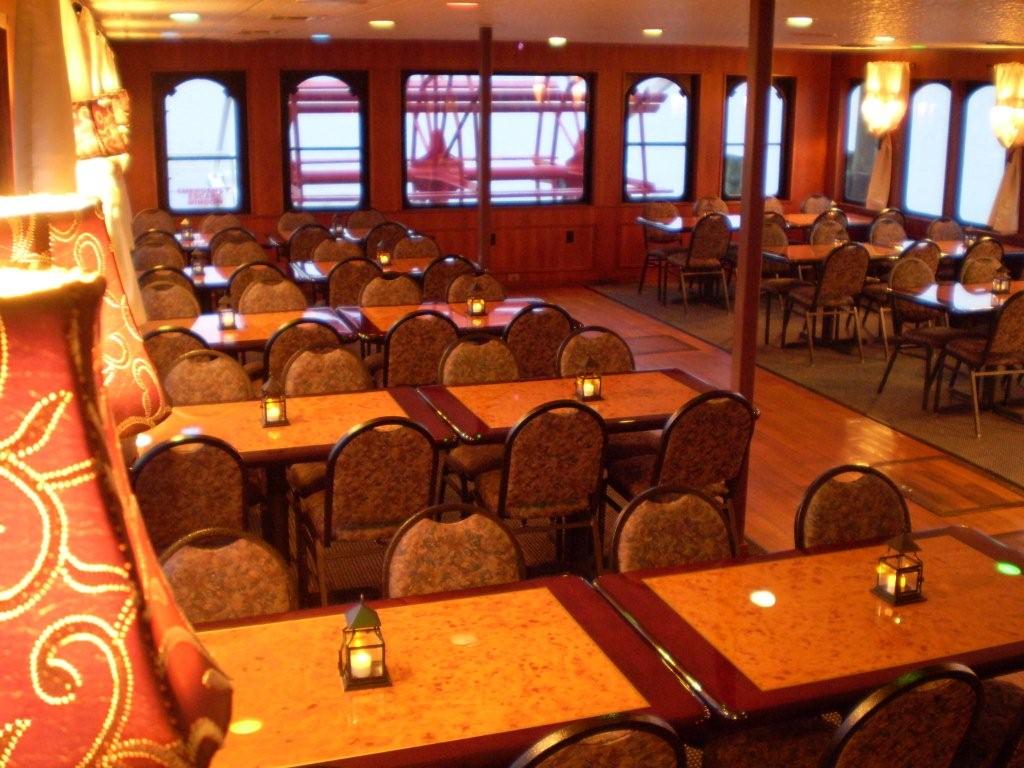

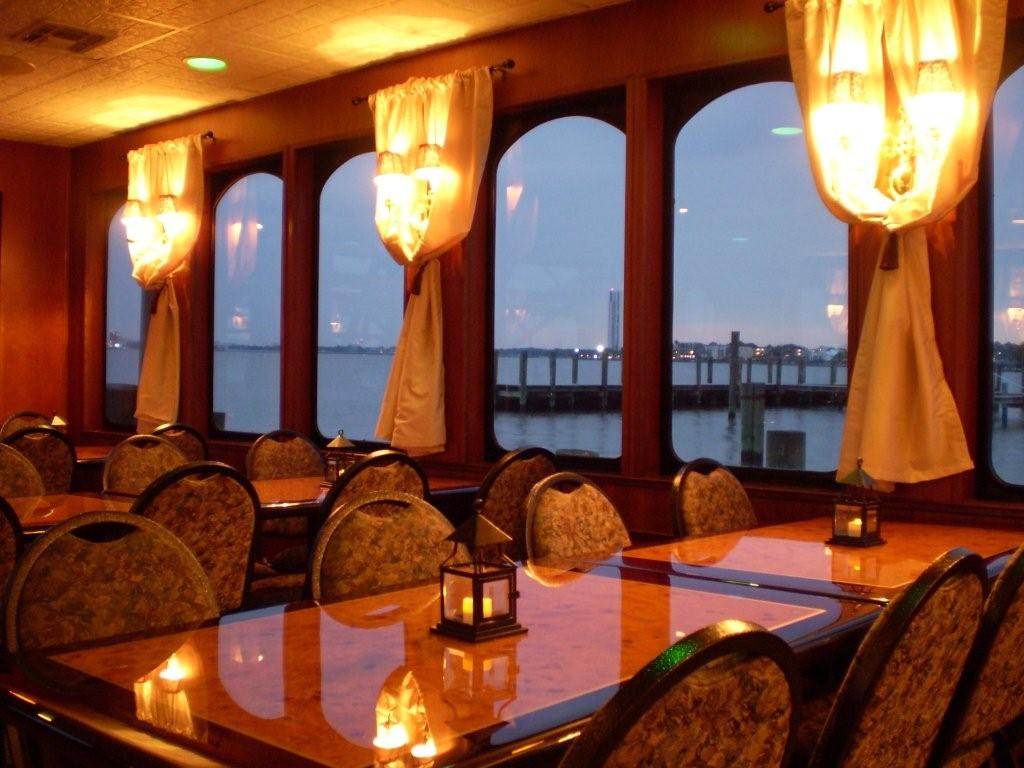

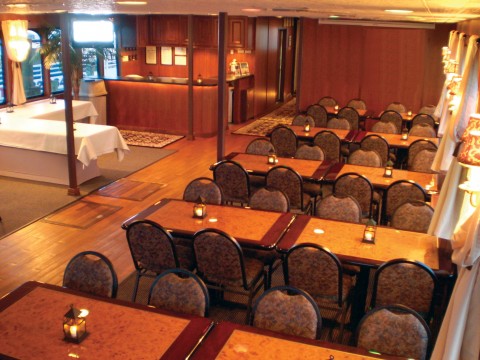

Salon (Main Deck)

• 9 tables (32″ x 96″) with mahogany inlaid tops
• 96 interior dining chairs
• 2 buffet tables
• Recessed lighting
• Viewsonic model 11770-1M flat screen television with compact disc and DVD
• Drop down presentation screens

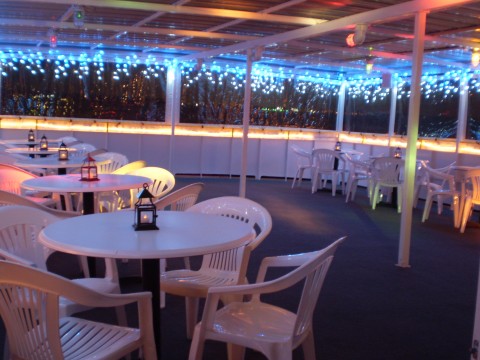

Salon (01 Deck)

• 10 tables (36″ diameter)
• 125 stacking chairs

Galley

• Wittco model BarPlex model D200-1200 16 rack warming oven
• Sharp microwave oven
• True model ST629 33 cubic foot refrigerator/freezer
• Stainless steel prep tables
• Stainless steel three partition sink
• Stainless steel sink partition sink

Beverage Bar (Main Deck)

• Laminate top
• Stainless steel sink
• Stainless steel three partition sink
• Beverage Aire model DW 49 under counter refrigerator
• Stainless steel speed rail
• Two stainless steel cocktail stations
• Wunder Bar system

Beverage Bar (01 Deck)

• Laminate top
• Stainless steel sink
• Stainless steel three partition sink
• Beverage Aire model DW 49 under counter refrigerator
• Stainless steel speed rail
• Two stainless steel cocktail stations
• Wonder Bar system

Electrical

• Two ship service 30.0 kW Marathon generators each powered by a Cummins 4B3.9 marine diesel engine with fuel filter, seawater strainer and seacock (Hours in april 2011: 1,842 port 3,054 starboard)
• Ship to shore power switch
• 100 AMP/ 240 VAC shore power service
• 50′ 100 AMP/ 240 VAC power cord
• 115 VAC exterior and interior perimeter lighting
• 120 VAC/12 VDC lighting
• 120 VAC duplex outlets
• Five 12 VDC 8D enclosed heavy duty batteries
• Perko battery isolation switch
• Two automatic battery chargers
• Florida Heat Pump model EM 060-3FN twenty ton water cooled reverse cycle heat pump system
• Amana one ton air cooled air conditioner in the wheelhouse
• 24 VDC manifold bilge system
• Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

Hull, Superstructure and Decks

• 1/4″ steel plate hull
• Insulated deckhouses
• Six watertight compartments formed by five transverse bulkheads
• Boarding gates: three
• Wooster stair treads
• Stainless steel thresholds
• Metal 01 deck canopy with canvas and eisenglass drop curtains
• Two smoke stacks
• Six 8″ kevels
• Deck fittings:
  • Electrical: forward port
  • Waste: forward port/star
  • Water: forward
  • Fuel: midship port/star

Mechanical Equipment and Engine Details

• Two 6 cylinder turbo charged after cooled 6CTA8.3 255 HP Cummins marine diesel engines, fuel filters, seawater strainers with seacocks (engine hours: 3,638 port, and 3,639 starboard in April 2011)
• Engine room insulation
• Two 29′ four blade manganese bronze propellers
• 2.5′ stainless steel shafts
• ZF model 280:1 reduction gears
• 80 gallon water heater
• Champion 60 gallon air compressor

Heads

The vessel is equipped with two heads each contains the following:

• Commercial head (one in Men’s and two in Women’s)
• Two urinals in the Men’s head
• One sink in Men’s and two sinks in Women’s with an automatic shutoff faucet
• Toilet paper dispenser
• Paper towel dispenser

Safety Equipment

• 155 type I adult size personal flotation devices
• 16 type I child size personal flotation devices
• Three 30″ life rings one with line
• Five self actuated rescue lights
• Five B-II and One B-I 10 lb. dry chemical fire extinguisher
• Pyrotechnic distress signals
• Two fire stations including: two 2″ UL approved rubber lined hoses with brass or bronze fittings, two brass or bronze nozzles, two brass or bronze hose bibs. The bilge pump system operates the fire system also
• Fire axe
• Anchor
• Man overboard recovery ladder

Finish

• Exterior coating: Coating
• Exterior decks: Non-skid
• Interior decks:
  • Salon: Hardwood (cherry) and
  • Carpeting
  • Heads: Ceramic
  • Galley: Coated
  • Bar: Ceramic
  • Wheelhouse: Carpeting
• Headliner: Armstrong Tincraft 2′ x 2′
• Interior Bulkheads:
  • Salon: Wood panel
  • Heads: Wall covering
  • Galley: Panel

Remarks

The RIVER BELLE is in very good condition. She offers a first class and spacious experience for her passengers.
