Ozark Princess

Accommodations and Layout

The vessel is arranged with two forward entrances with the bar between. Two heads are at mid-ship and the galley is fully aft on the main deck. There is one forward and one midship starboard stairway leading to the open bridge deck and wheelhouse.

Wheelhouse

• Control station with engine instrumentation (i.e., tachometer, engine oil pressure, water temperature, and fuel level indicator)
• Morse clutch and throttle controls
• Hydraulic steering
• Fog bell
• Large dual trumpet horn
• Lever controlled searchlight
• Single windshield wiper
• Chart table
• Hailer with speaker
• Standard Horizon Intrepid VHF/FM marine radio with antenna
• Apelco VHF/FM marine radio with antenna
• Impulse model QT206 depth finder
• Danforth magnetic compass with lighted binnacle
• Intercom (wheelhouse, bar, galley, engine room)
• Public address system with microphone outlets in the wheelhouse and near the bar
• Three exterior quartz lights highlighting fore and aft decks
• Telephone system wired on board the vessel

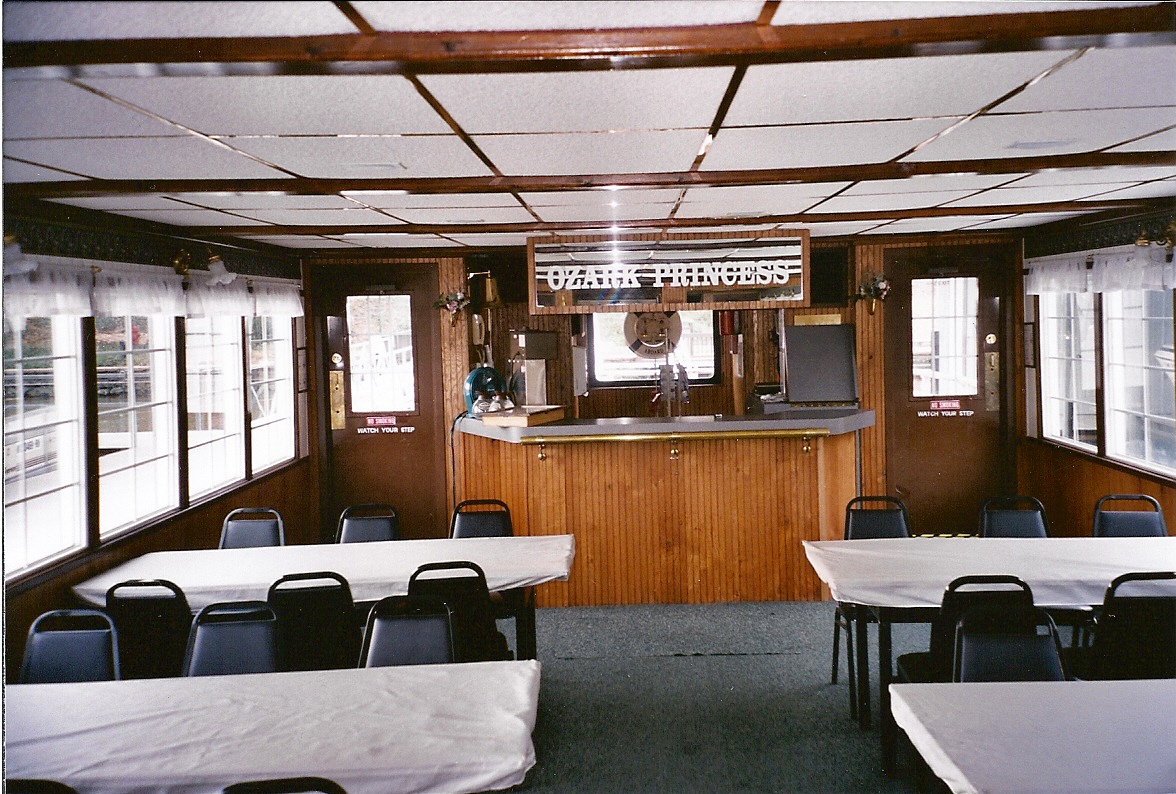

Salon

• 8 tables (60”)
• 70 chairs

Galley

• Enclosed with six panel access door
• Laminated cabinetry under laminated countertop
• Overhead laminated cabinetry
• Single partition stainless steel sink
• Three partition stainless steel sink
• One Beverage Aire refrigerator

Beverage Bar

• Cheery base with laminated top
• Stainless steel sink
• One cocktail station
• Beverage Aire refrigerator
• Stainless steel speed rail
• Brass hanging glass storage
• Brass arm rail
• Custom cabinetry
• Pre mix soda gun
• Blaupunkt stereo receiver, Blaupunkt model CDC M7 ten compartment compact disc player, Portland model CM 85 cassette player with speakers

Electrical

• One ship service 20.0 kW Kohler (NEW 2008) powered by a Yanmar marine diesel 4 cylinder single phase generator with Racor fuel filter, seawater strainer and seacock
• Ship to shore power switch
• 100 AMP/ 120 VAC shore outlet
• 50’ 100 AMP/ 120 VAC electrical cord
• 120 VAC/12 VDC lighting
• 120 VAC duplex outlets
• Three 12 VDC 8D enclosed heavy duty batteries
• Automatic battery charger with DC meter
• Cruisair 96,000 BTU/ 8 ton water cooled reverse cycle heat pump system
• Air cooled 13,500 BTU/ 1 ton air cooled air-conditioning system for the wheelhouse
• 120 VAC bilge system with manifold. This system also operates the fire system
• Two 120 VAC heaters with blowers on the bridge deck
• Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

Hull, Superstructure and Decks

• 7 gauge welded steel plate hull
• 2” x 2” hull stringers on 16” centers
• Five watertight compartments formed by four transverse bulkheads
• 12 gauge welded steel plate deck house
• Fully insulated deck house
• Boarding gates: two forward and one at mid-ship-starboard, and two on the bridge deck
• Eight steel kevels on main deck and six steel kevels on bridge deck
• Deck fittings:
  • Electrical: Starboard/aft
  • Waste: Starboard/aft
  • Water: Starboard/midship
  • Fuel: Starboard/midship
• Mahogany rail caps for the passenger railings
• Bridgedeck canvas canopy with metal frame

Mechanical Equipment and Engine Details

• Two 4 cylinder turbo charged four-stroke cycle 230 CID 130 HP @ 1800 RPM BMW marine diesel engines (NEW 1998), fuel filters, seawater strainers with seacocks
• Mercruiser stern drives
• Gangplank with 120 VAC winch
• 20 gallon water heater

Safety Equipment

• 154 type II adult size personal flotation devices
• 16 type II child size personal flotation devices
• One Jim Buoy 30” life rings with lines
• One illuminated float light
• One 20 lb. dry chemical fire extinguisher
• Two 2.5 lb. dry chemical fire extinguishers
• Pyrotechnic distress signals
• Two fire stations including: two 3/4” UL approved rubber lined hoses with brass or bronze 5/8” fittings, two brass or bronze nozzles, two brass or bronze 5/8” hose bibs
• Two anchors

Finish

• Exterior coating: White with maroon (NEW 2007)
• Exterior decks: Maroon carpet (NEW 2008)
• Interior decks:
  • Salon: Green carpet
  • Heads: Ceramic
  • Galley: Ceramic
  • Bar: Ceramic
  • Wheelhouse: Carpet
• Headliner:
• Interior Bulkheads:
  • Salon: Oak
  • Heads: Wall covering
  • Galley: Wall covering

Remarks

The OZARK PRINCESS has a wonderful decor. This vessel is well setup for sightseeing, dining and charter cruises.

Exclusions

N/A
