General Specifications
| Name | LILY |
| Style | Yacht |
| Hull | Displacement |
| USCG Certified | Yes |
| USCG Dry Dock | Yet to Be Launched |
| USCG Official Number | |
| Passenger Capacity | 149 |
| Gross Tonnage | |
| Net Tonnage | |
| Built | In Process |
| LOA | 105’ |
| LWL | |
| Beam | 25’6” |
| Hull Depth | 6’ |
| Freeboard | |
| Draft | 3’ Molded 4’3” Clearance |
| Route Certification | |
| Hull Material | Steel |
| Deckhouse Material | Steel |
| Tank Capacities | Fuel: 1,152 gallons with transfer pump 1152 gallons with 116 gallon tank and transfer pump Water: (potable): 425 gallons |
Hull, Superstructure and Decks
- 1/4” steel hull and transom plating
- 3/16” steel deckhouse plating
- Six watertight compartments formed by five transverse bulkheads
- 8” formed plate rub rail
- Boarding gates: two forward and two aft
- Eight 15” kevels
- Soft patch access for all engines and generators
- Cofferdams and bilge pump for each shaft log
- Stanchion mast
- White metal sandblast
- Anticorrosion epoxy on all surfaces
- Anticorrosion primer above waterline
- Antifoul below the waterline
- Acrylic Polyurethane above waterline
- Tube and rough plumbing for stern thruster
Hull, Superstructure and Decks
- 1/4” steel hull and transom plating
- 3/16” steel deckhouse plating
- Six watertight compartments formed by five transverse bulkheads
- 8” formed plate rub rail
- Boarding gates: two forward and two aft
- Eight 15” kevels
- Soft patch access for all engines and generators
- Cofferdams and bilge pump for each shaft log
- Stanchion mast
- White metal sandblast
- Anticorrosion epoxy on all surfaces
- Anticorrosion primer above waterline
- Antifoul below the waterline
- Acrylic Polyurethane above waterline
HVAC & Water System
- Two fire stations wtih 12′ 50′ hose
- 40 ton water cooled revserse cycle heat pump system
- 40 and 20 gallon water heaters with quick disconnects
- 120 VAC water pump wtih accumulator tank
Mechanical Systems
- Wesmar 60 hp bow thruster
- Two 90 kW generators powered by a John Deere marine diesel engines with raw water cooling
- Engine instrumentation installed in wheelhouse
- Rubber mount vibration dampening system
- Generator muffler package
- Commercial grade lighting in all compartments
- 225 amp (120/240 VAC) main panel with two sub panels
- 50’ shore power cord (2 gauge/5 conductor) with connecter
- 100 amp shore power inlet (single phase)
- 100 amp shore power switch with interlock
- Self priming ½” pump 50 GPM @ 60 PSI minimum
- 5 HP Red Jacket fire pump with metal clad flex hose
- Electrical connections for this package
Electronics Package
- Offshore seat
- Engine instrumentation
- Compass
- Two ICOM model 504 VHF/FM marine radios with digital antennas
- Raymarine module depth sounder and global positioning system
- Raymarine model E120 12.1” multi function navigation display
- Grover dual trumpet horn with 6hp/33 gallon air compressor
- Halogen searchlight
- Rudder angle indicator
- Electrical connections for this package
Beverage Bar Package (Two Stations)
- Club top cooler
- 24” cocktail stations
- Solid surface countertop
- Altro deck covering
- Hoshizaki commercial ice machine
- Three compartment stainless steel sink
- Hand washing sink
Galley Package
- Stainless steel bulkheads and countertop
- Two burner cook top with guard rails
- Griddle
- Under counter dishwasher
- Silver King 27′ undercounter refrigerator
- Silver King 48” under counter refrigerator
- Silver King 27′ undercounter freezer
- Silver King 48′ undercounter refrigerator/freezer
- Sears ½” garbage disposal
- Stainless steel microwave oven
- Three stacked convection ovens
- Two stacked cook and hold ovens
- Three Bunn commercial coffee brewer with decanters
- Two GE 270 CFM exhaust fans
- Hand washing sink and mop sink
- Altro deck covering
Head Package
- Sealand model 510 marine toilet (one in male head and two in female head) – stainless steel partitions
- Gerber low flush urinal (one in male head)
- Pedestal base sink (one in male head and two in female head)
- Mirror (beveled edge)
- Exhaust fan
Safety Package
- 156 Type I Adult PFD’s, 16 child Type I PFD’s with Vessel Name
- Self actuating rescue light
- Three 30” life rings with Vessel Name
- Six 10lb B2 fire extinguishers with a B1 in the wheelhouse
- Fire Axe
- Steel claw anchor with 200’ of 3/8” chain
- Chrome plated fog bell
- Wooster stair threads
- Portable wheelchair assist boarding ramp
Electronics Package
- Offshore seat
- Engine instrumentation
- Compass
- 12′ seachlight
- Two ICOM model 504 VHF/FM marine radios with digital antennas
- Raymarine module depth sounder, radar and global positioning system
- Raymarine model E120 12.1” multi function navigation display
- Grover dual trumpet horn with 6hp/33 gallon air compressor
- Halogen searchlight
- Rudder angle indicator
- Three windshield wipers
- Defrost system
- Three station intercom
- Video monitoring system

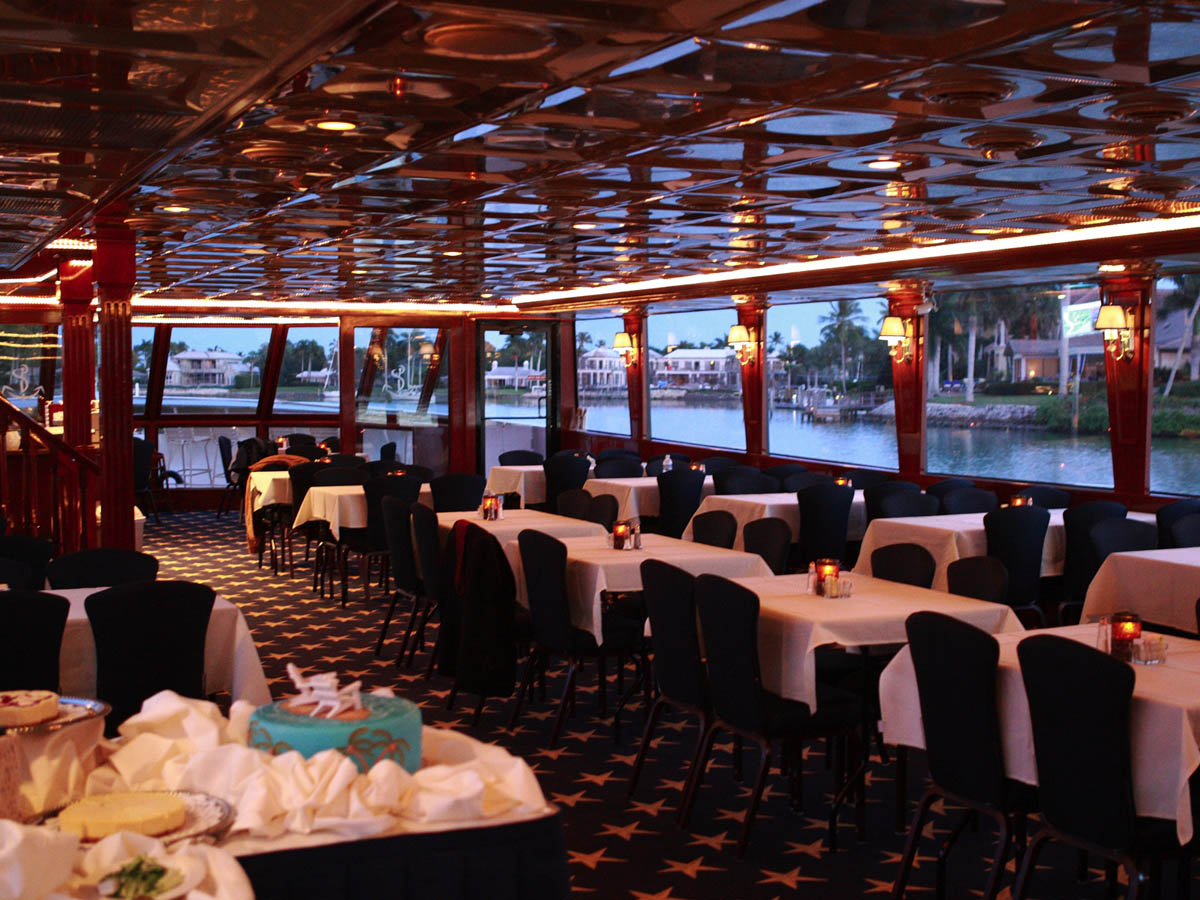

Décor Package
- Thermal insulation and sheathing throughout both decks
- Interior and exterior lighting
- Interior and exterior electrical outlets
- Deck coverings
- Bulkhead coverings
- Overhead coverings
- Aluminum concealed grid ceiling system
- Crown molding above windows port and starboard
- Wood panels over window mullions and window sills port and starboard
- Solid core six panel interior doors
- Non skid applied to exterior decks
Bride’s Suite
- Private bride’s suite including a makeup counter, beveled mirrors, cherry interior, seating, overhead and strip lighting and carpet
- Head with ceramic deck covering, mirrors, lights and aluminum concelaed grid ceiling
