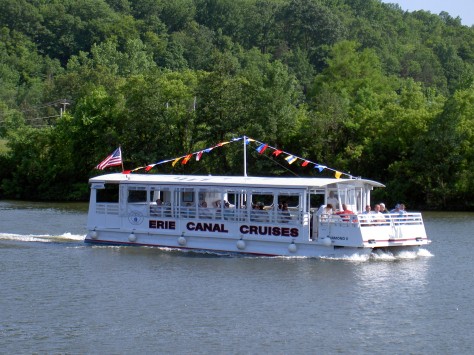

General Specifications
| Name | LIL Diamond II |
| Style | Pontoon |
| Builder | Trident Marine |
| Hull | Displacement |
| USCG Certified | Yes |
| USCG Dry Dock | May 2012 |
| USCG Official Number | 1195729 |
| Passenger Capacity | 60 |
| Gross Tonnage | 7 |
| Net Tonnage | 7 |
| Speed (approx.) | Cruising: 10.5 mph @ 4200 RPM
Maximum: 17 mph @ 5800 RPM |
| Built | 2007 |
| LOA | 50’0″ |
| Beam | 12’ |
| Freeboard | 2’0” |
| Draft | Water 1’5″ |
| Route Certification | Rivers |
| Hull Material | Aluminum |
| Deckhouse Material | Aluminum Frame |
| Tank Capacities | Fuel: 92 gallons-alum: Waste: 30 gallons-alum: Potable Water: 27 gallons-plast |
Accommodations and Layout

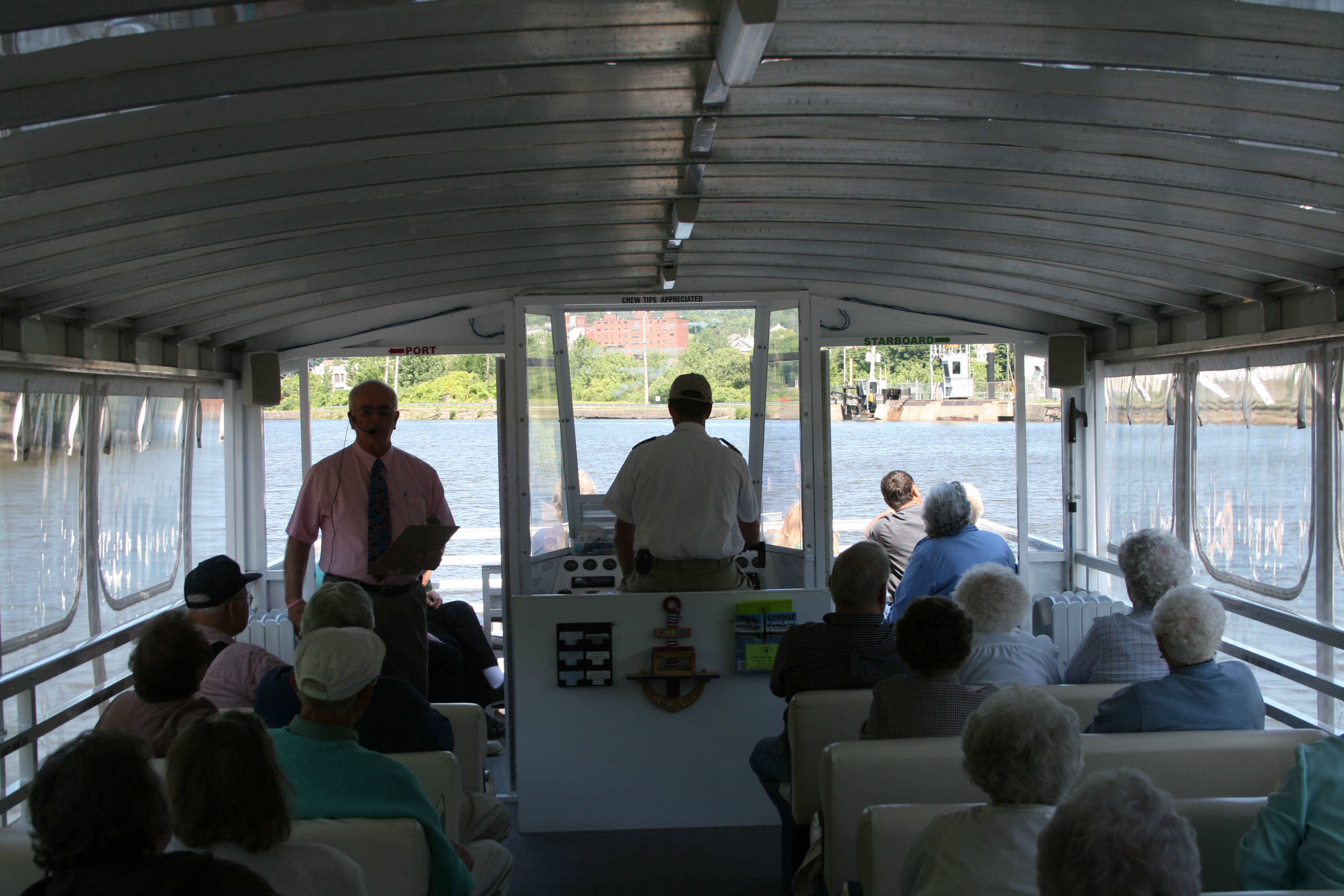

The vessel is arranged with an open deck forward with fixe bench seats (12) the pilot station forward of amidships on the centerline. Aft of the pilot station are fixed bench seats (38) with a an aisle along the centerline. The head is located aft on port.
Wheelhouse
- Control station with engine instrumentation (i.e., tachometer, hour meters)
- Cable clutch and throttle controls
- Large single trumpet horn
- Go Light searchlight
- Upholstered helm seat
- Nady wireless sound system with speakers
Electrical System
- 1,000 watt inverter
- 12 VDC lighting
- Three Perko battery isolation switches
- Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)
Hull, Superstructure and Decks
- 1/8” 36″ diameter welded aluminum plate pontoons
- Ten watertight compartments per pontoon formed by nine transverse bulkheads
- Boarding gates: two aft port and starboard
- Six galvanized kevels
- Roll up/down eisenglass enclosure
- Deck fittings:
- Electrical: n/a
- Waste: Port/aft
- Water: n/a
- Fuel: port/starboard
Mechanical Equipment and Engine Details
- Two 90 hp Honda four stroke outboard engines (NEW 2010)
- Engine hours: port 1,000/ Starboard 1,000 in February 2012
Heads
The vessel is equipped with one head, each containing the following:
- One Jabsco macerator head
- One sink with faucet
- Cabinet
- Toilet paper dispenser
- Paper towel dispenser
Safety Equipment
- 62 type II adult size personal flotation devices
- 36 type II child size personal flotation devices
- 1 Jim Buoy 30” life rings with line
- One illuminated float light
- Three 10 lb. dry chemical fire extinguishers
- Two 2.5 lb. dry chemical fire extinguishers
- Pyrotechnic distress signals
Finish
- Exterior coating: powder coat
- Decks: Mari-deck over plywood
- Interior decks: Mari-deck over plywood
Remarks
The LIL DIAMOND II is in very good condition. The eisengalss is ready for replacement. She is well suited for sightseeing and charter type cruises.
Exclusions
N/A
