Fiesta Queen

Accommodations and Layout

The vessel is arranged with forward cabin entry through two forward doors.The beverage bar is fully forward with a foreword dining salon and aft dining salon. The galley is aft of amidships. There are two stairways located off the forward deck that access the upper deck. The upper deck has a canopy, an open deck and the pilothouse.

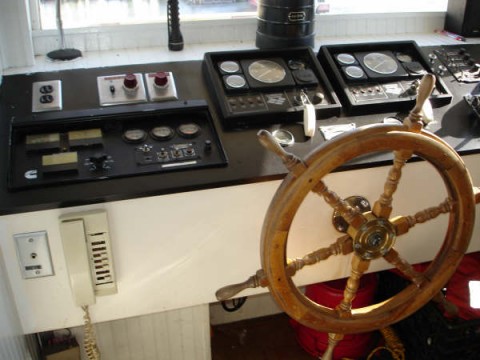

Wheelhouse

• Control station with engine instrumentation (i.e., tachometer, engine oil pressure, Ammeters, hour meters)
• Morse cable throttle and clutch
• Fog bell
• Large dual trumpet horn
• Rayline remote controlled searchlight
• Single windshield wiper
• Upholstered helm seat
• Uniden 72 channel VHF/FM marine radio with antenna
• Suunto magnetic compass with lighted binnacle
• Optimus 100 watt amplifier, symphonic compact disc player, Oratron compact disc player

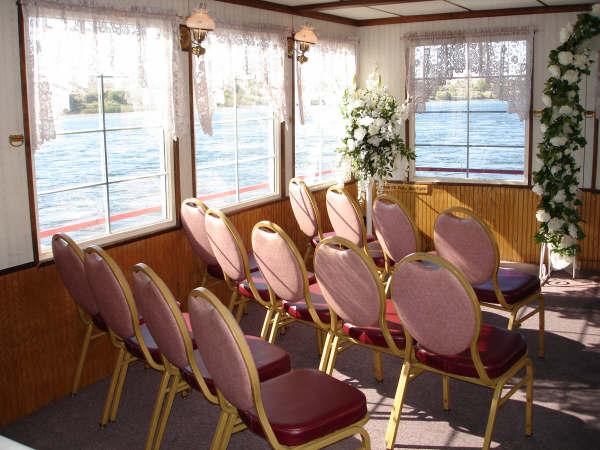

Salons

• Four (8 top) tables with laminated tops and fixed bases
• Two (4 top) tables with laminated tips and fixed bases
• 57 dining chairs

Galley

• BeverageAire refrigerator
• Stainless steel single partition sink

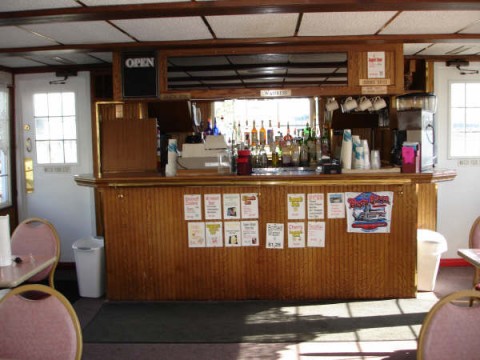

Beverage Bar

Wood base with laminate top

Stainless steel three partition sink

Ceramic hand washing sink

Beverage Aire two door refrigerator

BeveargeAire two door drop in refrigerator

Stainless steel speed rail

Stainless steel ice bin

Amana microwave

Electrical

• One ship service 32 kW generator powered by an NewAge marine diesel single phase generator with fuel filter, seawater strainer and seacock
• Ship to shore power switch
• 50 AMP/ 220 VAC shore outlet
• 50′ 50 AMP/ 220 VAC electrical cord
• 120 VAC/12 VDC lighting
• 120 VAC duplex outlets
• Three 12 VDC enclosed heavy duty batteries
• 115 VAC bilge blowers
• Cruisair water cooled reverse cycle heat pump
• 115 VAC bilge system with manifold. This system also operates the fire system
• Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

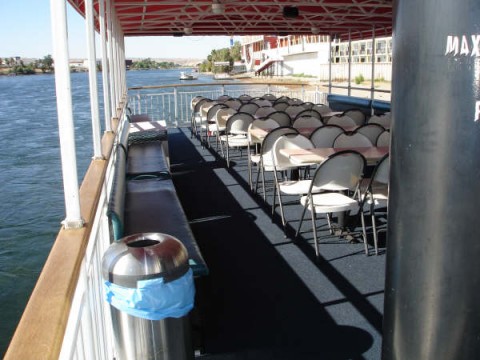

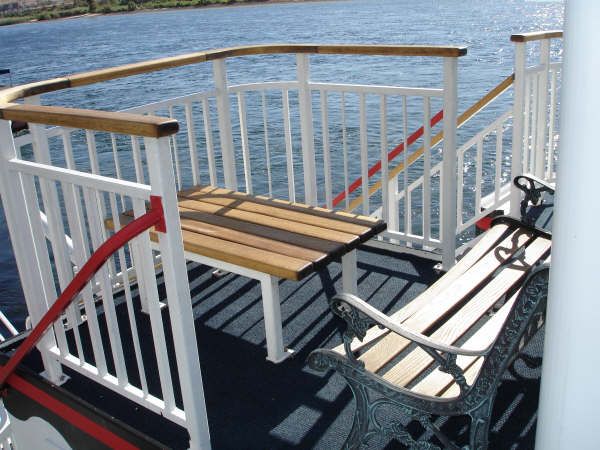

Hull, Superstructure, and Decks

• 7 gauge steel hull
• 2″ x 2″ hull stringers on 16″ centers
• Six watertight compartments formed by five transverse bulkheads
• Anchor locker
• Boarding gates: two forward and two aft
• Six steel kevels
• Deck fittings:
  • Electrical: Port
  • Waste: Port
  • Water: Port
  • Fuel: Port and Star
• A canvas canopy with a steel support

Mechanical Equipment and Engine Details

• Two 6 cylinder turbo charged 5.9 liter 115 HP @ 2,200 RPM Cummins marine diesel engines, fuel filters, seawater strainers with seacocks
• Wet style exhaust silencers through transom

Heads

The Vessel is equipped with two heads. Each contains the following:

• One SeaLand direct drop head
• One sink with an faucet
• Toilet paper dispenser
• Paper towel dispenser

Safety Equipment

• 155 type II adult size personal flotation devices
• 16 type II child size personal flotation devices
• One Jim Buoy 30” life ring with line
• One illuminated float light
• One 20 lb. dry chemical fire extinguisher
• Four 2.5 lb. dry chemical fire extinguishers
• Pyrotechnic distress signals
• Fire Ax
• Two fire stations including: two 3/4” UL approved rubber lined hoses with brass or bronze 5/8” fittings, two brass or bronze nozzles, two brass or bronze 5/8” hose bibs

Finish

• Exterior coating: Paint
• Exterior decks: Carpet (NEW 2009)
• Interior decks:
  • Salon: Carpet
  • Heads: Vinyl
  • Bar: Vinyl
  • Wheelhouse: Carpet
• Headliner: Acoustical tile
• Interior Bulkheads:
  • Salon: Paneling
  • Heads: Paneling

Remarks

The FIESTA QUEEN is in good condition. The deck arrangement is very conducive to sightseeing and charter type cruises.
