Celebration

Accommodations and Layout

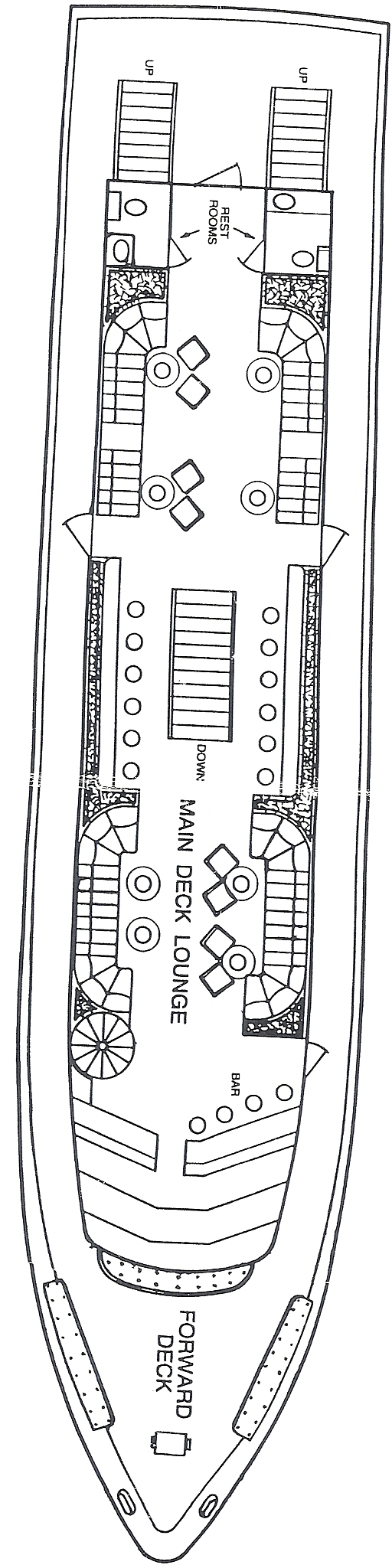

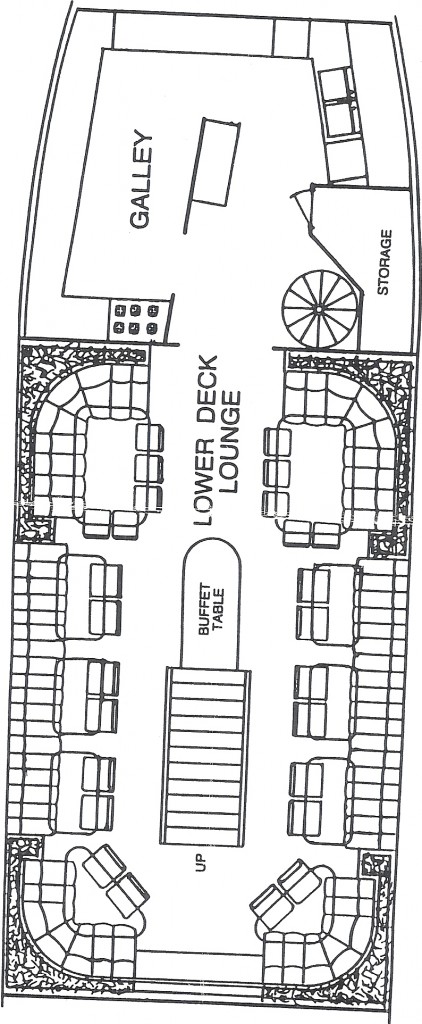

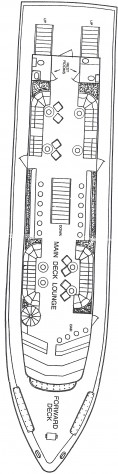

The vessel is arranged with entry doors off the aft deck.  The lower deck offers a dining salon, two heads and the  galley.  The main deck provides dining, lounge seating, beverage bar, two heads and open air space forward and aft.  The upper deck provides open air deck space and the wheelhouse.

Wheelhouse

• Control station with engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
• Hydraulic clutch and throttle controls
• Fog bell
• Kahlenberg dual trumpet horn
• 12” remote controlled searchlight
• Rudder indicators
• Windshield wiper
• Helm seat
• Raytheon Ray 55 VHF/FM marine radio with antenna
• Standard Horizon VHF/FM marine radio with antenna
• Koden depth sounder
• Mariner Pathfinder radar system with dome LCD screen
• Furuno model 805D radar with dome LCD screen
• Wagner Mark IV auto helm
• Wagner compass with lighted binnacle
• Cybernet model CTX 1000
• Intercom system (wheelhouse/bar/galley/engine room)

Galley

• Laminated counter and cabinet
• Garland cook and hold ovens
• Garland roasting oven
• Dishwasher
• Garland six burner stove
• Sharp microwave oven
• Glenco double door refrigerator (6′ x 5′)
• One stainless steel two partition sink
• Ansul fire suppression system

Beverage Bar (Lower Deck)

• Laminate top
• Stainless steel two partition sink
• Two ice bins
• 72” stainless steel speed rail
• Wunder Bar system with two heads

Beverage Bar (01 Deck)

• Laminate top
• Stainless steel two partition sink
• Two ice bins
• 72” stainless steel speed rail
• Wunder Bar system with two heads

Electrical

• Two ship service 40.0 kW Lima generators powered by a John Deere marine diesel 4 cylinder with fuel filter, seawater strainer and seacock (engine hours: port 200, starboard 200 in July 2011)
• Ship to shore power switch
• 100 AMP/ 240 VAC shore power service
• 50’ 100 AMP/ 240 VAC power cord
• 115 VAC exterior and interior perimeter lighting
• 120 VAC/12 VDC lighting
• 120 VAC duplex outlets
• Five 12 VDC 8D enclosed heavy duty batteries
• Perko battery isolation switch
• Automatic 60 amp battery charger
• 40 amp battery charger – wheelhouse
• 75 ton water cooled reverse cycle heat pump system
• 24 VDC manifold bilge system
• Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

Hull, Superstructure and Decks

• Mahogany covered with FRP hull
• Insulated deckhouses
• Five watertight compartments formed by four transverse bulkheads
• Mahogany benches main deck forward
• Boarding gates: two forward and two aft
• Eight 15” kevels
• Deck fittings:
  Electrical: Aft – port/star.
  Waste: Aft – port/star.
  Water: mid – port/star.
  Fuel: m – port/star.

Mechanical Equipment and Engine Details

• Three 8 cylinder turbo charged inner cooled 650 HP Detroit Diesel model 8V92TI marine diesel engines, fuel filters, seawater strainers with seacocks (engine hours:2,000 port, 20,000 center, 2,000 starboard in July 2011)

• Engine room insulation
• Three 36″ bronze propellers
• Two spare propellers
• 3” stainless steel shafts
• Twin Disc MG514C 2:1 reduction gears
• Two 100 gallon hot water heaters
• Bow thruster powered by the center propulsion engine

Heads

The vessel is equipped with four heads and each contains:

• Traveler head
• One sink with an automatic shutoff faucet
• Toilet paper dispenser
• Paper towel dispenser

Safety Equipment

• 155 type I adult size personal flotation devices (stowed in deck boxes)
• 16 type I child size personal flotation devices
• 3 Jim Buoy 22 person buoyant apparatus
• Three 30” life rings one with line
• Five self actuated rescue lights
• Five B-II and One B-I 10 lb. dry chemical fire extinguisher
• Two fixed fire suppressions system in the engine room
• Pyrotechnic distress signals
• Two fire stations including: two 1 1/2” UL approved rubber lined hoses with brass or bronze fittings, two brass or bronze nozzles, two brass or bronze hose bibs. The bilge pump system operates the fire system also
• Fire axe
• Danforth style anchor

Finish

• Exterior coating: AwlGrip coating
• Exterior decks: Teak
• Interior decks:
  Salon: Carpeting
  Heads: Ceramic
  Galley: Altro
  Bar: Laminate
  Wheelhouse: Carpeting
  Headliner: Gage
• Interior Bulkheads:
  Salon: Wood panel
  Heads: Coated
  Galley: Panel

Remarks

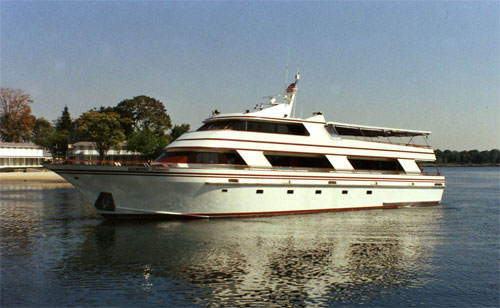

The CELEBRATION is in very good condition. The yacht offers a sleek style and wonderful viewing for passengers.

Exclusions

N/A
