Armonia

Accommodations and Layout

The vessel is arranged with a forward entry door. A storage locker below deck forward that could be converted back to a stateroom. A helm station is forward on starboard with the salon abaft of the lower helm. The galley and beverage bar are fully aft. There are stairs port and starboard between the main and 01 decks. The 01 deck offers open aire seating and the Flying Bridge.

Helmstation (Main Deck)

• Control station with VDO engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
• Morse clutch and throttle controls
• Teleflex hydraulic steering
• Fog bell
• Large dual trumpet horn
• Perko remote controlled searchlight
• Wagner rudder indicator
• Todd Helm seat
• ICOM IC-M45 VHF/FM marine radio with antenna
• Digital depth sounder
• Garmin model 185 GPS Map Sounder
• Ritchie magnetic compass with lighted binnacle

Helmstation (Flying Bridge)

• Control station with VDO engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
• Morse clutch and throttle controls
• Teleflex hydraulic steering
• ICOM IC-M45 VHF/FM marine radio with antenna
• Garmin model GPS 128 global positioning system (GPS)

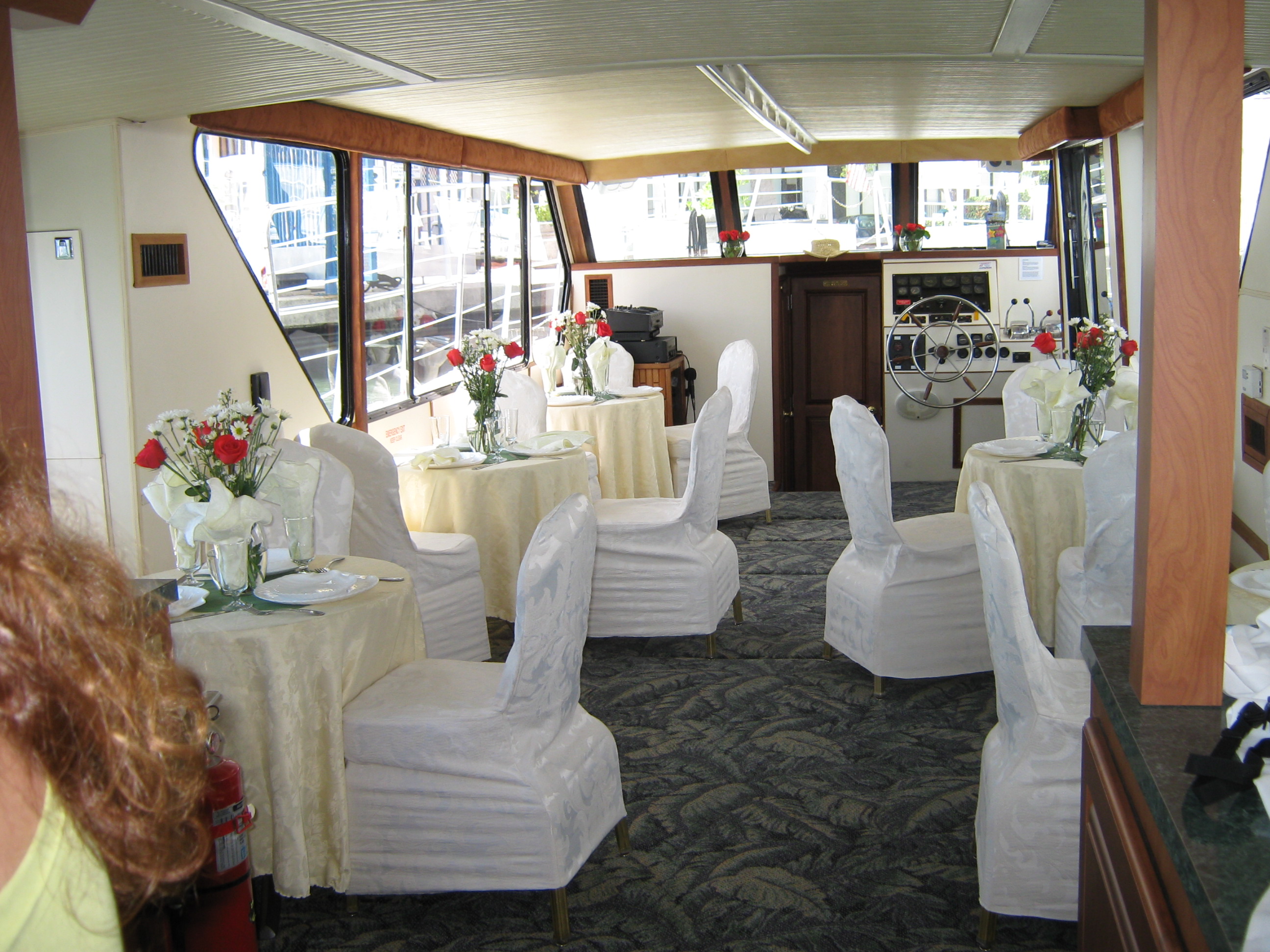

Salon (Main Deck)

• 6 tables (30″ diameter) with laminated tops
• 16 interior dining chairs
• Two buffet stations
• Recessed lighting

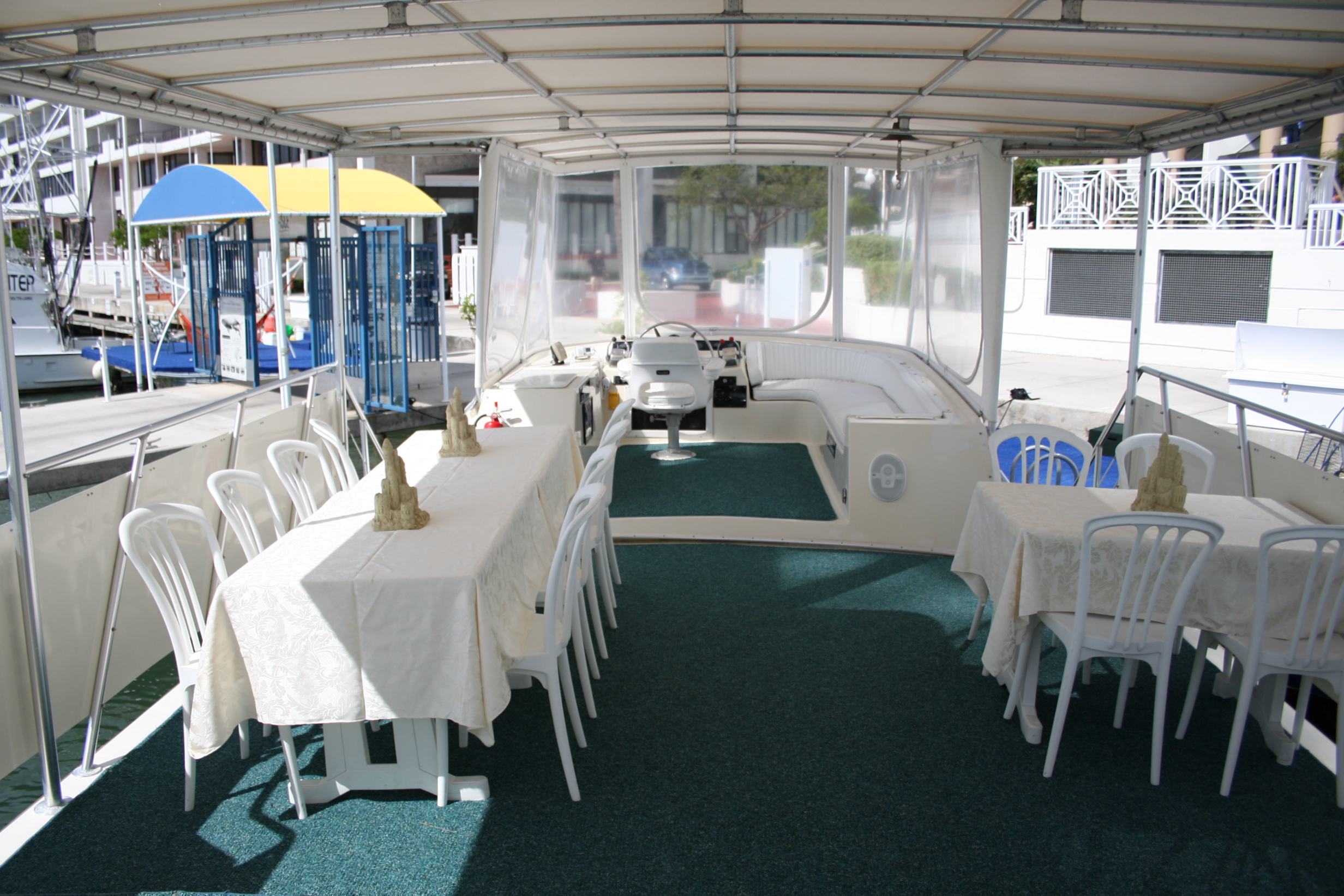

Salon (01 Deck)

• 6 tables (30″ x 40″)
• 12 interior dining chairs

Galley

• Laminated counter
• Mavel Industries model 61 AR refrigerator
• Mavel Industries model 61 FF freezer
• Microwave oven
• RCA model STAV-3870 AM/FM Receiver, JVC compact disc player, Audio 2000 model AKJ 7000 digital Karaoke amplifier, RCA model SCT-530 double cassette player, microphone

Beverage Bar

• Laminate top
• Stainless steel sink
• Stainless steel two partition sink

Electrical

• One ship service 10.0 kW Westerbeke generator powered by a marine diesel 4 cylinder with fuel filter, seawater strainer and seacock (engine hours: 2,500 in April 2011) NEW in 2003
• Ship to shore power switch
• 50 AMP/ 240 VAC shore power service
• 50′ 50 AMP/ 240 VAC power cord
• 115 VAC exterior and interior perimeter lighting
• 120 VAC/12 VDC lighting
• 120 VAC duplex outlets
• Five 12 VDC 8D enclosed heavy duty batteries (NEW 2009)
• Perko battery isolation switch
• C-Charger One series automatic 40 amp battery charger (NEW 2009)
• Whistler model PP 2500 AC inverter
• Marine Air Systems, Inc. three ton water cooled reverse cycle heat pump system (NEW 2009) with SMX electronic controls
• Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

Hull, Superstructure, and Decks

• Fiberglass reinforced plastic hull
• Five watertight compartments formed by four transverse bulkheads
• Boarding gates: two forward
• Six kevels
• Deck fittings:
  • Electrical: Aft port/star.
  • Waste: Aft port/star.
  • Water: mid port/star.
  • Fuel: m port/star

Mechanical Equipment and Engine Details

• Two 8 cylinder 220 HP Crusader model CH 220 marine gasoline engines, fuel filters, seawater strainers with seacocks major overhaul in 2008
• 2.57: 1 transmissions; Borg Warner Velvet Drive (port), Transmission Marine Inc. (starboard)
• Stainless steel propeller shafts
• 24″ x 18 pitch bronze four blade propellers, one spare set
• Seaward 18 gallon hot water heater (NEW 2009)

Heads

The vessel is equipped with a Marine Sanitation Device (MSD), Jabsco model 18590-1000 macerator pump and two heads and each contains:

• Head
• One sink with an automatic shutoff faucet
• Toilet paper dispenser
• Paper towel dispenser

Safety Equipment

• 40 type I adult size personal flotation devices
• 6 type I child size personal flotation devices
• One 30″ life ring one with line
• Pyrotechnic distress signals
• Danforth model S 1600 anchor with approximately 200′ of line and 4′ of stainless steel chain

Finish

• Exterior coating: Coating
• Exterior decks: Non-skid
• Interior decks:
  • Salon: Carpeting
  • Heads: Ceramic
  • Galley: FRP
  • Bar: FRP
  • Wheelhouse: Carpeting
• Headliner: Gage
• Interior Bulkheads:
  • Salon: Wood panel
  • Heads: FRP
  • Galley: Panel

Remarks

The ARMONIA is in very good condition. The yacht offers a sleek style and wonderful viewing for passengers.

Exclusions

N/A
