Island Girl

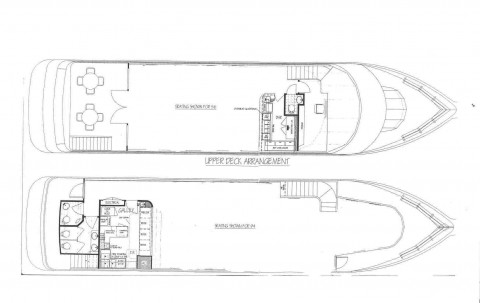

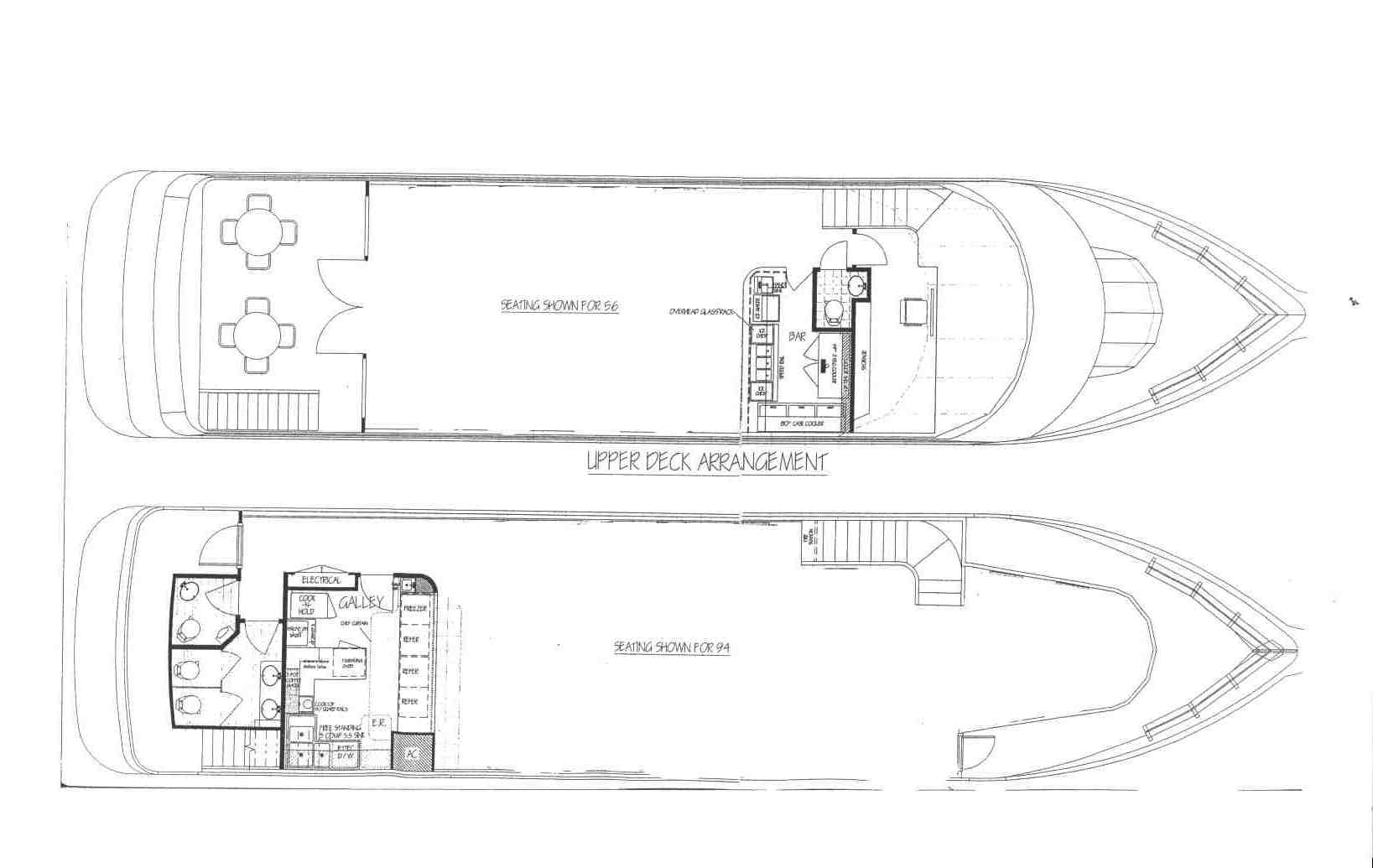

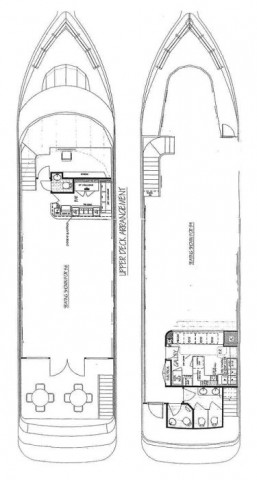

Accommodations and Layout

The vessel is arranged with entry doors off the bow and stern. The main deck is arranged with dining forward with the galley and two heads fully aft. The 01 deck allows for dining, the beverage bar and the wheelhouse. Two companionways provide access between the main and 01 decks, one on port foreword; the second is aft on starboard. The fore deck and 01 decks aft offer open-air seating. This sleek styled vessel is well suited for sightseeing and dining cruise operations

Wheelhouse

• Control station with VDO engine instrumentation (i.e., tachometer, engine oil pressure, ammeters, hour meters)
• Blue Seas bilge alarm system
• Mathers Micro Commander (MMC) electronic dual clutch and throttle controls (propulsion and bow thruster)
• Rule bilge alarms
• Fog bell
• Large dual trumpet horn
• Carlisle & Finch 12” remote controlled searchlight
• Autonav rudder indicator
• Three windshield wipers
• Todd Helm seat
• Two ICOM IC-M402 VHF/FM marine radios with antennas
• Uniden digital depth sounder
• Furuno radar system with dome LCD screen
• Garmin model 185 GPS Map Sounder
• Ritchie model YB-500 magnetic compass with lighted binnacle
• Phone-Com by Newmar intercom system (wheelhouse/bar/galley/engine room)
• Defrost system (220 VAC)
• Watt amplifier, compact disc changer, TOA model 500 Series amplifier A-512A Bose with speakers: salon – main (10), salon – 01 deck (4), wheelhouse (1), foredeck (2), aft deck (2), 01 deck (2)
• Weldex video camera with monitor

Galley

• Laminated counter and cabinet
• Two Wittco cook and hold ovens
• Moffat model Turbo Fan 31 roasting oven
• CMA dishwasher
• Panasonic microwave oven
• Wells two burner stove top
• Three Silver King refrigerators
• Silver King freezer
• One stainless steel three partition sink
• Two Maradyne fans

Beverage Bar

• Laminate top
• Stainless steel sink
• Stainless steel three partition sink with two ice bins
• Silver King B3 model SKDD2 keg cooler
• Silver King model SKBC50 horizontal cooler
• Silver King model SKR27 refrigerator
• Manitowoc model Q130 icemaker
• 72” stainless steel speed rail
• Wunder Bar system with two heads

Electrical

• One ship service 70.0 kW Northern Lights generator powered by a John Deere marine diesel 4 cylinder with fuel filter, seawater strainer and seacock (engine hours: 7,230 in April 2011)
• Ship to shore power switch
• 100 AMP/ 240 VAC shore power service
• 50’ 100 AMP/ 240 VAC power cord
• 115 VAC exterior and interior perimeter lighting
• 120 VAC/12 VDC lighting
• 120 VAC duplex outlets
• Five 12 VDC 8D enclosed heavy duty batteries
• Perko battery isolation switch
• Charles automatic 60 amp battery charger
• C-Charger 5000 series automatic 40 am battery charger – wheelhouse
• Cruisair 280,000 BTU/23 ton water cooled reverse cycle heat pump system with SMX II controls
• 24 VDC manifold bilge system
• Trac Vision satellite system
• Internationally approved navigation lights (i.e., port light, starboard light, stern light, masthead light, anchor light)

Hull, Superstructure and Decks

• 3/16” steel plate hull
• Ten gauge steel plate deckhouse
• Insulated deckhouses
• Five watertight compartments formed by four transverse bulkheads
• 6” split pipe rub rail
• Mahogany benches main deck forward
• Boarding gates: two forward and two aft
• Wooster stair treads
• Stainless steel thresholds
• Eight 15” kevels
• Deck fittings:
  • Electrical: Aft – port/star.
  • Waste: Aft – port/star.
  • Water: mid – port/star.
  • Fuel: mid – port/star.

Mechanical Equipment and Engine Details

• Two 8 cylinder turbo charged after cooled 315 HP Caterpillar 3208TA marine diesel engines, fuel filters, seawater strainers with seacocks (engine hours: 3,330 port, and 3,281starboard in April 2011)
• A new starboard engine was installed in 2005
• Engine room insulation
• Two 24” four blade bronze Dynaquad propellers
• 2” stainless steel shafts
• ZF model IRM 301A2 2.476:1 reduction gears
• Two Rheem 20 gallon hot water heaters
• Bow thruster powered by a Yanmar diesel engine
• Oil drain system (24 VDC) for the propulsion and generator engines
• Water system with accumulator tank and backup system
• Craftsman 6 hp 33 gallon air compressor

Heads

The vessel is equipped with two heads each contains the following:

The vessel is equipped with two heads and each contains:

• Traveler head (one in Men’s and two in Women’s)
• One urinal in the Men’s head
• One sink in Men’s and two sinks in Women’s with an automatic shutoff faucet
• Toilet paper dispenser
• Paper towel dispenser

Safety Equipment

• Exterior coating: Coating (NEW 2009 – Factory)
• Exterior decks: Non-skid
• Interior decks:
  • Salon: Carpeting
  • Heads: Ceramic
  • Galley: Altro
  • Bar: Ceramic
  • Wheelhouse: Carpeting
• Headliner: Gage
• Interior Bulkheads:
  • Salon: Wood panel (cherry style)
  • Heads: Coating
  • Galley: Panel

Finish

• Exterior coating: Coating (NEW 2009 – Factory)
• Exterior decks: Non-skid
• Interior decks:
  • Salon: Carpeting (NEW 2007)
  • Heads: Ceramic
  • Galley: Altro
  • Bar: Ceramic
  • Wheelhouse: Carpeting
• Headliner: Gage
• Interior Bulkheads:
  • Salon: Wood panel (cherry style)
  • Heads: Wall covering
  • Galley: Panel

Remarks

The Island Girl is in very good condition. The yacht offers a sleek style and wonderful viewing for passengers

Exclusions

N/A
